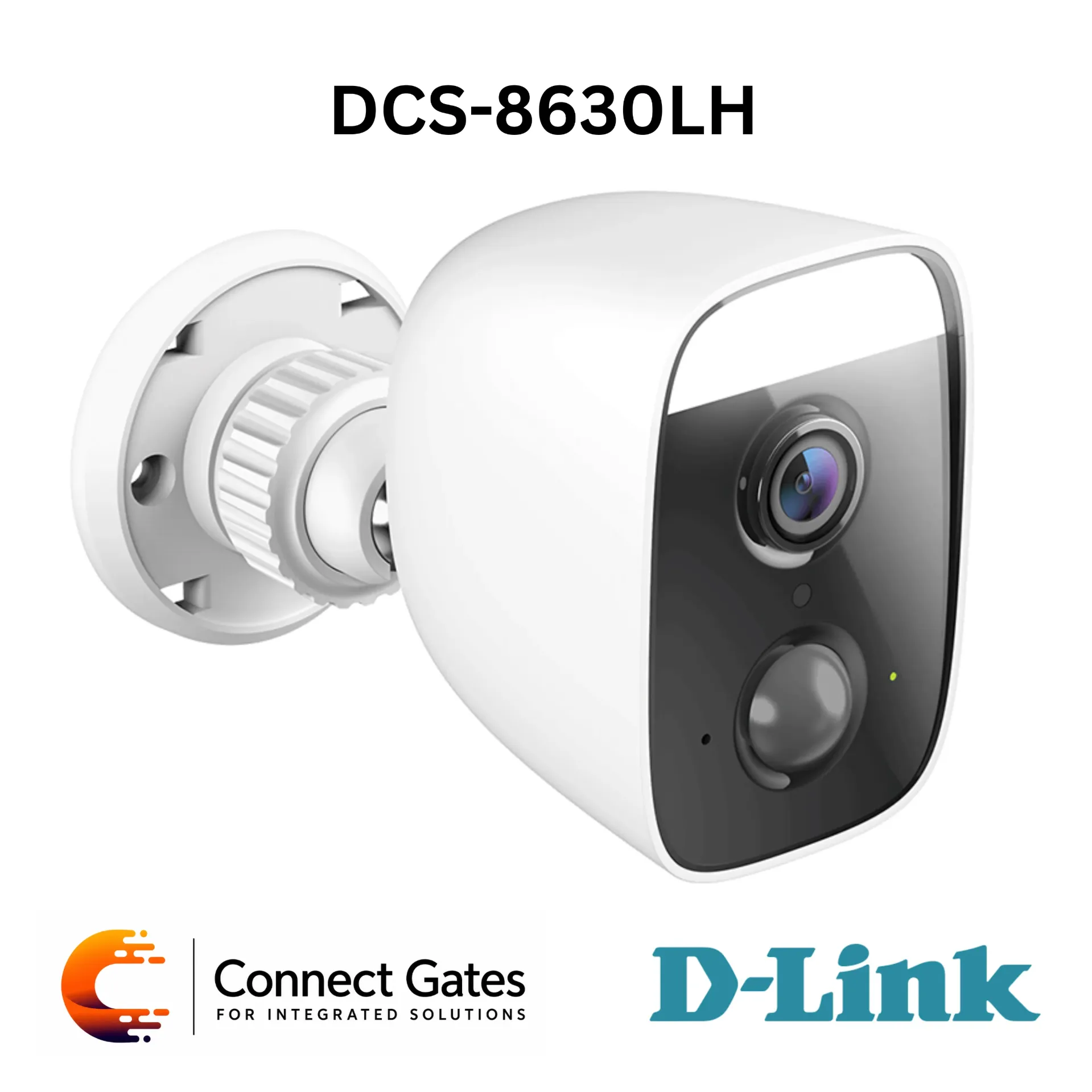

D-Link DCS-8630LH – Full HD Outdoor Wi-Fi Spotlight Camera with 1080p Video, 150° View, Person Detection, Siren, microSD & Smart Home Hub
Overview:
• The D-Link DCS-8630LH is a Full HD Outdoor Wi-Fi Spotlight Camera designed for smart home and outdoor surveillance applications.
• It provides 1080p Full HD video at up to 30 fps with a wide 150° diagonal viewing angle, allowing users to monitor large outdoor areas clearly.
• The camera includes a 400-lumen built-in spotlight and color night vision, providing clearer video in low-light environments up to 7 meters.
• Edge-based person detection helps reduce false alerts by identifying human movement directly on the camera.
• The built-in PIR motion sensor provides more accurate motion detection, while glass break detection identifies the sound of breaking or shattering glass.
• A built-in 100 dB siren helps scare off intruders or alert users when a detection event occurs.
• The DCS-8630LH includes a built-in Smart Home Hub using Zigbee™ technology to connect with compatible mydlink Smart DIY devices.
• IP65 weatherproof housing and wide operating temperature range make it suitable for indoor and outdoor use.
• Users can record to microSD card up to 256GB, mobile device, or mydlink cloud recording service, with ONVIF Profile S support for compatibility with NAS and CMS systems.
Key Features:
• Full HD Outdoor Wi-Fi Spotlight Camera
• 1080p Full HD video at up to 30 fps
• 150° diagonal wide-angle view
• 400-lumen built-in LED spotlight
• Color night vision up to 7 m
• IR night vision up to 7 m / 23 ft
• Edge-based person detection
• PIR motion sensor for accurate motion detection
• Glass break detection AI algorithm
• Built-in 100 dB siren
• Built-in microphone and speaker
• Two-way audio support
• Built-in Smart Home Hub using Zigbee™ technology
• Works with compatible mydlink Smart Home devices
• Amazon Alexa and Google Assistant support
• ONVIF Profile S support
• IPv6 support
• microSD card slot up to 256GB
• Cloud recording support
• SD card recording support
• Push notifications with snapshot
• Rich notifications with quick action buttons
• AES128-encrypted video and audio streaming
• 2.4GHz Wi-Fi connectivity
• Bluetooth Low Energy 4.0
• IP65 weatherproof rating
• Wall or pole mountable design
• Indoor and outdoor use
Technical Specifications:
• Brand: D-Link
• Model: DCS-8630LH
• Product Type: Full HD Outdoor Wi-Fi Spotlight Camera with Built-in Smart Home Hub
• Image Sensor: 1/2.9” Progressive CMOS Sensor
• Video Resolution: 1080p 1920 × 1080 at up to 30 fps
• Video Compression: H.264
• Lens Focal Length: 2.7 mm Fixed Lens
• Aperture: F2.0
• IR Illumination Distance: Up to 7 m / 23 ft
• Color Night Vision: Up to 7 m
• Angle of View: 123.8° Horizontal / 65.4° Vertical / 150° Diagonal
• ICR Filter: Built-in Infrared-Cut Removable Filter Module
• Audio: Built-in Microphone and Speaker
• Audio Format: MPEG-2 AAC LC
• Spotlight: 400 Lumen LED Spotlight
• Siren: Built-in 100 dB Siren
• Motion Detection: PIR Sensor, 1 Zone
• Smart Detection: Person Detection, Glass Breaking Sound Detection
• Image Features: Configurable Image Size, Invert Image, Color Night Vision
• Wireless Connectivity: 802.11n/g
• Wireless Band: 2.4GHz
• Wireless Security: 128-bit Wireless Encryption
• Wireless Mode: 2T2R
• Wireless Data Rate: 150 Mbps PHY using 20MHz / 300 Mbps PHY using 40MHz
• Bluetooth: Bluetooth Low Energy 4.0
• Smart Home Hub: Built-in Zigbee™ Hub for Compatible mydlink Smart DIY Devices
• Storage: microSD Card Slot
• microSD Capacity: Up to 256GB
• Network Protocols: IPv4, IPv6, DHCP/DHCPv6 Client, Bonjour, ONVIF Profile S, RTSP, SRTP, RTP/SRTP, HTTPS
• Event Management: Motion Detection, Person Detection, Sound Detection, Glass Breaking Detection, Cloud Recording, SD Card Recording, Day & Night Mode
• Notifications: Push Notifications with Snapshot, Quick Action Buttons, Live View Button, Call up to 2 Designated Contacts
• Device Management: mydlink App, mydlink Portal for Live View Only
• Voice Assistant Support: Amazon Alexa, Google Assistant
• Environment: Indoor and Outdoor Use
• Weatherproof Rating: IP65
• Mounting: Wall or Pole Mountable
• Power Adapter Input: 100–240V AC, 50/60Hz
• Power Output: 12V DC / 1A
• Cable Length: 3 m
• Power Consumption: Maximum 8W ± 5%
• Dimensions: 126 × 84 × 60 mm
• Weight: 237 g
• Operating Temperature: -25°C to 45°C
• Storage Temperature: -20°C to 70°C
• Operating Humidity: 20% to 90% Non-condensing
• Storage Humidity: 5% to 90% Non-condensing
• Certifications: CE, LVD, RCM, FCC Class B, IC, NCC/BSMI
Applications:
• Outdoor home surveillance
• Villa, apartment entrance, garden, garage, and backyard monitoring
• Small office and shop exterior monitoring
• Smart home security systems
• Night monitoring with spotlight and color night vision
• Person detection and intrusion alerts
• Glass break detection and sound-based alerts
• Local recording to microSD card
• Cloud recording and remote playback
• Smart automation with compatible mydlink Smart DIY sensors
• ONVIF-compatible monitoring through NAS or CMS systems
Connect Gates Recommendation:
• Recommended for users who need an outdoor Wi-Fi camera with Full HD video, spotlight, smart detection, siren, and weatherproof design.
• Suitable for home entrances, villas, garages, gardens, small shops, and outdoor areas requiring active deterrence and smart alerts.
• A strong option when person detection, color night vision, microSD recording, cloud backup, and smart home integration are required in one device.
• For professional multi-camera CCTV projects, long-term recording, or critical security sites, Connect Gates recommends using outdoor PoE IP cameras with NVR recording and structured network infrastructure.
