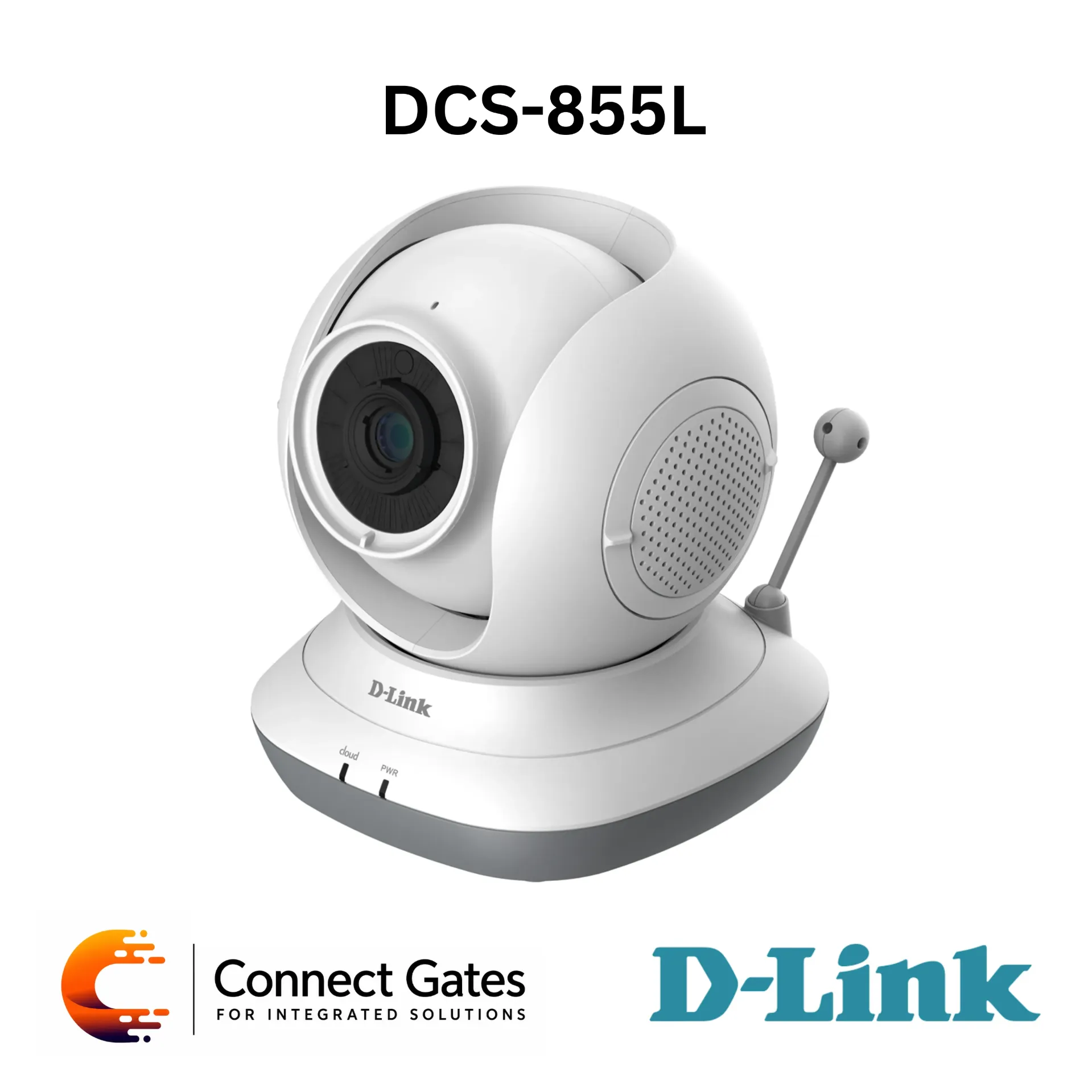

D-Link DCS-855L – Pan/Tilt Baby Camera with 720p HD Video, Night Vision, Temperature Monitoring, Two-Way Audio, Lullabies & microSD Recording
Overview:
• The D-Link DCS-855L is a Pan/Tilt Baby Camera designed to help parents monitor their child anytime and anywhere from a mobile device.
• It provides HD 720p video resolution, giving clear and detailed baby room monitoring.
• Pan and tilt control allows remote movement of the camera to cover a full room or playroom from different angles.
• Built-in infrared night vision automatically supports monitoring in dark rooms with IR illumination up to 5 meters.
• The camera includes sound detection, motion detection, and temperature monitoring with mobile notifications for important events.
• Two-way audio allows parents to listen and respond to the baby remotely.
• The built-in lullaby player includes 5 gentle lullabies to help calm the baby.
• microSDHC recording allows snapshots and video clips to be saved when motion or sound is detected.
• The camera supports direct local monitoring and can also be powered by an external USB battery for portable use during travel.
• The mydlink Baby Camera Monitor app provides simple setup, remote viewing, pan/tilt control, alerts, snapshots, video recording, and playback access.
Key Features:
• Pan/Tilt Baby Camera
• HD 720p video resolution
• 1280 × 720 video at up to 30 fps
• Remote pan and tilt control
• Pan range: -170° to +170°
• Tilt range: -25° to +95°
• Whisper-quiet pan and tilt movement
• Built-in infrared night vision
• IR illumination distance up to 5 m
• 1/4” megapixel CMOS sensor
• Built-in microphone and speaker
• Two-way audio communication
• Temperature monitoring with configurable alert range
• Sound detection with adjustable sensitivity
• Motion detection with adjustable sensitivity
• Mobile notifications for detected events
• Records snapshots and video to microSD when motion or sound is detected
• microSDHC card slot
• H.264 video compression
• JPEG still image support
• Digital zoom support
• 5 built-in gentle lullabies
• 802.11b/g/n wireless connectivity
• WEP / WPA / WPA2 wireless security
• Direct button for local monitoring
• Micro-USB power port
• External USB battery support
• Interchangeable accent color rings and covers
• mydlink Baby Camera Monitor app support
Technical Specifications:
• Brand: D-Link
• Model: DCS-855L
• Product Type: Pan/Tilt Baby Camera
• Image Sensor: 1/4” Megapixel CMOS Sensor
• Video Resolution: 1280 × 720 up to 30 fps / 640 × 352 up to 15 fps
• Video Compression: H.264
• Still Image Format: JPEG
• Lens Focal Length: 3.3 mm
• Aperture: F2.2
• Minimum Object Distance: 200 mm
• Minimum Illumination: 0 lux with IR LED on
• IR Illumination Distance: Up to 5 m
• ICR Filter: Built-in Infrared-Cut Removable Filter Module
• Digital Zoom: Supported
• Angle of View: 70.4° Horizontal / 43° Vertical / 84.6° Diagonal
• Pan Range: -170° to +170°
• Tilt Range: -25° to +95°
• Audio: Built-in Microphone and Speaker
• Audio Support: AAC / ADPCM
• Lullabies: 5 Built-in Lullabies
• Wireless Connectivity: 802.11b/g/n
• Wireless Frequency: 2.4GHz Band
• Wireless Security: WEP / WPA / WPA2
• Wireless Mode: Single-band 1T1R
• Wireless Data Rate: Up to 72.2 Mbps PHY using 20MHz Bandwidth
• Storage: microSDHC Card Slot
• Recommended Storage: SDHC Class 6 or Above
• Maximum Storage Capacity: Up to 32GB
• External Interfaces: Reset Button, Direct Button, Micro-USB Power Port
• LEDs: Power LED, Cloud LED
• Image Features: Configurable Image Size, Time Stamp Overlay
• Baby Monitoring Features: Sound Detection, Motion Detection, Temperature Detection, Mobile Notifications, Two-Way Audio
• Event Recording: Snapshots and Video to microSD when Motion or Sound is Detected
• Mobile App: mydlink Baby Camera Monitor App
• Mobile Compatibility: iPhone, iPad, Android Smartphones and Tablets
• Network Protocols: IPv4, ARP, TCP/IP, UDP, ICMP, DHCP Client, HTTP, HTTPS for Configuration, UPnP Port Forwarding, RTP/RTSP/RTCP
• Security: Administrator Protection, Password Authentication, HTTP Authentication
• Power Input: 5V DC / 2A Power Adapter
• External Battery Support: USB Battery with at Least 2A Output
• Power Consumption: Maximum 7.5W ± 5%
• Dimensions: 114.16 × 109.16 × 131.3 mm
• Weight: 396 g ± 5%
• Operating Temperature: 0°C to 40°C
• Storage Temperature: -20°C to 70°C
• Operating Humidity: 20% to 80% Non-condensing
• Storage Humidity: 5% to 95% Non-condensing
• Certifications: CE, CE LVD, FCC Class B, ICES, C-Tick
Applications:
• Baby room monitoring
• Nursery monitoring
• Playroom monitoring
• Home child monitoring
• Night-time baby monitoring
• Wide-area room monitoring using pan and tilt
• Remote baby viewing through mobile app
• Temperature, sound, and motion alert monitoring
• Two-way communication with baby
• Playing lullabies remotely
• Local event recording to microSDHC card
• Portable monitoring during travel using USB battery power
Connect Gates Recommendation:
• Recommended for parents who need a baby camera with HD video, pan/tilt control, night vision, temperature alerts, and two-way audio.
• Suitable for baby rooms, nurseries, playrooms, apartments, family homes, and portable travel use.
• Good option when room coverage, mobile notifications, lullabies, and microSD event recording are required in one baby monitoring solution.
• For professional CCTV systems, long-term recording, or multi-camera security projects, Connect Gates recommends dedicated IP cameras with NVR recording and structured network infrastructure.
