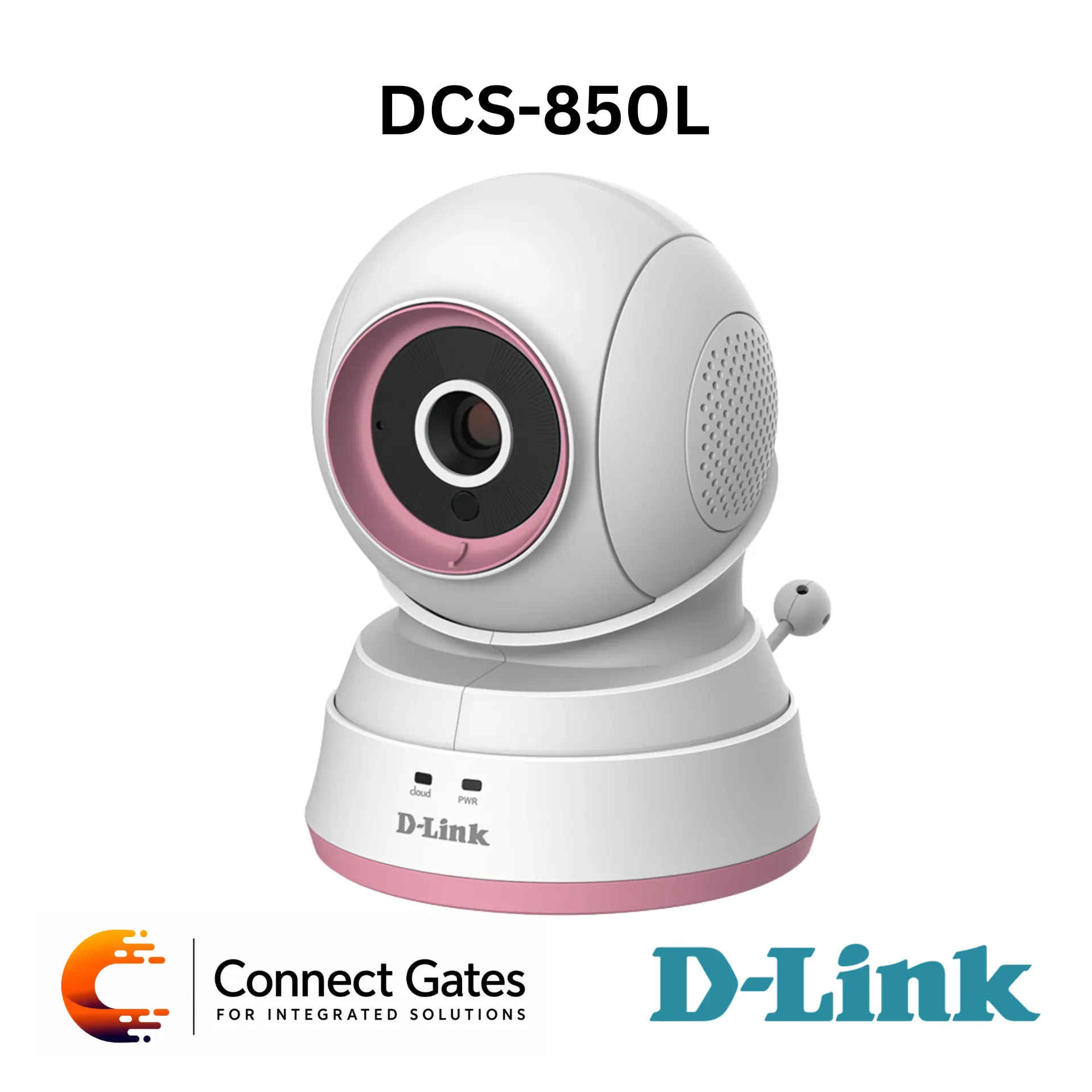

D-Link DCS-850L – Wi-Fi Baby Camera with VGA Video, Pan/Tilt, Night Vision, Temperature Monitoring, Two-Way Audio & Lullabies
Overview:
• The D-Link DCS-850L is a Wi-Fi Baby Camera designed to help parents monitor their child anytime and anywhere from a mobile device or PC.
• It provides VGA video resolution and allows remote viewing through the mydlink Baby Camera Monitor app.
• Pan and tilt control allows the camera to move up, down, left, and right, helping users monitor a wider room or playroom area.
• Built-in infrared night vision automatically supports monitoring in dark rooms, with IR illumination up to 5 meters.
• The camera includes sound detection, motion detection, and temperature monitoring with mobile notifications for important events.
• Two-way audio allows parents to listen and respond to the baby remotely.
• The built-in lullaby player includes 5 gentle lullabies to help calm the baby.
• The camera supports direct local monitoring through its own wireless network, making it suitable for travel or temporary use without Internet access.
• It can also be powered by an external USB battery with at least 2A output for portable monitoring.
• Interchangeable accent color rings and covers allow the camera to better match the baby room design.
Key Features:
• Wi-Fi Baby Camera
• VGA video resolution
• 640 × 480 video resolution
• Remote pan and tilt control
• Pan range: -170° to +170°
• Tilt range: -25° to +95°
• Whisper-quiet pan and tilt functionality
• Built-in infrared night vision
• IR illumination distance up to 5 m
• 1/5” VGA CMOS sensor
• Built-in microphone and speaker
• Two-way audio communication
• Temperature monitoring with configurable alert range
• Sound detection with adjustable sensitivity
• Motion detection with adjustable sensitivity
• Mobile notifications for detected events
• MJPEG video compression
• JPEG still image support
• Time stamp overlay
• Digital zoom support
• 5 built-in gentle lullabies
• 802.11b/g/n wireless connectivity
• WEP / WPA / WPA2 wireless security
• Direct button for local monitoring
• Micro-USB power port
• External USB battery support
• Interchangeable accent color rings and covers
• mydlink Baby Camera Monitor app support
Technical Specifications:
• Brand: D-Link
• Model: DCS-850L
• Product Type: Wi-Fi Baby Camera
• Image Sensor: 1/5” VGA CMOS Sensor
• Video Resolution: 640 × 480
• Video Compression: MJPEG
• Still Image Format: JPEG
• Lens Focal Length: 2.44 mm
• Aperture: F2.4
• Minimum Object Distance: 500 mm
• Minimum Illumination: 0 lux with IR LED on
• IR Illumination Distance: Up to 5 m
• ICR Filter: Built-in Infrared-Cut Removable Filter Module
• Digital Zoom: Supported
• Angle of View: 57° Horizontal / 42° Vertical / 68° Diagonal
• Pan Range: -170° to +170°
• Tilt Range: -25° to +95°
• Audio: Built-in Microphone and Speaker
• Audio Support: PCM
• Lullabies: 5 Built-in Lullabies
• Wireless Connectivity: 802.11b/g/n
• Wireless Frequency: 2.4GHz Band
• Wireless Security: WEP / WPA / WPA2
• Wireless Mode: Single-band 1T1R
• Wireless Data Rate: Up to 72.2 Mbps PHY using 20MHz Bandwidth
• External Interfaces: Reset Button, Direct Button, Micro-USB Power Port
• LEDs: Power LED, Cloud LED
• Image Features: Time Stamp Overlay
• Baby Monitoring Features: Sound Detection, Motion Detection, Temperature Detection, Mobile Notifications, Two-Way Audio
• Detection Sensitivity: Adjustable Motion and Sound Sensitivity
• Temperature Alerts: Configurable Alert Range
• Mobile App: mydlink Baby Camera Monitor App
• Mobile Compatibility: iPhone, iPad, Android Smartphones and Tablets
• Network Protocols: IPv4, ARP, TCP/IP, UDP, ICMP, DHCP Client, HTTP, HTTPS for Configuration, UPnP Port Forwarding
• Security: Administrator Protection, Password Authentication, HTTP Authentication
• Power Input: 5V DC / 1.5A Power Adapter
• External Battery Support: USB Battery with at Least 2A Output
• Power Consumption: Maximum 6W ± 5%
• Dimensions: 124.5 × 98.8 × 130.5 mm
• Weight: 340 g ± 5%
• Operating Temperature: 0°C to 40°C
• Storage Temperature: -20°C to 70°C
• Operating Humidity: 20% to 80% Non-condensing
• Storage Humidity: 5% to 95% Non-condensing
• Certifications: CE, CE LVD, FCC Class B, IC, C-Tick, Photobiological Safety
Applications:
• Baby room monitoring
• Nursery monitoring
• Playroom monitoring
• Home child monitoring
• Night-time baby monitoring
• Wide-area room monitoring using pan and tilt
• Remote baby viewing through mobile app
• Temperature, sound, and motion alert monitoring
• Two-way communication with baby
• Playing lullabies remotely
• Portable monitoring during travel using USB battery power
• Local monitoring without Internet connection
Connect Gates Recommendation:
• Recommended for parents who need a simple baby camera with pan/tilt control, night vision, temperature alerts, two-way audio, and mobile app access.
• Suitable for baby rooms, nurseries, playrooms, apartments, family homes, and portable travel use.
• Good option when mobile notifications, lullabies, direct local monitoring, and flexible camera movement are required.
• For higher resolution, local microSD recording, or professional security monitoring, Connect Gates recommends using a higher Full HD baby camera or dedicated IP cameras with NVR recording.
