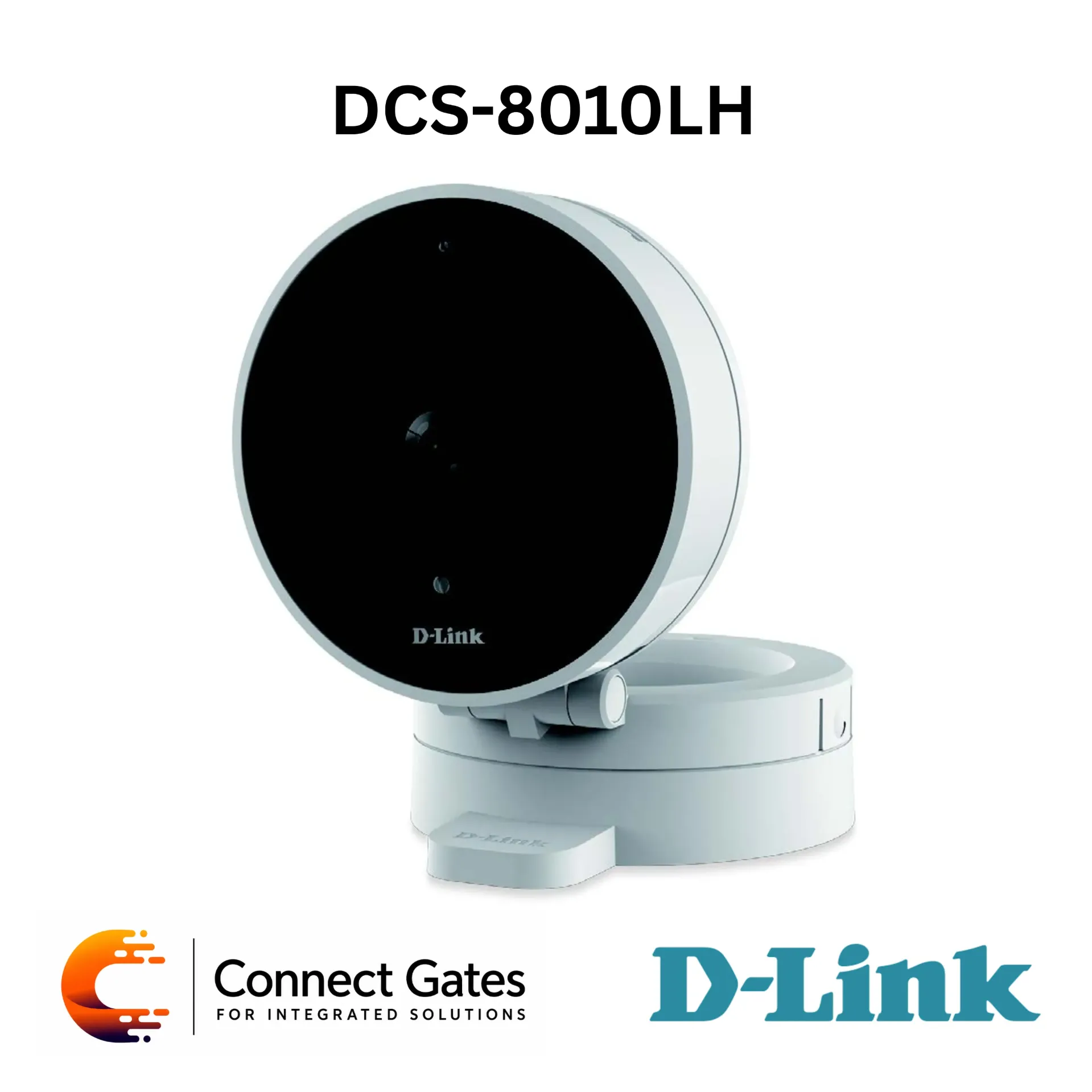

D-Link DCS-8010LH – HD Wi-Fi Camera with 720p Video, 120° Wide View, Night Vision, Cloud Recording & Motion/Sound Detection
Overview:
• The D-Link DCS-8010LH is an indoor HD Wi-Fi Camera designed for home and small office monitoring.
• It provides 720p HD video quality with a 120° wide-angle lens, allowing users to monitor an entire room from a single camera.
• Built-in IR LEDs provide night vision up to 5 meters / 16 feet, enabling 24/7 monitoring in low-light or complete darkness.
• Motion detection and sound level detection can send push notifications to the mydlink™ app and trigger recording to microSD card or cloud storage.
• The camera supports mydlink™ cloud recording, allowing users to back up video clips to the cloud and access recordings remotely.
• Wireless N connectivity with 2T2R Wi-Fi module improves wireless performance and makes installation easier without network cabling.
• The rotatable head and flexible stand design allow easy installation on a desktop, wall, or ceiling.
• AES128-encrypted video and audio streaming helps provide secure remote viewing through the mydlink™ app.
Key Features:
• HD indoor Wi-Fi camera
• 720p HD video resolution
• 1280 × 720 video at up to 30 fps
• 120° diagonal wide-angle viewing
• Built-in IR LEDs for night vision up to 5 m / 16 ft
• Motion detection support
• Sound level detection support
• Push notifications for events
• Cloud recording support through mydlink™
• microSD card slot for local video clip recording
• Built-in microphone
• AES128-encrypted video and audio streaming
• H.264 and MJPEG video compression
• JPEG still image support
• Pinch-to-zoom support through mobile app
• 2.4GHz Wireless N connectivity
• 2T2R Wi-Fi module for improved wireless performance
• Backward compatible with 802.11g/b
• WPA/WPA2 wireless encryption
• Bluetooth 2.1 / 3.0 / 4.0 support
• Configurable image size
• Configurable motion detection windows
• Configurable sound detection level
• mydlink™ app support for iPhone, iPad, Android phone, and tablet
• Micro-USB power input
• Indoor use only
Technical Specifications:
• Brand: D-Link
• Model: DCS-8010LH
• Product Type: HD Wi-Fi Camera
• Image Sensor: 1/4” Megapixel HD Progressive CMOS Sensor
• Video Resolution: 720p 1280 × 720 / VGA 640 × 352 at up to 30 fps
• Video Compression: Simultaneous H.264 / MJPEG
• Still Image Format: JPEG
• Lens Focal Length: 2.55 mm Fixed Lens
• Aperture: F2.2
• Minimum Illumination: 2.2 lux in Color Day Mode with IR LEDs off
• IR Illumination Distance: Up to 5 m / 16 ft
• Angle of View: 96° Horizontal / 53° Vertical / 120° Diagonal
• ICR Filter: Built-in Infrared-Cut Removable Filter Module
• Audio: Built-in Microphone
• Audio Format: MPEG-2 AAC LC
• Wireless Connectivity: 802.11n/g/b
• Wireless Band: 2.4GHz
• Wireless Mode: Single-band 2T2R
• Maximum PHY Rate: 72.2 Mbps using 20MHz bandwidth
• Wireless Security: WPA/WPA2 Encryption
• Bluetooth Support: Bluetooth 2.1 / 3.0 / 4.0
• Storage: microSD Card Slot
• Network Protocols: IPv4, IPv6, ARP, TCP, UDP, ICMP, DHCP Client, DNS Client, RTSP/SRTP, HTTPS, Bonjour
• Event Management: Motion Detection, Sound Detection, Cloud Recording, Manual Snapshots, Manual Video Clips, Push Notifications
• Mobile App Support: mydlink™ App for iPhone, iPad, Android Phone, and Android Tablet
• Ports: Micro-USB Port for Power
• Buttons: Reset Button
• LEDs: LED Indicator
• Environment: Indoor Use Only
• Power Adapter Input: 100–240V AC, 50/60Hz
• Power Output: 5V DC / 1.2A Micro-USB
• Power Consumption: Maximum 5W ± 5%
• Dimensions: 92.1 × 65.9 × 90.7 mm
• Weight: 140 g ± 5% with stand
• Operating Temperature: 0°C to 40°C
• Storage Temperature: -20°C to 70°C
• Operating Humidity: 20% to 80% Non-condensing
• Storage Humidity: 5% to 95% Non-condensing
• Certifications: CE, CE LVD, RCM, FCC Class B, ICES
Applications:
• Indoor home monitoring
• Small office monitoring
• Baby room, living room, reception, or office surveillance
• 720p live viewing from mobile devices
• Motion and sound alert monitoring
• Cloud recording and remote playback
• Local video clip recording to microSD card
• Day and night indoor monitoring
• Desktop, wall, or ceiling installation
• Remote checking of home, family, pets, or office activity
Connect Gates Recommendation:
• Recommended for users who need an indoor Wi-Fi camera with HD video, wide-angle coverage, cloud recording, local microSD recording, and mobile alerts.
• Suitable for homes, apartments, small offices, baby rooms, reception areas, and general indoor monitoring.
• Good choice when easy Wi-Fi installation, mydlink™ app control, motion/sound alerts, and cloud backup are required.
• For professional CCTV systems, outdoor monitoring, multi-camera recording, or long-term storage, Connect Gates recommends using PoE IP cameras with NVR recording and structured network infrastructure.
