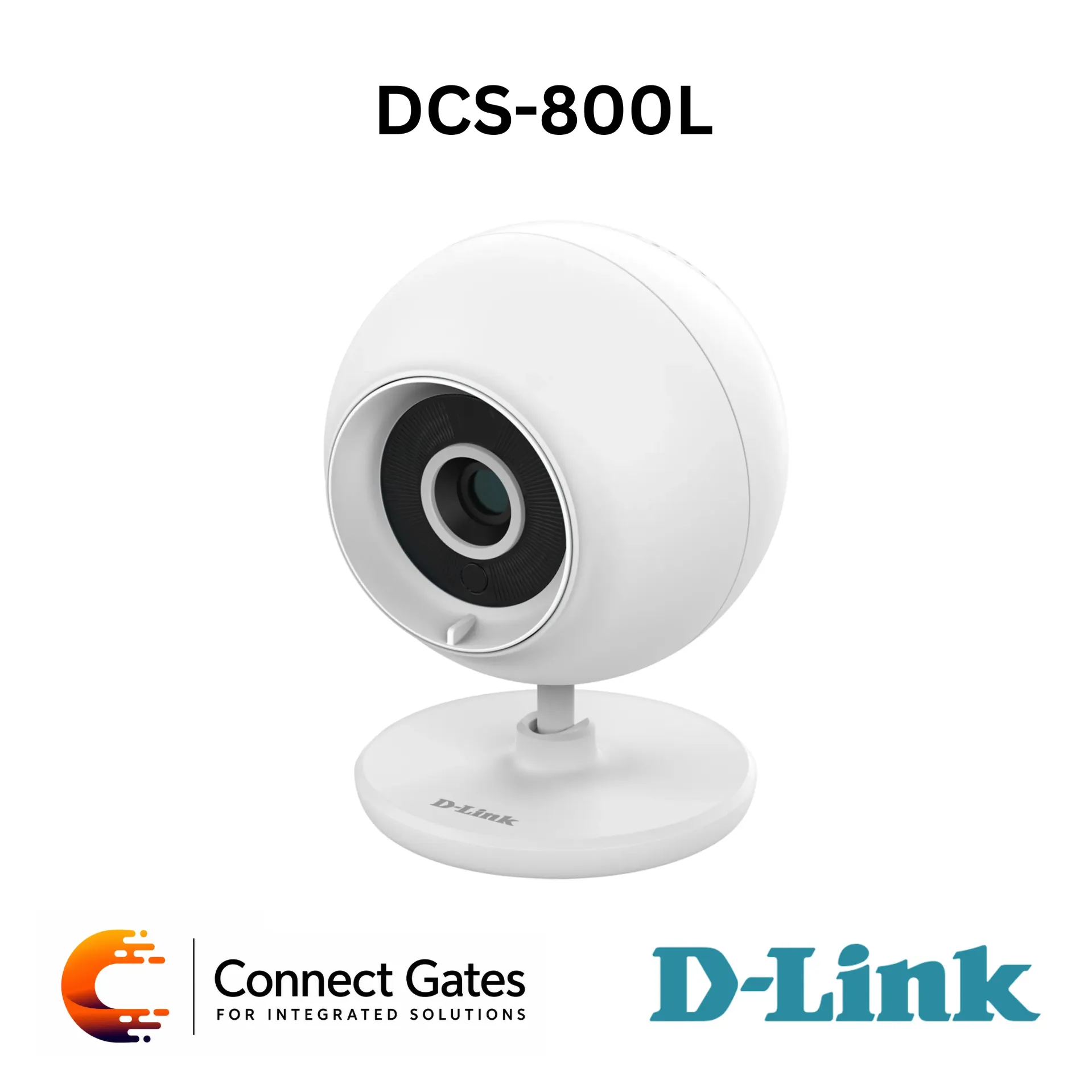

D-Link DCS-800L – EyeOn Baby Monitor Junior with Night Vision, Motion/Sound Detection, Two-Way Audio, Lullabies & mydlink Baby App
Overview:
• The D-Link DCS-800L EyeOn™ Baby Monitor Junior is a portable Wi-Fi baby monitor designed to turn a smartphone, tablet, or computer into an easy-to-use baby monitoring system.
• It allows parents to monitor their baby locally through the camera’s wireless network or remotely over the Internet using the mydlink™ Baby Monitor app and secure mydlink™ web portal.
• Built-in infrared LEDs provide automatic night vision up to 5 meters, allowing clear monitoring in dark rooms.
• Motion detection and sound detection can send instant notifications to the user’s mobile device when the baby moves or cries.
• Two-way audio allows parents to hear the baby and respond with their voice to help calm the child.
• The camera includes 5 built-in lullabies to help soothe the baby to sleep.
• The compact portable design supports external USB battery power, making it suitable for home use, nursery monitoring, travel, or temporary monitoring.
• Switchable accent rings in yellow, blue, and pink allow the camera appearance to match the baby room style.
Key Features:
• EyeOn™ Baby Monitor Junior
• Portable Wi-Fi baby monitoring camera
• Works with smartphone, tablet, or computer
• Remote viewing through secure mydlink™ web portal
• mydlink™ Baby Monitor app support
• 802.11n wireless connectivity
• Automatic night vision with infrared LEDs
• Night vision distance up to 5 m
• Motion detection with adjustable sensitivity
• Sound detection with adjustable sensitivity
• Instant push alerts to mobile device
• Two-way audio communication
• Built-in microphone and speaker
• 5 built-in gentle lullabies
• Digital zoom support
• Configurable image size
• Time stamp overlay
• MJPEG video compression
• JPEG still image support
• Direct connect button for local monitoring
• Micro-USB power port
• Can be powered by external USB battery
• Adjustable angle and pivot
• Interchangeable yellow, blue, and pink accent rings
• Compatible with iPhone, iPad, Android smartphones, and Android tablets
Technical Specifications:
• Brand: D-Link
• Model: DCS-800L
• Product Type: EyeOn™ Baby Monitor Junior
• Image Sensor: 1/5” VGA CMOS Sensor
• Video Resolution: 640 × 480 / 320 × 240
• Video Compression: MJPEG
• Still Image Format: JPEG
• Lens Focal Length: 2.44 mm
• Aperture: F2.4
• Digital Zoom: Supported
• Minimum Illumination: 0 lux with IR LEDs on
• IR Illumination Distance: Up to 5 m
• Angle of View: 57° Horizontal / 42° Vertical / 68° Diagonal
• Camera Adjustment: Adjustable Angle and Pivot
• Audio: Built-in Microphone and Speaker
• Audio Support: PCM
• Two-Way Audio: Supported, Half-Duplex
• Lullabies: 5 Built-in Lullabies
• Wireless Connectivity: 802.11n
• External Interfaces: Reset Button, Direct Button, Micro-USB Power Port
• LEDs: Link / Activity / Power, Cloud / Direct Mode
• Baby Monitoring Features: Motion Detection, Sound Detection, Mobile Notifications, Two-Way Audio
• Detection Sensitivity: Adjustable Motion and Sound Sensitivity
• Mobile App: mydlink™ Baby Monitor App
• iOS Compatibility: iPhone and iPad with iOS 5.1.1 or Higher
• Android Compatibility: Android Smartphones and Tablets with Android 4.1 or Higher
• Network Protocols: IPv4, ARP, TCP/IP, UDP, ICMP, DHCP Client, HTTP, HTTPS for Configuration, UPnP Port Forwarding
• Security: Administrator Protection, Password Authentication, HTTP Authentication
• Power Input: 5V DC / 1.5A via Power Adapter
• External Battery Support: USB Battery with at Least 2A Output
• Power Consumption: Maximum 4.4W
• Dimensions: 70 × 75 × 100 mm
• Weight: 108.2 g
• Operating Temperature: 0°C to 40°C
• Storage Temperature: -20°C to 70°C
• Operating Humidity: 20% to 80% Non-condensing
• Storage Humidity: 5% to 95% Non-condensing
• Certifications: CE, CE LVD, FCC, IC, C-Tick
Applications:
• Baby room monitoring
• Nursery monitoring
• Home child monitoring
• Night-time baby monitoring
• Remote baby viewing through mobile app
• Sound and motion alert monitoring
• Two-way communication with baby
• Playing lullabies remotely
• Portable monitoring during travel
• Temporary baby monitoring using USB battery power
• Local monitoring without Internet connection
Connect Gates Recommendation:
• Recommended for parents who need a simple and portable baby monitor with night vision, sound/motion alerts, two-way audio, and mobile app access.
• Suitable for nurseries, baby rooms, apartments, family homes, and travel use.
• Good option when portability, lullabies, mobile notifications, and direct local monitoring are required.
• For professional security monitoring, long-term recording, or multi-camera CCTV systems, Connect Gates recommends dedicated IP cameras with NVR recording and structured network infrastructure.
