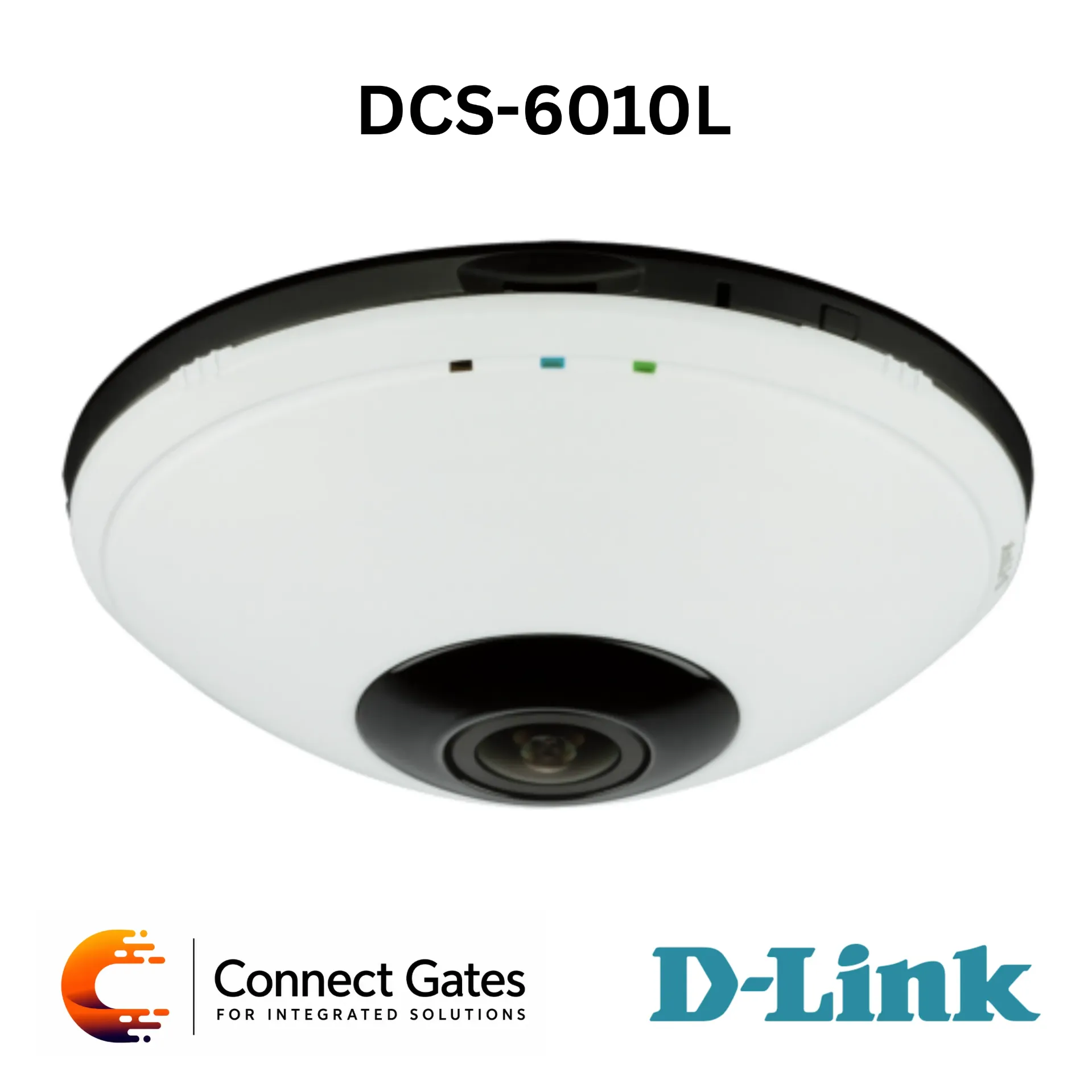

D-Link DCS-6010L – Wireless N 360° Home Network Camera with 2MP Fisheye Lens, 1600 × 1200 Video, Two-Way Audio, microSD & mydlink
Overview:
• The D-Link DCS-6010L is a Wireless N 360° Home Network Camera designed for wide-area indoor surveillance using a single camera.
• It features a 1/3.2” 2 Megapixel progressive CMOS sensor and fixed fisheye lens, allowing 360° ceiling coverage or 180° panoramic wall coverage.
• The camera supports high-resolution video up to 1600 × 1200, making it suitable for monitoring large rooms with detailed image quality.
• Built-in fisheye distortion correction helps improve the viewing experience, while ePTZ allows digital zooming, panning, and area surveying without mechanical movement.
• mydlink support allows users to remotely view and manage the camera through the mydlink website or mobile app for iOS and Android devices.
• The DCS-6010L supports 802.11n wireless connectivity and 10/100 Fast Ethernet for flexible installation.
• Built-in microphone and speaker provide two-way audio communication or alarm broadcasting during events.
• microSD/SDHC card support, Samba client, ONVIF compliance, motion detection, FTP/e-mail event upload, and D-ViewCam support make it suitable for expandable home or small office surveillance.
Key Features:
• Wireless N 360° Home Network Camera
• 1/3.2” 2 Megapixel progressive CMOS sensor
• Fixed fisheye lens for full-area surveillance
• 360° ceiling view or 180° wall panoramic view
• High resolution up to 1600 × 1200
• Fisheye distortion correction
• ePTZ digital viewing support
• 10× digital zoom
• H.264 / MPEG-4 / MJPEG video compression
• H.264 / MPEG-4 multicast streaming
• JPEG still image support
• Simultaneous multi-stream support
• Built-in microphone and speaker
• Two-way audio communication
• 802.11n wireless connectivity
• 10/100BASE-TX Fast Ethernet port
• microSD / SDHC card slot for onboard storage
• Built-in Samba client for NAS saving
• Motion detection support
• Event upload via e-mail or FTP
• Multiple SMTP and FTP server support
• ONVIF compliant
• mydlink cloud remote access
• Zero Configuration setup with compatible mydlink Cloud Router
• D-ViewCam software support up to 32 cameras
Technical Specifications:
• Brand: D-Link
• Model: DCS-6010L
• Product Type: Wireless N 360° Home Network Camera
• Image Sensor: 1/3.2” 2 Megapixel Progressive CMOS Sensor
• Video Resolution: 1600 × 1200 / 1200 × 900 / 800 × 600 / 400 × 300 up to 15 fps
• Video Compression: H.264 / MPEG-4 / MJPEG
• Still Image Format: JPEG
• Lens Type: Fixed Fisheye Lens
• Lens Focal Length: 1.25 mm
• Aperture: F2.0
• Minimum Illumination: 2 lux
• Digital Zoom: 10×
• Angle of View: 180° Horizontal / 180° Vertical / 180° Diagonal
• Image Features: Fisheye Distortion Correction, Configurable Image Size, Quality, Frame Rate, Bit Rate, Brightness, Saturation, Contrast, Sharpness
• Overlay Features: Time Stamp and Text Overlays
• Motion Detection: Configurable Motion Detection Windows
• Audio: Built-in Microphone and Speaker
• Audio Support: G.726 / G.711
• Network Interface: 10/100BASE-TX Fast Ethernet
• Wireless Connectivity: 802.11n
• Storage: microSD / SDHC Card Slot
• Network Protocols: IPv6, IPv4, TCP/IP, UDP, ICMP, DHCP Client, NTP Client, DNS Client, DDNS Client, SMTP Client, FTP Client, HTTP / HTTPS, Samba Client, PPPoE, UPnP Port Forwarding, RTP / RTSP / RTCP, IP Filtering, QoS, CoS, Multicast, IGMP
• ONVIF: Compliant
• Security: Administrator and User Group Protection, Password Authentication, HTTP and RTSP Digest Encryption
• Event Management: Motion Detection, Snapshot/Video Clip Upload via E-mail or FTP, Multiple Event Notifications, Multiple Recording Methods
• Remote Management: Web Browser Configuration, Snapshot/Video Clip Saving to Local Hard Drive or NAS
• Mobile Support: mydlink Mobile App for iOS and Android Devices
• Software Support: D-ViewCam Management Software
• D-ViewCam Capacity: Up to 32 Cameras
• Power Adapter Input: 100–240V AC, 50/60Hz
• Power Output: 5V DC / 1.2A
• Power Consumption: Maximum 3.9W
• Dimensions: 134.2 × 49.8 × 43.9 mm
• Weight: 267 g ± 5%
• Operating Temperature: 0°C to 40°C
• Storage Temperature: -20°C to 70°C
• Operating Humidity: 20% to 80% Non-condensing
• Storage Humidity: 5% to 95% Non-condensing
• Certifications: CE, CE LVD, FCC, C-Tick
Applications:
• Indoor 360° room surveillance
• Home monitoring
• Small office surveillance
• Reception, meeting room, showroom, and open-area monitoring
• Ceiling-mounted full-room monitoring
• Wall-mounted panoramic monitoring
• Wide-area coverage using one camera
• Remote viewing through mydlink
• Local recording using microSD/SDHC card
• NAS recording using Samba client
• Two-way audio communication
• ONVIF-compatible monitoring systems
• Multi-camera monitoring using D-ViewCam software
Connect Gates Recommendation:
• Recommended for indoor areas that need wide 360° or panoramic coverage from a single camera.
• Suitable for homes, offices, receptions, meeting rooms, showrooms, and open indoor spaces where reducing camera count is important.
• Good option when fisheye coverage, two-way audio, microSD recording, NAS saving, ONVIF compatibility, and mydlink remote access are required.
• For professional CCTV projects requiring night vision, outdoor installation, higher frame rate, or long-term centralized recording, Connect Gates recommends using newer PoE fisheye or dome IP cameras with NVR storage.
