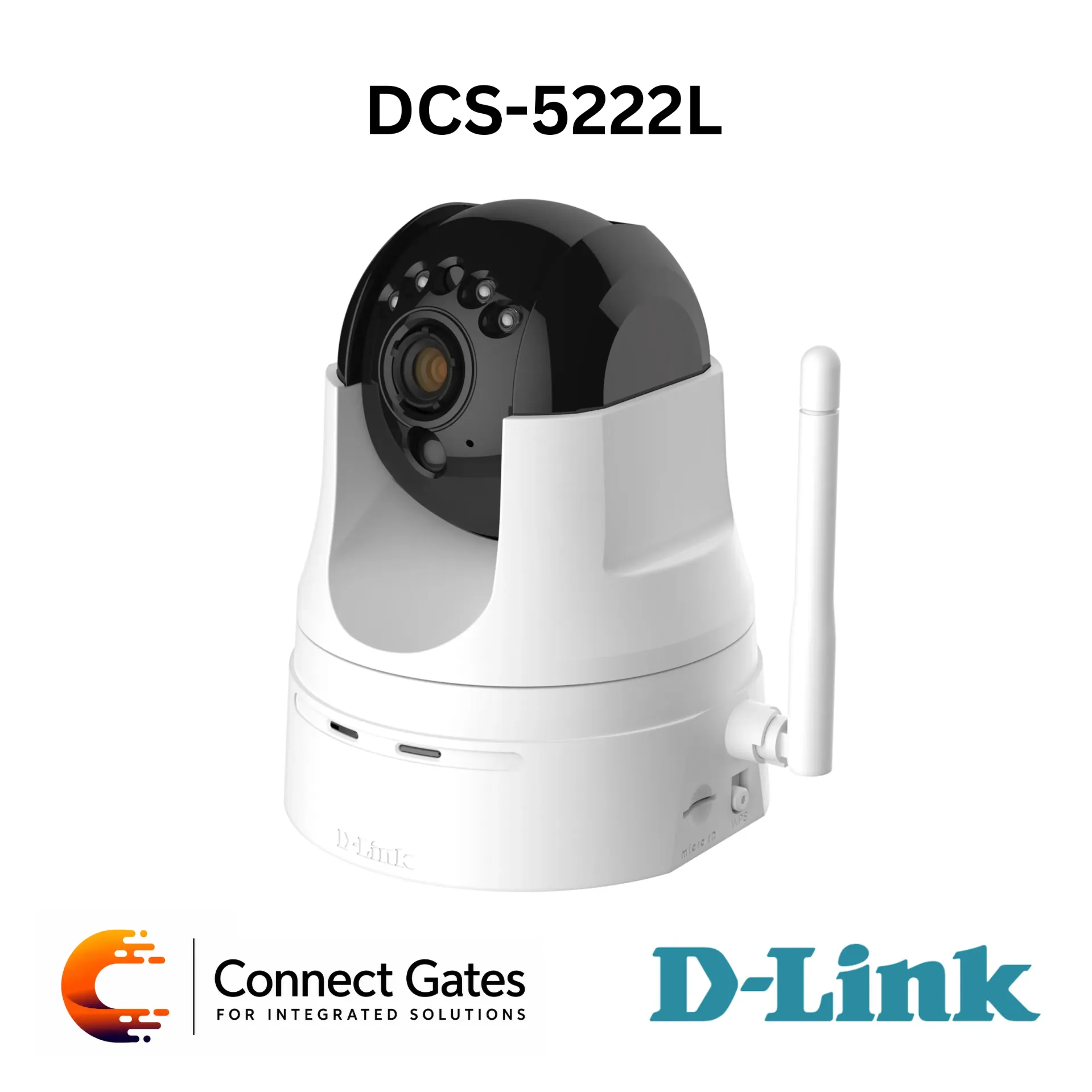

D-Link DCS-5222L – HD Wireless N Pan & Tilt Network Camera with 720p Video, Night Vision, Two-Way Audio, microSD & ONVIF
Overview:
• The D-Link DCS-5222L is an HD Wireless N Pan & Tilt Network Camera designed for indoor surveillance and detailed remote monitoring.
• It provides HD 720p video resolution using a 1/4” megapixel progressive CMOS sensor for clear image quality.
• The pan and tilt function allows the camera to monitor wide areas, while 10× digital zoom helps focus on important details.
• Built-in IR illumination provides night vision up to 8 meters, enabling reliable 24-hour surveillance in low-light or dark environments.
• Wireless N connectivity allows flexible installation without network cabling, while the 10/100 Fast Ethernet port provides wired network support when required.
• The camera includes built-in microphone and speaker for two-way audio communication.
• The built-in microSD/SDHC slot supports direct local recording, while DI/DO and audio input/output ports allow external device integration.
• mydlink support enables remote viewing through the mydlink website or mobile app, while D-ViewCam software supports multi-camera management up to 32 cameras.
Key Features:
• HD Wireless N Pan & Tilt Network Camera
• 1/4” megapixel progressive CMOS sensor
• HD 720p video recording
• Pan and tilt control for wide area coverage
• Pan range: -170° to +170°
• Tilt range: -20° to +100°
• 10× digital zoom
• 32 position presets
• Built-in IR illumination up to 8 m
• Minimum illumination 0 lux with IR LED on
• Built-in microphone and speaker
• Two-way audio support
• H.264 / MJPEG simultaneous video compression
• H.264 multicast streaming
• JPEG still image support
• Wireless N connectivity
• 10/100BASE-TX Fast Ethernet port
• microSD / SDHC card slot for local recording
• Single audio input/output port
• DI/DO port for external device integration
• ONVIF compliant
• IPv4 and IPv6 support
• Motion detection support
• Continuous, scheduled, and motion-based recording
• E-mail and FTP snapshot/video clip upload
• mydlink Lite and mydlink+ mobile app support
• Web browser configuration and remote management
Technical Specifications:
• Brand: D-Link
• Model: DCS-5222L
• Product Type: HD Wireless N Pan & Tilt Network Camera
• Image Sensor: 1/4” Megapixel Progressive CMOS Sensor
• Video Resolution 16:9: 1280 × 720, 800 × 448, 640 × 360, 480 × 272, 320 × 176 at up to 30 fps
• Other Resolutions: 960 × 720, 800 × 592, 640 × 480, 480 × 352, 320 × 240 at up to 30 fps
• Video Compression: H.264 / MJPEG
• Still Image Format: JPEG
• Lens Focal Length: 3.6 mm
• Aperture: F2.0
• Digital Zoom: 10×
• Minimum Illumination: 0 lux with IR LED on
• IR Illumination Distance: Up to 8 m
• Minimum Object Distance: 200 mm
• Exposure Time: 1/7.5 sec. to 1/10,000 sec.
• Angle of View: 57° Horizontal / 34° Vertical / 66° Diagonal
• ICR Filter: Built-in Infrared-Cut Removable Filter Module
• Audio: Built-in Microphone and Speaker
• Audio Compression: G.711 / AAC
• Pan Range: -170° to +170°
• Tilt Range: -20° to +100°
• Manual Pan Speed: 5–80° per second
• Manual Tilt Speed: 5–80° per second
• Position Presets: 32 Points
• Network Interface: IEEE 802.11n Wireless, 10/100BASE-TX Fast Ethernet
• Storage: microSD / SDHC Card Slot
• Recommended Storage: SDHC Class 6 or Above
• Maximum Storage Capacity: Up to 32GB
• External Interfaces: Single Audio Input/Output Port, DI/DO Port
• Network Protocols: IPv6, IPv4, TCP/IP, UDP, ICMP, DHCP Client, NTP Client, DNS Client, DDNS Client, SMTP Client, FTP Client, HTTP/HTTPS, Samba Client, PPPoE, UPnP Port Forwarding, RTP/RTSP/RTCP, IP Filtering, QoS, CoS, Multicast, IGMP, ONVIF
• Security: Administrator and User Group Protection, Password Authentication, HTTP and RTSP Authentication
• Remote Management: Web Browser Configuration, Snapshot/Video Clip Saving to Local Hard Drive
• Surveillance Recording: Continuous Recording, Weekly Schedule Recording, Motion Detection Recording
• Event Upload: E-mail / FTP Snapshot and Video Clip Upload
• Mobile App Support: mydlink Lite and mydlink+ for iPhone, iPad, and Android Devices
• Supported OS: Microsoft Windows 8 / 7 / Vista / XP SP3
• Compatible Browsers: Internet Explorer 8, Firefox 12, Chrome 20, Safari 4, Other Java-enabled Browsers
• Power Input: 5V DC / 2.5A
• Power Consumption: Maximum 10W ± 5%
• Dimensions: 120 × 103.2 × 130 mm
• Weight: 340 g
• Operating Temperature: 0°C to 40°C
• Storage Temperature: -20°C to 70°C
• Operating Humidity: 20% to 80% Non-condensing
• Certifications: CE, FCC Class B, C-Tick, CE LVD
Applications:
• Indoor home surveillance
• Small and medium business monitoring
• Office, reception, corridor, and room monitoring
• Wide-area monitoring using pan and tilt movement
• Day and night indoor surveillance
• Wireless IP camera installations
• Local recording using microSD card
• Two-way audio communication
• External alarm integration using DI/DO
• Remote viewing through mydlink
• ONVIF-compatible monitoring systems
• Multi-camera monitoring using D-ViewCam software
Connect Gates Recommendation:
• Recommended for indoor surveillance projects that need HD video, wireless installation, pan/tilt coverage, night vision, two-way audio, and ONVIF compatibility.
• Suitable for homes, offices, shops, reception areas, corridors, and indoor locations where wide camera movement is required.
• Good option when microSD local recording, mydlink remote access, DI/DO integration, and D-ViewCam management are required.
• For outdoor areas, higher-resolution projects, PoE installations, or long-term centralized recording, Connect Gates recommends using outdoor-rated PoE IP cameras with NVR storage and structured network infrastructure.
