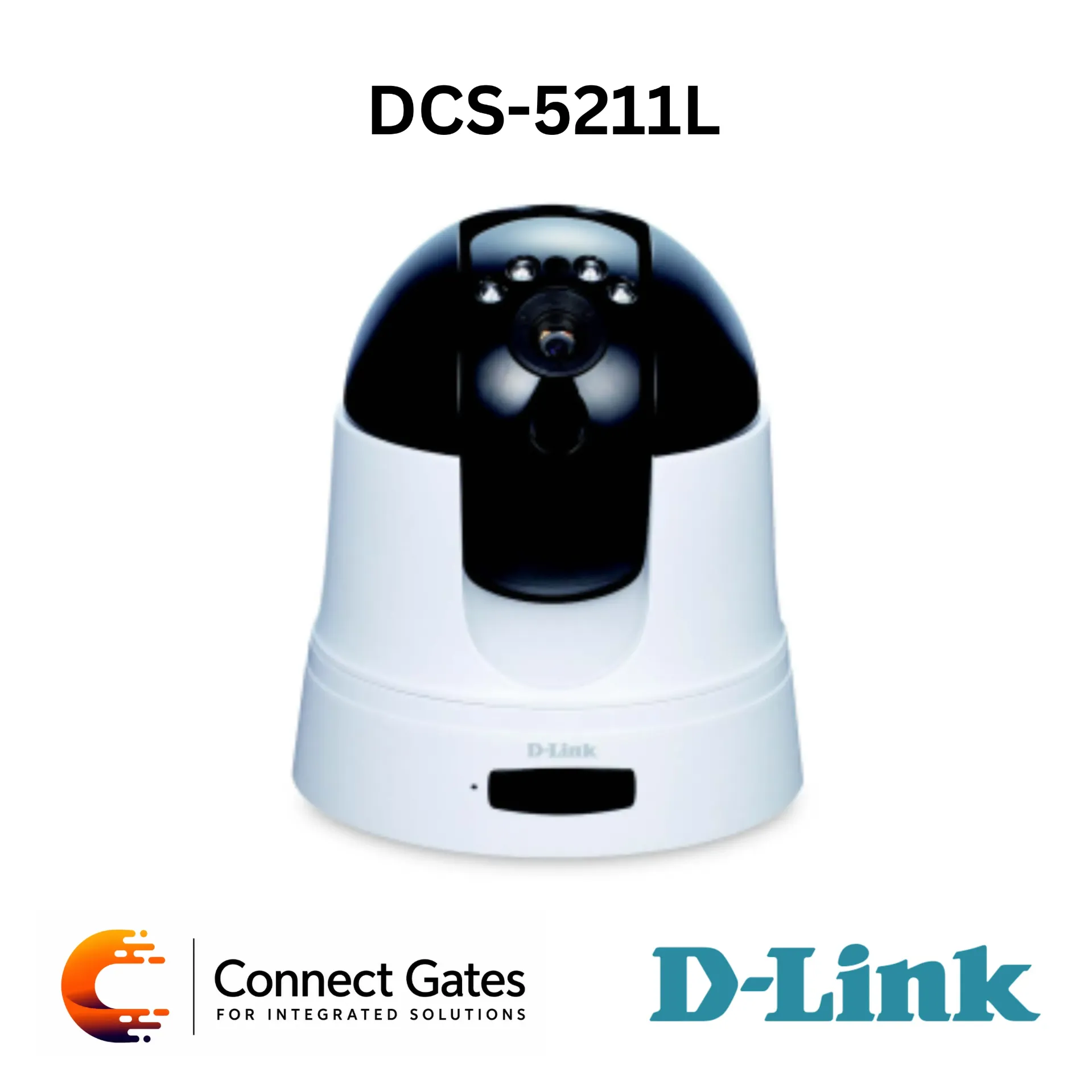

D-Link DCS-5211L – HD PoE Pan & Tilt Network Camera with 720p Video, Night Vision, PIR, Two-Way Audio, microSD & mydlink
Overview:
• The D-Link DCS-5211L is an HD PoE Pan & Tilt Network Camera designed for indoor surveillance and remote monitoring applications.
• It provides megapixel HD 720p video resolution, helping capture important details for home, office, and small to medium business monitoring.
• The pan and tilt function allows the camera to cover a wide area, while 4× digital zoom helps focus on specific areas for more detail.
• Built-in IR illumination provides night vision up to 5 meters, enabling reliable 24-hour surveillance in low-light or dark environments.
• Power over Ethernet support allows power and data to be delivered through a single network cable, reducing installation complexity.
• The camera includes a built-in PIR sensor, microphone, speaker, and microSD card slot for event detection, two-way audio, and local recording.
• mydlink support enables easy setup and remote viewing through the mydlink website or mobile app for iOS and Android devices.
• D-ViewCam software support allows centralized management of up to 32 cameras for multi-camera surveillance systems.
Key Features:
• HD PoE Pan & Tilt Network Camera
• Megapixel HD 720p video resolution
• Built-in IR LEDs for night vision up to 5 m
• Power over Ethernet support
• Pan and tilt control for wide area monitoring
• Pan range: -170° to +170°
• Tilt range: -25° to +90°
• 4× digital zoom
• 10 preset positions
• Built-in PIR motion sensor
• Built-in microphone and speaker
• Two-way audio support
• Built-in microSD card slot
• H.264 / MPEG-4 / MJPEG video compression
• H.264 / MPEG-4 multicast streaming
• JPEG still image support
• Motion detection support
• Privacy Mode support
• Three configurable privacy mask zones
• Continuous, scheduled, or motion-based recording
• E-mail and FTP snapshot/video clip upload
• Web browser remote configuration
• mydlink website and mobile app support
• D-ViewCam software support up to 32 cameras
Technical Specifications:
• Brand: D-Link
• Model: DCS-5211L
• Product Type: HD PoE Pan & Tilt Network Camera
• Image Sensor: 1/4” Megapixel Progressive CMOS Sensor
• Video Resolution: 1280 × 720 / 640 × 352 / 320 × 176 / 160 × 80 at up to 30 fps
• Video Compression: H.264 / MPEG-4 / MJPEG
• Still Image Format: JPEG
• Lens Focal Length: 4.57 mm Fixed Lens
• Aperture: F1.9
• Minimum Illumination: 0 lux with IR LED on
• IR Illumination Distance: Up to 5 m
• Angle of View: 45.7° Horizontal / 29.5° Vertical / 52.9° Diagonal
• ICR Filter: Built-in Infrared-Cut Removable Filter Module
• PIR Sensor: Built-in Passive Infrared Sensor
• Audio: Built-in Microphone and Speaker
• Audio Compression: ADPCM / PCM
• Pan Range: -170° to +170°
• Tilt Range: -25° to +90°
• Digital Zoom: 4×
• Manual Pan Speed: 1–10
• Manual Tilt Speed: 1–10
• Preset Positions: 10 Points
• Video Features: Configurable Image Size, Quality, Frame Rate, Bit Rate, Time Stamp, Text Overlays, Motion Detection Windows, Shutter Speed, Brightness, Saturation, Contrast, Mirror, Flip
• Privacy Mask: 3 Configurable Privacy Mask Zones
• Storage: microSD Card Slot
• Network Protocols: IPv4, ARP, TCP, UDP, ICMP, DHCP Client, NTP Client, DNS Client, DDNS Client, SMTP Client, FTP Client, HTTP Server, PPPoE, RTP, RTSP, RTCP, 3GPP
• Security: Administrator and User Group Protection, Password Authentication, HTTP and RTSP Digest Encryption
• Remote Management: Web Browser Configuration, Snapshot/Video Clip Saving to Local Hard Drive
• Recording Methods: Continuous Recording, Weekly Schedule Recording, Motion Detection Recording
• Event Upload: E-mail / FTP Snapshot and Video Clip Upload
• Mobile Support: mydlink App for iOS and Android, 3GPP Playback Devices
• Software Support: D-ViewCam IP Video Management Software
• D-ViewCam Capacity: Up to 32 Cameras
• Power Input: 12V DC / 1.25A
• Power Consumption: Maximum 9W
• Dimensions: 114 × 114 × 125 mm
• Weight: 540 g
• Operating Temperature: 0°C to 40°C
• Storage Temperature: -20°C to 70°C
• Operating Humidity: 20% to 80% Non-condensing
• Certifications: FCC Class B, CE, CE LVD, C-Tick
• Package Contents: DCS-5211L Camera, External Power Adapter, CAT5 Ethernet Cable, Quick Installation Guide, Remote Control, Master CD, Camera Base and Mounting Kit
Applications:
• Indoor business surveillance
• Small and medium business monitoring
• Office, reception, corridor, and room monitoring
• Wide-area monitoring using pan and tilt movement
• Day and night indoor surveillance
• PoE-based network camera installations
• PIR-based motion detection
• Local recording using microSD card
• Two-way audio communication
• Remote viewing through mydlink
• Multi-camera monitoring using D-ViewCam software
• Event-based recording and alert systems
Connect Gates Recommendation:
• Recommended for indoor surveillance projects that need HD video, PoE installation, pan/tilt coverage, PIR detection, and two-way audio.
• Suitable for offices, shops, reception areas, corridors, and small to medium business monitoring.
• Good option when local microSD recording, mydlink remote access, and D-ViewCam multi-camera management are required.
• For outdoor areas, higher-resolution projects, or long-term centralized recording, Connect Gates recommends using outdoor-rated PoE IP cameras with NVR storage and structured network infrastructure.
