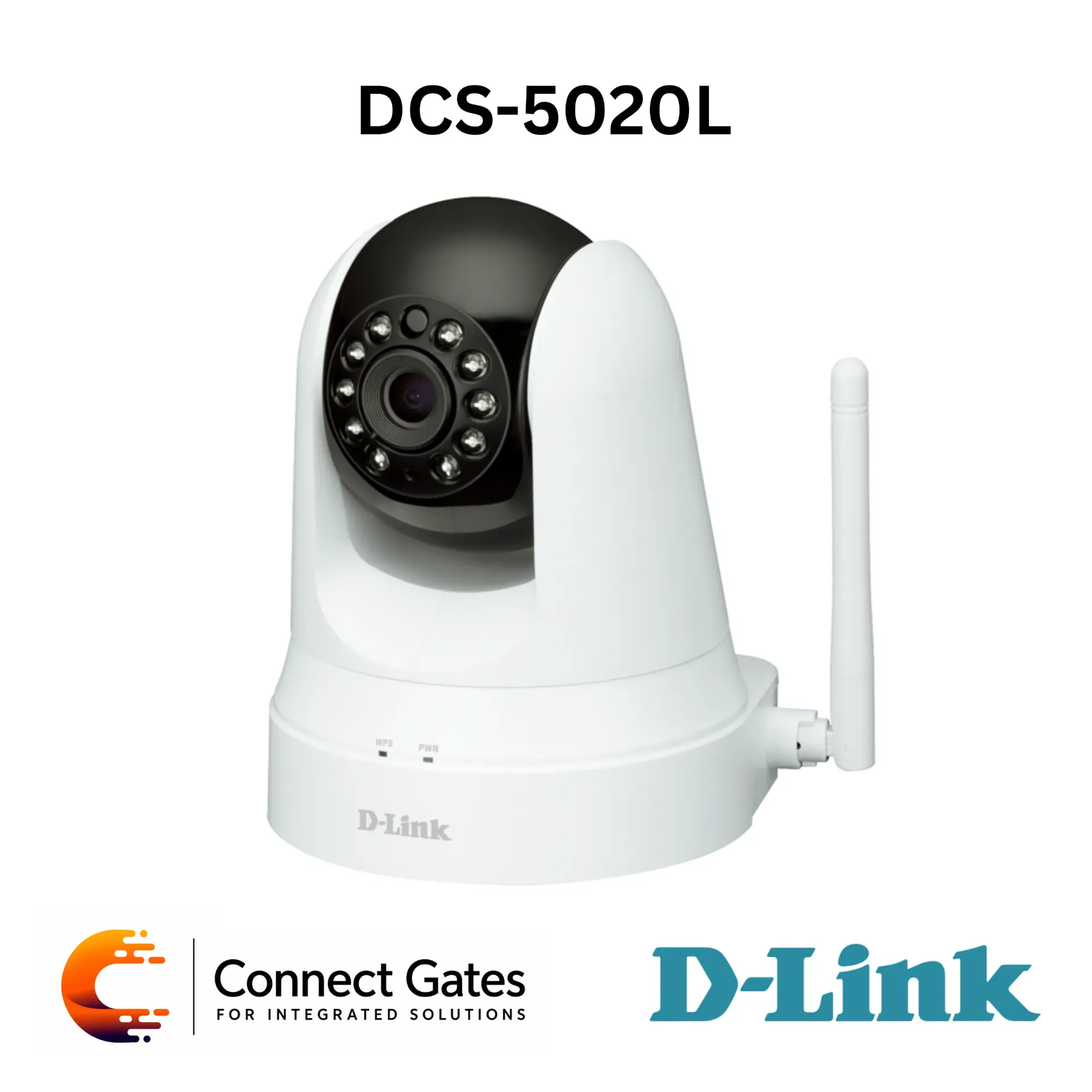

D-Link DCS-5020L – Wireless N Day & Night Pan/Tilt Cloud Camera with Night Vision, Motion/Sound Detection, Extender Mode & mydlink
Overview:
• The D-Link DCS-5020L is a Wireless N Day & Night Pan/Tilt Cloud Camera designed for home and small office monitoring.
• It provides flexible pan and tilt movement to monitor large areas from different angles.
• Built-in IR LEDs provide night vision up to 8 meters / 26 feet, enabling 24/7 monitoring in low-light or complete darkness.
• The camera supports motion detection and sound level detection, with event notifications and snapshot/video clip upload via e-mail or FTP.
• Wireless N connectivity allows easy wireless installation, while the built-in Extender Mode helps expand existing Wi-Fi coverage.
• mydlink™ cloud support allows users to view live video remotely through the mydlink website or mobile app from iOS and Android devices.
• D-ViewCam software support enables centralized monitoring and management of up to 32 cameras with scheduled, motion-triggered, or manual recording options.
Key Features:
• Wireless N Day & Night Pan/Tilt Cloud Camera
• Pan and tilt control for wide area coverage
• Pan range: -170° to +170° / total 340°
• Tilt range: -25° to +95° / total 120°
• Angular velocity: 16° per second
• Built-in IR LEDs for night vision up to 8 m / 26 ft
• 1/5” VGA progressive CMOS sensor
• Real-time H.264 and MJPEG video compression
• JPEG still image support
• Motion detection support
• Sound level detection support
• E-mail and FTP event notification support
• Built-in microphone
• 4× digital zoom
• Preset position support
• 10/100BASE-TX Fast Ethernet port
• 802.11n wireless connectivity
• 2.4GHz wireless frequency band
• Extender Mode to expand Wi-Fi coverage
• WPS support for simple secure wireless setup
• Zero Configuration setup with compatible D-Link cloud router
• mydlink Lite and mydlink+ app support
• D-ViewCam software support up to 32 cameras
• Web browser configuration and remote management
Technical Specifications:
• Brand: D-Link
• Model: DCS-5020L
• Product Type: Wireless N Day & Night Pan/Tilt Cloud Camera
• Image Sensor: 1/5” VGA Progressive CMOS Sensor
• Video Resolution: 640 × 480 / 320 × 240 / 160 × 112 at up to 30 fps
• Video Compression: Simultaneous H.264 / MJPEG
• Still Image Format: JPEG
• Lens Focal Length: 2.2 mm Fixed Lens
• Aperture: F2.0
• Digital Zoom: 4×
• Minimum Illumination: 0 lux with IR LEDs on
• IR Illumination Distance: Up to 8 m / 26 ft
• Angle of View: 66.22° Horizontal / 49.08° Vertical / 77.04° Diagonal
• Exposure Time: 1/15 to 1/15,000 sec.
• ICR Filter: Built-in Infrared-Cut Removable Filter Module
• Audio: Built-in Microphone
• Audio Compression: PCM
• Network Interface: 10/100BASE-TX Ethernet Port
• Wireless Connectivity: 802.11n
• Wireless Frequency Range: 2.4GHz to 2.4835GHz
• Wireless Output Power: 18.6dBm EIRP
• Extender Mode: Supported
• Pan Range: -170° to +170° / Total 340°
• Tilt Range: -25° to +95° / Total 120°
• Pan/Tilt Angular Velocity: 16° per second
• Step Setting: Pan/Tilt 1°, 2°, 3°, 4°, 5° default, 10°, 15°, 20°, 25°, 30° per click
• Network Protocols: IPv4, ARP, TCP, UDP, ICMP, DHCP Client, NTP Client, DNS Client, DDNS Client, SMTP Client, FTP Client, HTTP Server, PPPoE, UPnP Port Forwarding, LLTD
• Security: Password Authentication, HTTP Digest Encryption
• Event Management: Motion Detection, Sound Level Detection, Snapshot/Video Clip Upload via E-mail SMTP or FTP
• Remote Management: Web Browser Configuration
• Mobile App Support: mydlink Lite and mydlink+ for iOS and Android
• Software Support: D-ViewCam Management Software
• D-ViewCam Capacity: Up to 32 Cameras
• Buttons: WPS Button, Reset Button
• LEDs: WPS LED, Power/Link LED
• Power Input: 12V DC / 1A
• Power Consumption: 8.64W
• Dimensions Camera Only: 102.35 × 101.27 × 133.6 mm
• Dimensions with Mounting Bracket: 102.35 × 101.27 × 230 mm
• Weight: Device 292.4 g / Stand 60.8 g
• Operating Temperature: 0°C to 40°C
• Storage Temperature: -25°C to 70°C
• Operating Humidity: 20% to 85% Non-condensing
• Storage Humidity: 5% to 95% Non-condensing
• Certifications: CE, CE LVD, FCC, C-Tick
Applications:
• Home indoor monitoring
• Small office surveillance
• Baby room, living room, reception, or office monitoring
• Wide-area monitoring using pan and tilt movement
• Day and night indoor surveillance
• Motion and sound alert monitoring
• Remote viewing through mydlink
• Wi-Fi coverage extension using Extender Mode
• Multi-camera monitoring using D-ViewCam software
• Event-based recording and notification systems
Connect Gates Recommendation:
• Recommended for users who need an indoor Wi-Fi camera with pan/tilt control, night vision, motion/sound alerts, and mydlink remote access.
• Suitable for homes, apartments, small offices, baby rooms, reception areas, and indoor locations that require wide monitoring coverage from one camera.
• Good option when Extender Mode is needed to improve Wi-Fi coverage while using the camera for monitoring.
• For higher resolution, professional recording, outdoor use, or multi-camera CCTV projects, Connect Gates recommends using newer Full HD IP cameras with NVR recording and structured network infrastructure
