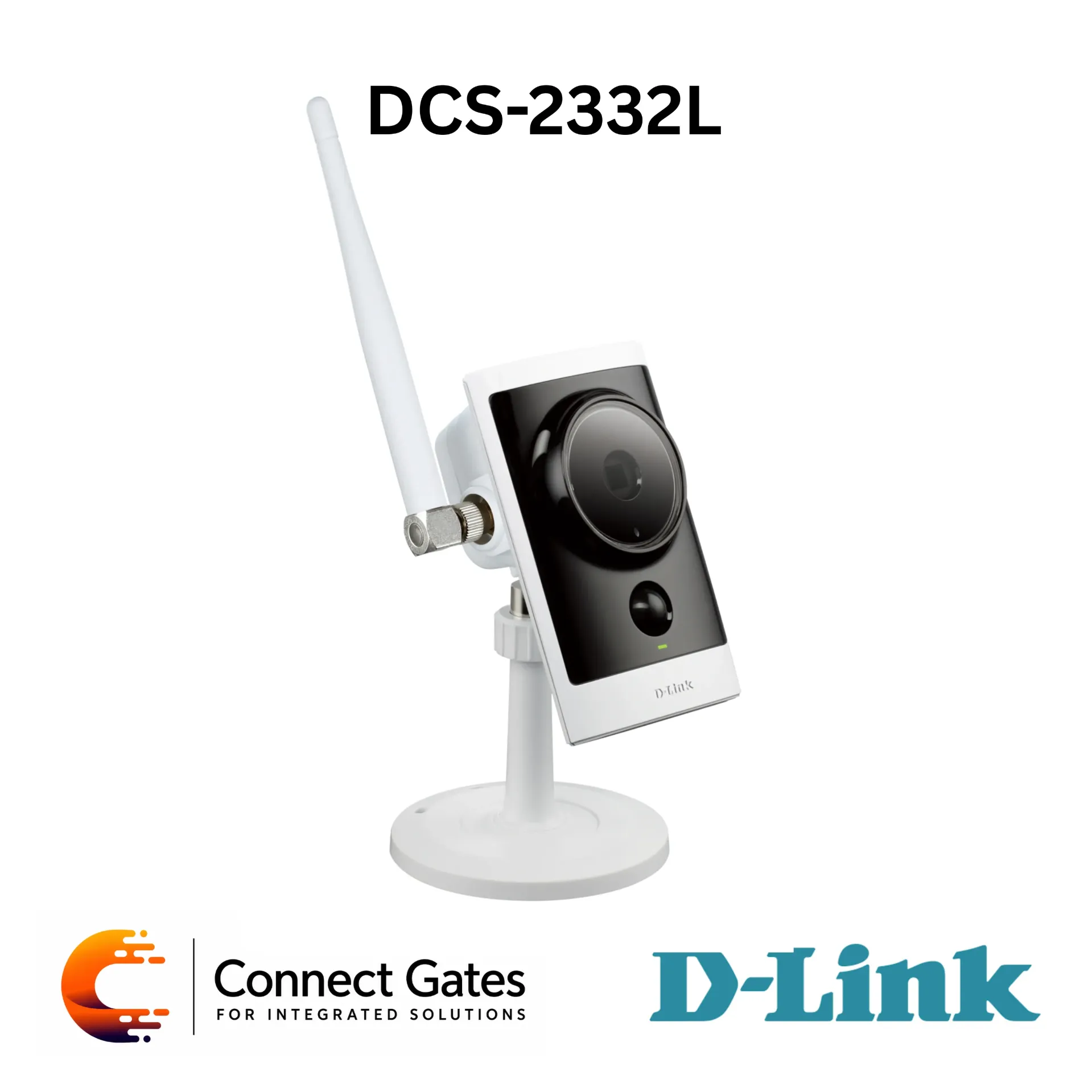

D-Link DCS-2332L – Outdoor HD Wireless Day/Night Network Cloud Camera with 720p Video, IP65 Housing, PIR, microSD & mydlink
Overview:
• The D-Link DCS-2332L is an Outdoor HD Wireless Day/Night Network Cloud Camera designed for outdoor home and small business surveillance.
• It provides HD video resolution up to 1280 × 720 at up to 30 fps, delivering clear image quality for outdoor monitoring.
• The IP65 weatherproof housing protects the camera against dust and water contact, making it suitable for outdoor installation.
• Built-in IR illumination provides night vision up to 5 meters / 15 feet, allowing 24/7 monitoring in low-light or complete darkness.
• The built-in PIR sensor supports accurate motion detection and can trigger instant e-mail alerts and auto-recording.
• mydlink mobile app support allows remote viewing from iOS and Android devices over Wi-Fi, 3G, or 4G connections.
• The camera includes a built-in microSD card slot for direct video recording, with additional support for NAS saving and D-ViewCam management up to 32 cameras.
Key Features:
• Outdoor HD Wireless Day/Night Network Cloud Camera
• 1/4” megapixel progressive CMOS sensor
• HD 720p video recording up to 30 fps
• IP65 weatherproof outdoor housing
• Built-in IR illumination up to 5 m / 15 ft
• Minimum illumination 0 lux with IR LED on
• Built-in PIR sensor up to 5 m
• Built-in microphone and speaker
• 10× digital zoom
• 3.45 mm fixed lens
• 66° diagonal field of view
• H.264 / MPEG-4 / MJPEG simultaneous compression
• JPEG still image support
• microSD card slot for direct local recording
• Motion detection and configurable motion windows
• Configurable privacy mask zones
• Time stamp and text overlays
• Event notification and upload via e-mail or FTP
• Multiple SMTP and FTP server support
• Multiple recording methods for easy backup
• Web browser configuration and remote management
• Snapshot and video clip saving to local drive or NAS
• mydlink mobile app support for iOS and Android
• D-ViewCam support up to 32 cameras
• ONVIF compliant
Technical Specifications:
• Brand: D-Link
• Model: DCS-2332L
• Product Type: Outdoor HD Wireless Day/Night Network Cloud Camera
• Image Sensor: 1/4” Megapixel Progressive CMOS Sensor
• Video Resolution 16:9: 1280 × 800, 1280 × 720, 800 × 450, 640 × 360, 480 × 270, 320 × 176, 176 × 144 up to 30 fps
• Video Resolution 4:3: 1024 × 768, 800 × 600, 640 × 480, 480 × 360, 320 × 240, 176 × 144 up to 30 fps
• Video Compression: H.264 / MPEG-4 / MJPEG
• Still Image Format: JPEG
• Lens Focal Length: 3.45 mm
• Aperture: F2.0
• Digital Zoom: 10×
• Minimum Illumination: 0 lux with IR LED on
• IR Illumination Distance: 5 m
• PIR Sensor: Built-in, 5 m range
• Field of View: 57.8° Horizontal / 37.8° Vertical / 66° Diagonal
• ICR Filter: Built-in Infrared-Cut Removable Filter Module
• Audio: Built-in Microphone and Speaker
• Audio Support: G.726 / G.711
• Housing: IP65 Weatherproof Housing
• Storage: microSD Card Slot
• Network Protocols: IPv4, IPv6, TCP/IP, UDP, ICMP, DHCP Client, NTP Client, DNS Client, DDNS Client, SMTP Client, FTP Client, HTTP/HTTPS, Samba Client, PPPoE, UPnP Port Forwarding, RTP/RTSP/RTCP, IP Filtering, QoS, CoS, IGMP, ONVIF
• Security: Administrator and User Group Protection, Password Authentication, HTTP and RTSP Digest Encryption
• Event Management: Motion Detection, Event Notification and Upload via E-mail or FTP, Multiple Event Notifications, Multiple Recording Methods
• Remote Management: Web Browser Configuration, Snapshot/Video Clip Saving to Local Hard Drive or NAS
• Mobile Support: mydlink Mobile App for iOS and Android
• Software Support: D-ViewCam Management Software up to 32 Cameras
• Power Input: 5V DC / 1.2A External Power Adapter
• Power Adapter Input: 100–240V AC, 50/60Hz
• Maximum Power Consumption: 5.5W
• Dimensions: 66 × 140.5 × 93 mm
• Weight: 255 g
• Operating Temperature: -25°C to 45°C
• Storage Temperature: -20°C to 70°C
• Operating Humidity: 20% to 80% Non-condensing
• Storage Humidity: 5% to 95% Non-condensing
• Certifications: FCC Class B, CE, CE LVD, C-Tick
Applications:
• Outdoor home surveillance
• Small business exterior monitoring
• Gate, entrance, garage, and perimeter monitoring
• Day and night outdoor surveillance
• PIR-based motion detection
• Remote viewing through mydlink mobile app
• Local recording using microSD card
• Event notification via e-mail or FTP
• Snapshot and video clip saving to NAS
• ONVIF-compatible monitoring systems
• Multi-camera monitoring using D-ViewCam software
Connect Gates Recommendation:
• Recommended for outdoor surveillance projects that need HD video, IP65 protection, PIR motion detection, local microSD recording, and mydlink remote access.
• Suitable for villas, homes, shops, entrances, garages, outdoor corridors, and small business monitoring.
• Good choice when standalone outdoor monitoring, weatherproof installation, and event-based alerts are required.
• For larger projects, higher resolution requirements, or long-term centralized recording, Connect Gates recommends using newer outdoor PoE IP cameras with NVR storage and structured network infrastructure.
