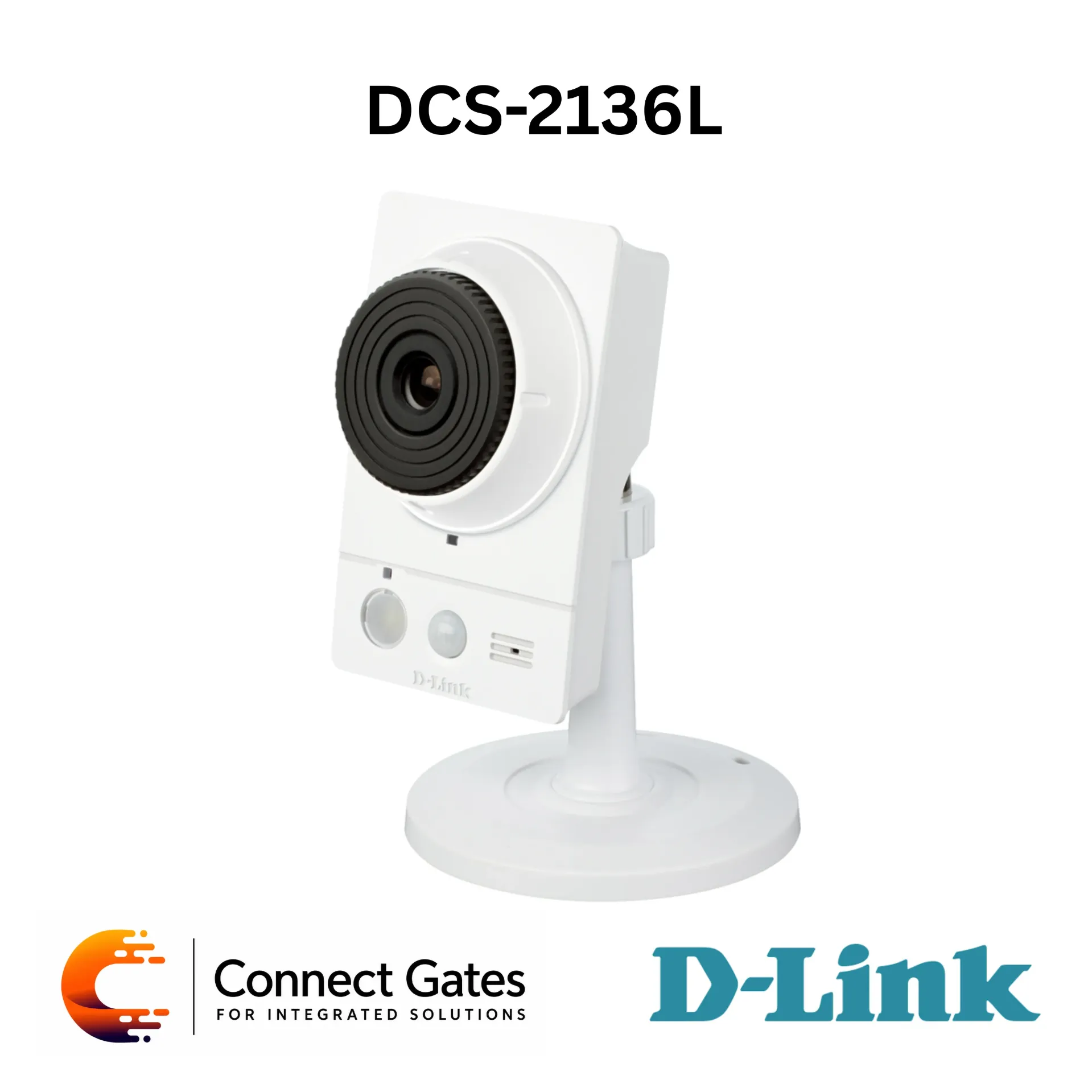

D-Link DCS-2136L – Wireless AC Day/Night Camera with 720p HD Video, Color Night Vision, PIR, WDR, microSD & ONVIF
Overview:
• The D-Link DCS-2136L is a Wireless AC Day/Night Camera designed for home, office, and small business surveillance.
• It provides HD video resolution up to 1280 × 720 with a Sony Exmor 1/3” megapixel CMOS progressive sensor for clear image quality.
• The camera features color night vision using a built-in white LED, helping capture vibrant color images in low-light environments.
• Built-in PIR motion detection can trigger the white LED and improve event-based detection accuracy.
• Wireless AC connectivity allows high-speed wireless installation, while the 10/100 Fast Ethernet port supports wired network connection.
• Built-in microphone and speaker provide two-way communication for remote interaction.
• The DCS-2136L supports microSD/SDHC onboard storage, DI/DO external device integration, ONVIF compatibility, WDR, privacy mask, ePTZ, and simultaneous multi-streaming.
• mydlink support allows users to access live view and configure the camera remotely through the mydlink website or mobile app.
Key Features:
• Wireless AC Day/Night Camera
• HD 720p video resolution
• Sony Exmor 1/3” megapixel CMOS progressive sensor
• Built-in white LED for color low-light surveillance
• Color night vision capability
• Passive Infrared PIR sensor for enhanced motion detection
• Built-in microphone and speaker
• Two-way audio communication
• 10× digital zoom
• Fixed 3.6 mm lens
• F1.4 aperture for improved low-light performance
• Wide Dynamic Range WDR support
• ePTZ viewing support
• H.264 / MPEG-4 / MJPEG video compression
• Simultaneous multi-stream support
• Privacy Mask feature
• ONVIF compliant
• 802.11ac wireless connectivity
• 10/100 Fast Ethernet port
• microSD / SDHC card slot for onboard storage
• DI/DO port for external device connection
• mydlink remote access and mobile viewing
• Zero Configuration support with compatible mydlink Cloud Router
Technical Specifications:
• Brand: D-Link
• Model: DCS-2136L
• Product Type: Wireless AC Day/Night Camera with Color Night Vision
• Image Sensor: Sony Exmor 1/3” Megapixel CMOS Progressive Sensor
• Video Resolution: HD 1280 × 720
• Video Compression: H.264 / MPEG-4 / Motion JPEG
• Lens Focal Length: 3.6 mm Fixed Lens
• Aperture: F1.4
• Digital Zoom: Up to 10×
• Night Vision: Built-in White LED for Low-Light Color Image Capability
• Motion Detection: Passive Infrared PIR Sensor
• Audio: Built-in Microphone and Speaker
• Two-Way Audio: Supported
• Wide Dynamic Range: Supported
• ePTZ: Supported
• Privacy Mask: Supported
• Simultaneous Multi-Stream: Supported
• Wireless Connectivity: 802.11ac
• Wired Network: 10/100 Fast Ethernet Port
• Storage: microSD / SDHC Card Slot
• External Interface: DI/DO Port
• ONVIF: Compliant
• Remote Access: mydlink Website and mydlink Mobile App
• Setup Support: Zero Configuration with Compatible mydlink Cloud Router
Applications:
• Indoor home surveillance
• Small office monitoring
• Reception, entrance, corridor, and room monitoring
• Day and night surveillance with color low-light images
• PIR-based motion detection
• Two-way audio communication
• Local recording using microSD/SDHC card
• External device integration using DI/DO
• Remote viewing through mydlink
• ONVIF-compatible surveillance systems
• Wireless AC IP camera installations
Connect Gates Recommendation:
• Recommended for indoor surveillance applications that need HD video, Wireless AC connectivity, color night vision, PIR detection, and two-way audio.
• Suitable for offices, homes, shops, reception areas, corridors, and indoor areas where low-light color monitoring is required.
• Good option when WDR, ONVIF compatibility, microSD recording, DI/DO integration, and mydlink remote access are required.
• For outdoor areas, higher resolution projects, or long-term centralized recording, Connect Gates recommends using newer PoE IP cameras with NVR storage and structured network infrastructure.
