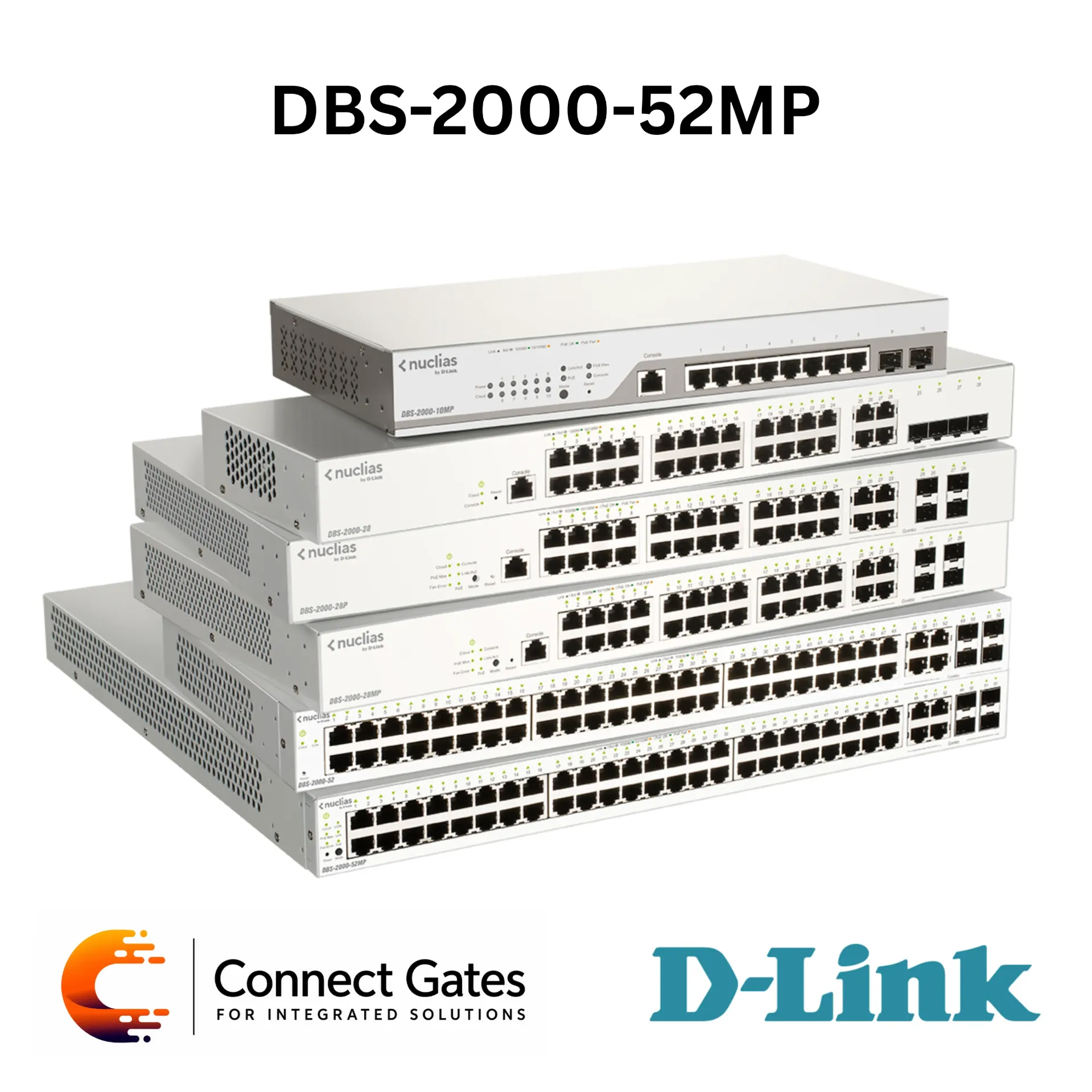

D-Link DBS-2000-52MP – 52-Port Nuclias Cloud-Managed Gigabit PoE Switch with 48 PoE Ports, 4 Combo GE/SFP Ports, 370W PoE Budget & Zero-Touch Deployment
Overview:
• The D-Link DBS-2000-52MP is a Nuclias Cloud-Managed Gigabit PoE Switch designed for enterprise networks, multi-site deployments, cloud-managed infrastructure, CCTV systems, and wireless access point projects.
• It comes with 48 × 10/100/1000 Mbps PoE ports and 4 × Combo 1000 Mbps/SFP ports, providing high port density with flexible copper or fiber uplink connectivity.
• The switch is managed through the D-Link Nuclias cloud platform, allowing administrators to configure, monitor, and maintain multiple switches and sites remotely from one centralized dashboard.
• It supports zero-touch deployment, enabling fast installation in remote branches without the need for advanced on-site configuration.
• The DBS-2000-52MP supports PoE+ with up to 30W per port and a total PoE budget of 370W, making it suitable for IP cameras, wireless access points, VoIP phones, and other PoE-powered devices.
• It includes enterprise switching features such as VLAN, STP/RSTP, Link Aggregation, IGMP Snooping, ACL, SSL, port security, cloud alerts, over-the-air firmware updates, and time-based PoE control through Nuclias.
Key Features:
• Nuclias Cloud-Managed Gigabit PoE Switch.
• 48 × 10/100/1000 Mbps PoE ports.
• 4 × Combo 1000 Mbps/SFP ports.
• 370W total PoE budget.
• Up to 30W per PoE port.
• Centralized cloud-based management.
• Zero-touch deployment.
• Browser-based and mobile app management through Nuclias.
• Real-time network monitoring and device status.
• Over-the-air firmware updates through the cloud.
• Instant alerts and notifications.
• Supports IEEE 802.3af / IEEE 802.3at PoE.
• Supports STP, RSTP, and Link Aggregation.
• Loopback protection and IGMP Snooping.
• Access Control Lists for network security.
• Suitable for large CCTV systems, access point networks, enterprise branches, hotels, schools, offices, and multi-site networks.
Technical Specifications:
• Product Type: Nuclias Cloud-Managed Gigabit PoE Switch
• Brand: D-Link
• Model: DBS-2000-52MP
• Series: DBS-2000 Series
• Hardware Version: A1
• RJ45 Ports: 48 × 10/100/1000 Mbps PoE Ports
• Combo Ports: 4 × Combo 1000 Mbps/SFP Ports
• PoE Standards: IEEE 802.3af / IEEE 802.3at
• PoE Capable Ports: Ports 1 to 48
• PoE Power Budget: 370W Total
• PoE Power Per Port: Up to 30W Max. per Port
• Port Standards: IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3x Flow Control, IEEE 802.3az
• MDI / MDIX: Manual / Auto MDI/MDIX Configuration
• Duplex Mode: Half / Full-Duplex Operation
• Switching Capacity: 104Gbps
• Maximum Forwarding Rate: 77.4Mpps
• MAC Address Table: 16K Entries
• Packet Buffer: 12Mbits
• Flash Memory: 32MB
• Power Input: 100 to 240V AC, 50/60Hz Internal Power Supply
• Standby Power Consumption: 32W at 100V / 31.6W at 240V
• Maximum Power Consumption: 478.9W with PoE On / 54.4W with PoE Off
• MTBF: 236,406 Hours
• Acoustics: 52.4 dB(A)
• Heat Dissipation: 1634.01 BTU/hr
• Weight: 6.26kg
• Dimensions: 440 × 430 × 44 mm
• Ventilation: 3 × Fans
• Operating Temperature: -5°C to 50°C
• Storage Temperature: -20°C to 70°C
• Operating Humidity: 0% to 95%, Non-Condensing
• Storage Humidity: 0% to 95%, Non-Condensing
• EMI Certifications: CE, FCC, VCCI, BSMI
• Safety Certifications: UL, CB, LVD, BSMI, CCC
Software Features:
• VLAN: 802.1Q Tagged VLAN, Management VLAN, Voice VLAN, VLAN Group, Supports 256 Static VLAN Groups
• Layer 2 Features: Flow Control, 802.3x Flow Control, HOL Blocking Prevention, Jumbo Frames, IGMP Snooping, IGMP v1/v2/v3 Awareness Snooping, Supports 256 Groups, Cable Diagnostics, LLDP, STP, RSTP, 802.3ad Link Aggregation
• Security: SSL, DHCP Server Screening, Port Security, Access Control List with up to 768 Entries
• Management: Cloud-based management through Nuclias, Nuclias mobile app support
• Green Technology: RoHS 6 Compliance, Time-Based PoE
Applications:
• Cloud-managed enterprise networks.
• Large office and branch network deployment.
• CCTV and IP surveillance PoE networks.
• Wireless access point power and uplink connections.
• VoIP phone and office PoE device connectivity.
• Hotels, schools, clinics, retail chains, warehouses, and administrative buildings.
• Multi-site network management.
• Remote locations requiring zero-touch deployment.
• Networks requiring centralized monitoring, alerts, and firmware updates.
Connect Gates Recommendation:
• Recommended for large projects that need high port density with centralized cloud management and PoE support.
• Suitable for CCTV systems, access point networks, offices, schools, hotels, warehouses, and multi-branch businesses.
• Best used when the client needs 48 PoE ports, 370W PoE budget, fiber uplink flexibility, remote management, zero-touch setup, and easy monitoring through D-Link Nuclias.
