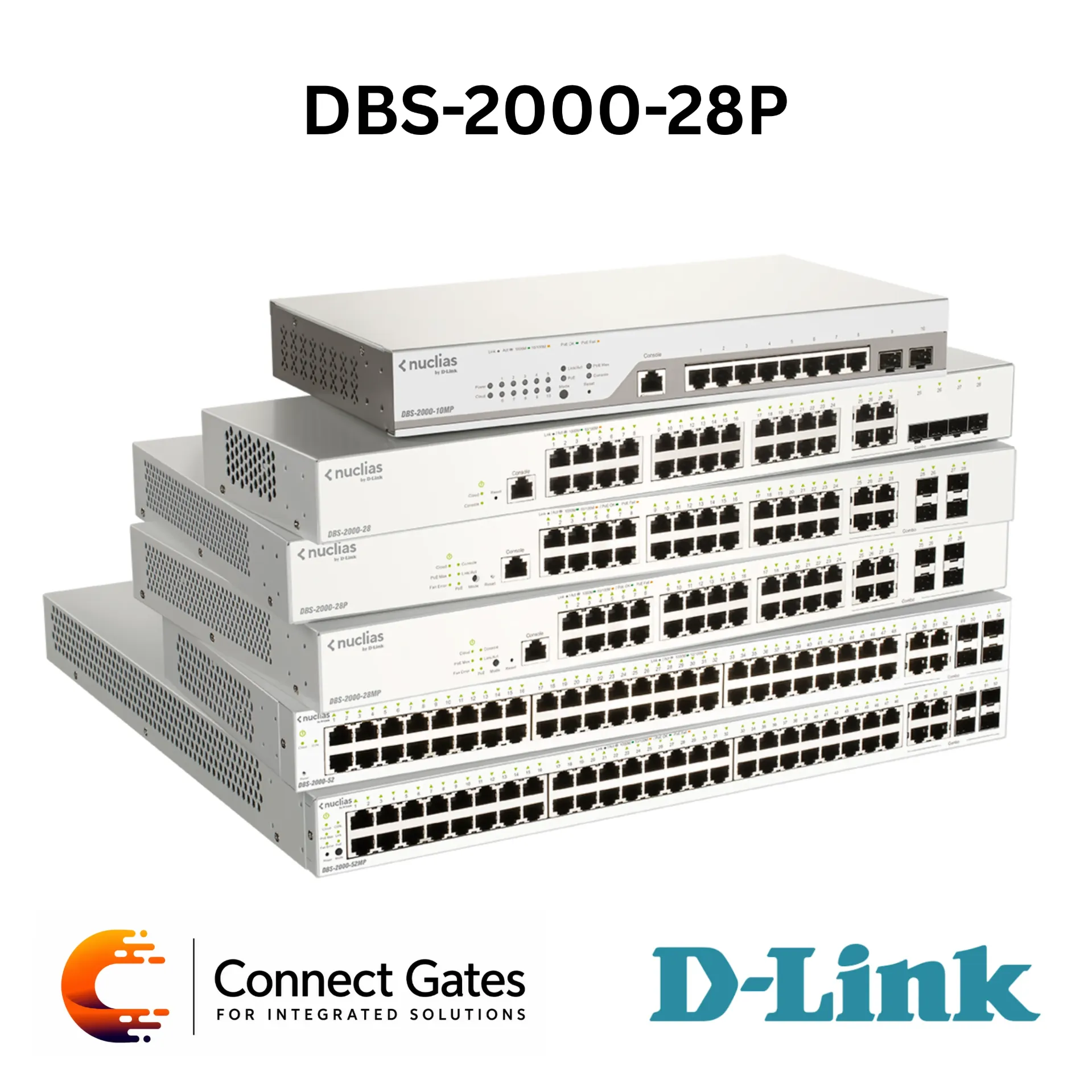

D-Link DBS-2000-28P – 28-Port Nuclias Cloud-Managed Gigabit PoE Switch with 24 PoE Ports, 4 Combo GE/SFP Ports, 193W PoE Budget & Zero-Touch Deployment

• The D-Link DBS-2000-28P is a Nuclias Cloud-Managed Gigabit PoE Switch designed for centralized cloud-based network management.

• It comes with 24 × 10/100/1000 Mbps PoE ports and 4 × Combo 1000 Mbps/SFP ports for flexible copper or fiber uplink connectivity.

• The switch is managed through the D-Link Nuclias cloud platform, allowing administrators to configure, monitor, and maintain the network remotely from a browser-based portal or mobile app.

• It supports zero-touch deployment, making it suitable for branches, remote sites, and multi-location projects where on-site configuration time needs to be reduced.

• The DBS-2000-28P supports PoE+ with up to 30W per port and a total PoE budget of 193W, making it suitable for IP cameras, access points, VoIP phones, and other PoE-powered devices.

• It includes enterprise switching features such as VLAN, STP/RSTP, Link Aggregation, IGMP Snooping, ACL, SSL, port security, cloud alerts, and over-the-air firmware updates through Nuclias.

• Nuclias Cloud-Managed Gigabit PoE Switch.

• 24 × 10/100/1000 Mbps PoE ports.

• 4 × Combo 1000 Mbps/SFP ports.

• 193W total PoE budget.

• Up to 30W per PoE port.

• Centralized cloud-based management.

• Zero-touch deployment.

• Browser-based and mobile app management through Nuclias.

• Real-time network monitoring and device status.

• Over-the-air firmware updates through the cloud.

• Instant alerts and notifications.

• Supports IEEE 802.3af / 802.3at PoE.

• Supports STP, RSTP, and Link Aggregation.

• Loopback protection and IGMP Snooping.

• Access Control Lists for network security.

• Suitable for offices, enterprise branches, CCTV systems, wireless access points, and multi-site networks.

• Product Type: Nuclias Cloud-Managed Gigabit PoE Switch

• Brand: D-Link

• Model: DBS-2000-28P

• Series: DBS-2000 Series

• Hardware Version: A1

• RJ45 Ports: 24 × 10/100/1000 Mbps PoE Ports

• Combo Ports: 4 × Combo 1000 Mbps/SFP Ports

• PoE Standards: IEEE 802.3af / IEEE 802.3at

• PoE Capable Ports: Ports 1 to 24

• PoE Power Budget: 193W Total

• PoE Power Per Port: Up to 30W Max. per Port

• Port Standards: IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3x Flow Control, IEEE 802.3az

• MDI / MDIX: Manual / Auto MDI/MDIX Configuration

• Duplex Mode: Half / Full-Duplex Operation

• Switching Capacity: 56Gbps

• Maximum Forwarding Rate: 41.7Mpps

• MAC Address Table: 8K Entries

• Packet Buffer: 4.1Mbits

• Flash Memory: 32MB

• Power Input: 100 to 240V AC, 50/60Hz Internal Power Supply

• Standby Power Consumption: 19.6W at 100V / 16.6W at 240V

• Maximum Power Consumption: 263.9W with PoE On / 30.6W with PoE Off

• MTBF: 469,262 Hours

• Acoustics: 51.7 dB(A)

• Heat Dissipation: 900.36 BTU/hr

• Weight: 3.75kg

• Dimensions: 440 × 250 × 44 mm

• Ventilation: 2 × Fans

• Operating Temperature: -5°C to 50°C

• Storage Temperature: -20°C to 70°C

• Operating Humidity: 0% to 95%, Non-Condensing

• Storage Humidity: 0% to 95%, Non-Condensing

• EMI Certifications: CE, FCC, VCCI, BSMI

• Safety Certifications: UL, CB, LVD, BSMI, CCC

• VLAN: 802.1Q Tagged VLAN, Management VLAN, Voice VLAN, VLAN Group, Supports 256 Static VLAN Groups

• Layer 2 Features: Flow Control, 802.3x Flow Control, HOL Blocking Prevention, Jumbo Frames, IGMP Snooping, IGMP v1/v2/v3 Awareness Snooping, Supports 256 Groups, Cable Diagnostics, LLDP, STP, RSTP, 802.3ad Link Aggregation

• Security: SSL, DHCP Server Screening, Port Security, Access Control List with up to 768 Entries

• Management: Cloud-based management through Nuclias, Nuclias mobile app support

• Green Technology: RoHS 6 Compliance, Time-Based PoE

• Cloud-managed business networks.

• Office and enterprise branch network deployment.

• IP camera and CCTV PoE networks.

• Wireless access point power and uplink connections.

• VoIP phone and office PoE device connectivity.

• Multi-site network management.

• Remote sites requiring zero-touch deployment.

• Networks requiring centralized monitoring, alerts, and firmware updates.

• Recommended for projects that need centralized cloud management with PoE support for cameras, access points, and VoIP devices.

• Suitable for offices, branches, retail stores, schools, clinics, hotels, CCTV systems, and multi-site businesses.

• Best used when the client needs 24 PoE ports, fiber uplink flexibility, remote management, zero-touch setup, and easy monitoring from the D-Link Nuclias cloud dashboard.
