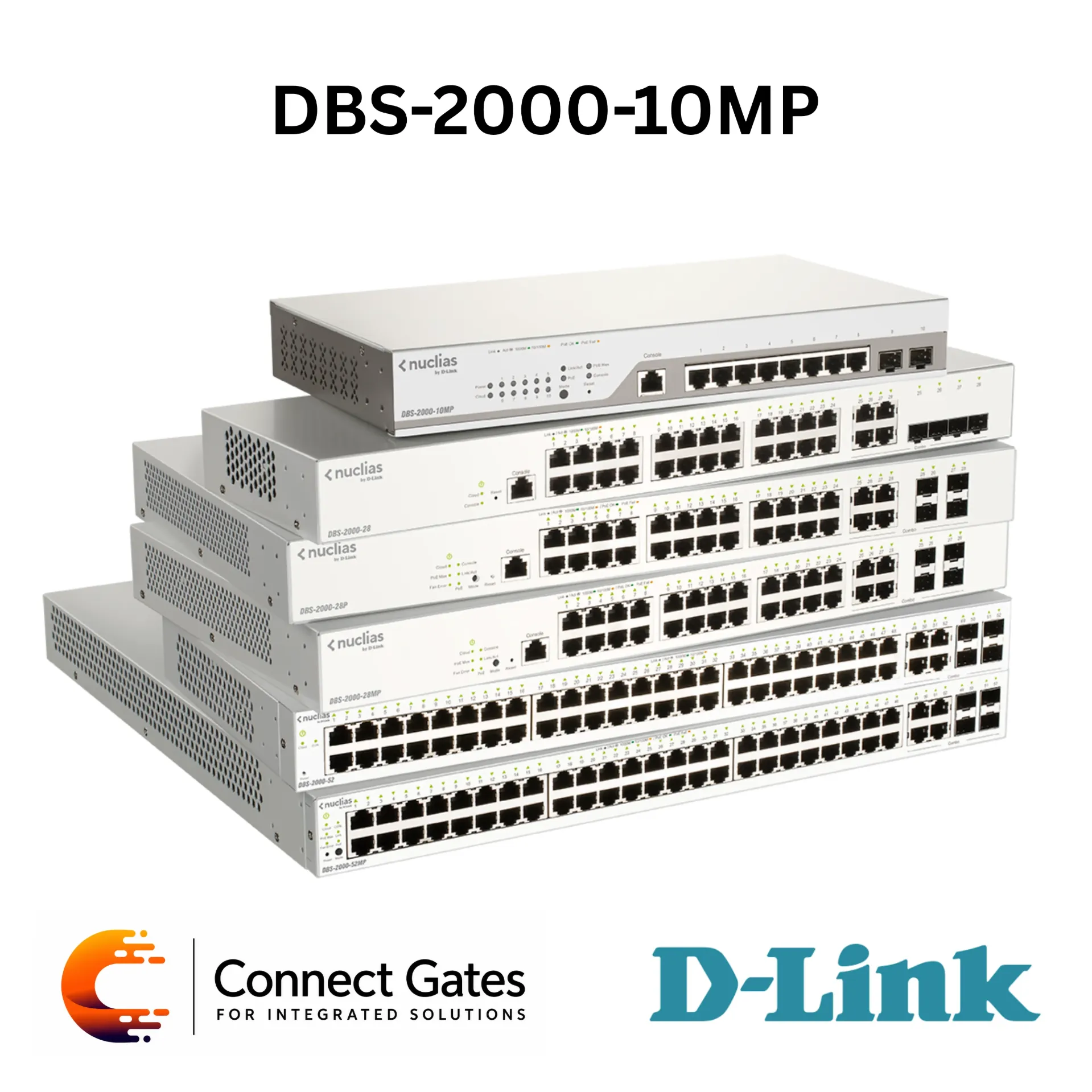

D-Link DBS-2000-10MP – 10-Port Nuclias Cloud-Managed Gigabit PoE Switch with 8 PoE Ports, 2 SFP Ports, 130W PoE Budget & Zero-Touch Deployment
Overview:
• The D-Link DBS-2000-10MP is a Nuclias Cloud-Managed Gigabit PoE Switch designed for centralized cloud-based network management.
• It comes with 8 × 10/100/1000 Mbps PoE ports and 2 × 100/1000 Mbps SFP ports for fiber uplink connectivity.
• The switch is managed through the D-Link Nuclias cloud platform, allowing administrators to configure, monitor, and maintain the network remotely.
• It supports zero-touch deployment, making it suitable for remote sites where devices need to be installed quickly without advanced on-site configuration.
• The DBS-2000-10MP supports PoE+ with up to 30W per port and a total PoE budget of 130W, making it suitable for access points, IP cameras, VoIP phones, and other PoE-powered devices.
• It includes enterprise switching features such as VLAN, STP/RSTP, Link Aggregation, IGMP Snooping, ACL, SSL, port security, and cloud-based alerts through Nuclias.
Key Features:
• Nuclias Cloud-Managed Gigabit PoE Switch.
• 8 × 10/100/1000 Mbps PoE ports.
• 2 × 100/1000 Mbps SFP ports.
• 130W total PoE budget.
• Up to 30W per PoE port.
• Centralized cloud-based management.
• Zero-touch deployment.
• Browser-based and mobile app management through Nuclias.
• Real-time network monitoring and device status.
• Over-the-air firmware updates through the cloud.
• Instant alerts and notifications.
• Supports IEEE 802.3af / 802.3at PoE.
• Supports STP, RSTP, and Link Aggregation.
• Loopback protection and IGMP Snooping.
• Access Control Lists for network security.
• Fanless design with 0 dB acoustic level.
• Suitable for small businesses, enterprise branches, CCTV systems, access points, and multi-site networks.
Technical Specifications:
• Product Type: Nuclias Cloud-Managed Gigabit PoE Switch
• Brand: D-Link
• Model: DBS-2000-10MP
• Series: DBS-2000 Series
• Hardware Version: A1
• RJ45 Ports: 8 × 10/100/1000 Mbps PoE Ports
• SFP Ports: 2 × 100/1000 Mbps SFP Ports
• PoE Standards: IEEE 802.3af / IEEE 802.3at
• PoE Capable Ports: Ports 1 to 8
• PoE Power Budget: 130W Total
• PoE Power Per Port: Up to 30W Max. per Port
• Port Standards: IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3x Flow Control, IEEE 802.3az
• MDI / MDIX: Manual / Auto MDI/MDIX Configuration
• Duplex Mode: Half / Full-Duplex Operation
• Switching Capacity: 20Gbps
• Maximum Forwarding Rate: 14.88Mpps
• MAC Address Table: 8K Entries
• Packet Buffer: 4.1Mbits
• Flash Memory: 32MB
• Power Input: 100 to 240V AC, 50/60Hz Internal Power Supply
• Standby Power Consumption: 4.3W at 100V / 5.2W at 240V
• Maximum Power Consumption: 152.3W with PoE On / 9.4W with PoE Off
• MTBF: 1,274,005 Hours
• Acoustics: 0 dB(A)
• Heat Dissipation: 519.51 BTU/hr
• Weight: 1.77kg
• Dimensions: 330 × 180 × 44 mm
• Ventilation: Fanless
• Operating Temperature: -5°C to 50°C
• Storage Temperature: -20°C to 70°C
• Operating Humidity: 0% to 95%, Non-Condensing
• Storage Humidity: 0% to 95%, Non-Condensing
• EMI Certifications: CE, FCC, VCCI, BSMI
• Safety Certifications: UL, CB, LVD, BSMI, CCC
Software Features:
• VLAN: 802.1Q Tagged VLAN, Management VLAN, Voice VLAN, VLAN Group, Supports 256 Static VLAN Groups
• Layer 2 Features: Flow Control, 802.3x Flow Control, HOL Blocking Prevention, Jumbo Frames, IGMP Snooping, IGMP v1/v2/v3 Awareness Snooping, Supports 256 Groups, Cable Diagnostics, LLDP, STP, RSTP, 802.3ad Link Aggregation
• Security: SSL, DHCP Server Screening, Port Security, Access Control List with up to 768 Entries
• Management: Cloud-based management through Nuclias, Nuclias mobile app support
• Green Technology: RoHS 6 Compliance, Time-Based PoE
Applications:
• Cloud-managed business networks.
• Small and medium business network deployment.
• Branch office and multi-site management.
• IP camera and CCTV PoE networks.
• Wireless access point power and uplink connections.
• VoIP phone and office PoE device connectivity.
• Remote sites requiring zero-touch deployment.
• Networks requiring centralized monitoring, alerts, and firmware updates.
Connect Gates Recommendation:
• Recommended for projects that need a compact cloud-managed PoE switch with centralized Nuclias control.
• Suitable for offices, branches, retail stores, schools, clinics, CCTV systems, and access point deployments.
• Best used when the client needs remote management, zero-touch setup, PoE power for devices, and easy monitoring from one cloud dashboard.
