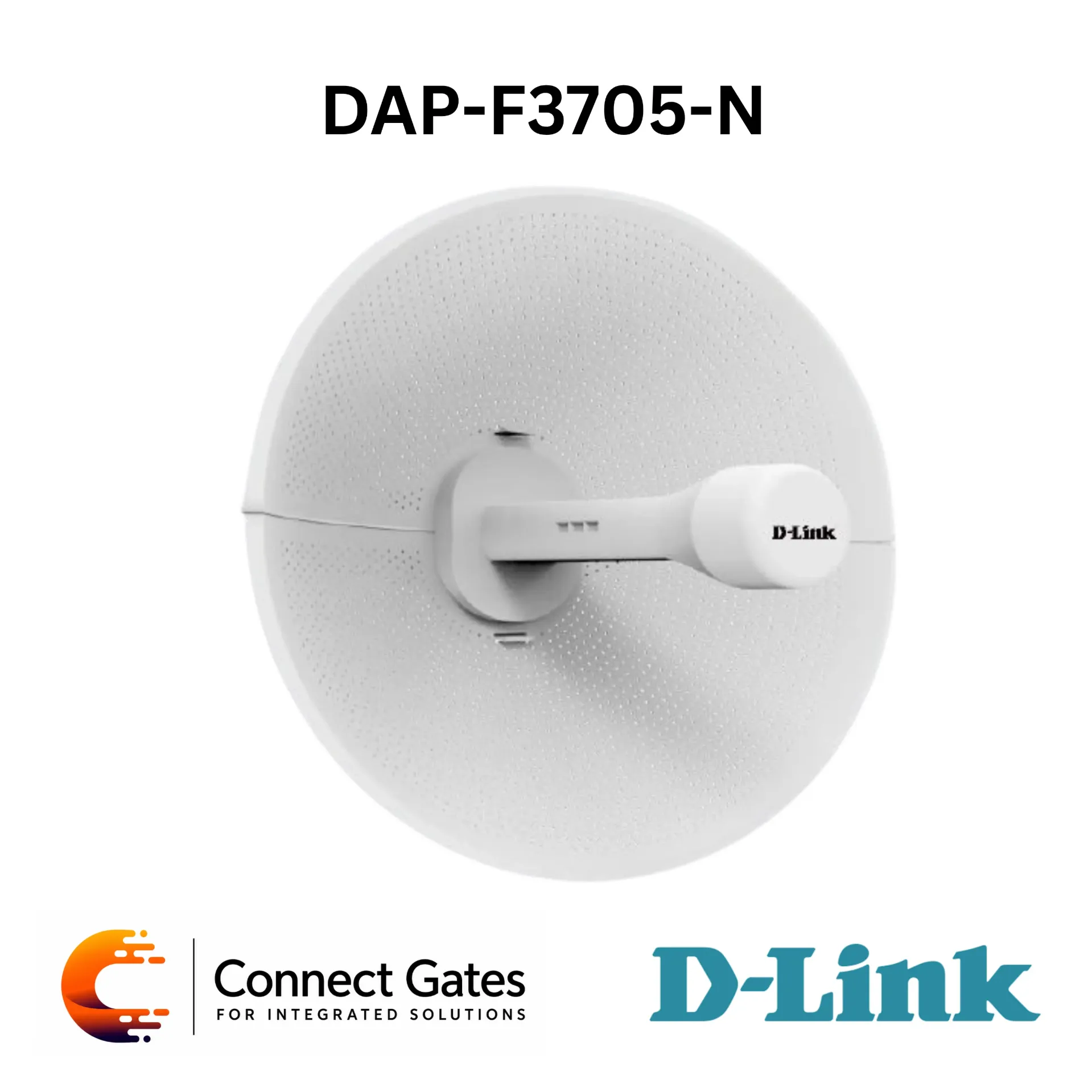

D-Link DAP-F3705-N – 802.11a/n Outdoor Wireless Bridge with 300Mbps 5GHz, 23dBi Directional Antenna, TDMA+, VTrans, IP66 Housing, Passive PoE & Up to 10km PTP Transmission
Overview:
• The D-Link DAP-F3705-N is an 802.11a/n Outdoor Wireless Bridge designed for outdoor broadband access and long-distance wireless transmission.
• It supports 802.11a/n wireless with 2 × 2 MIMO technology, delivering wireless speeds up to 300Mbps.
• The bridge includes a high-gain 23dBi directional antenna, making it suitable for point-to-point outdoor links with transmission distance up to 10km.
• It uses D-Link VTrans wireless technology, including MIMO-OFDM, TDMA, Auto ACK, intelligent rate control, co-channel interference avoidance, and ACK timeout support to improve throughput and link stability.
• The DAP-F3705-N supports multiple operation modes including Access Point, Station, WDS Access Point, and WDS Station, with Bridge and Router network modes.
• It is designed for harsh outdoor environments with IP66 protection, ABS enclosure, ESD / lightning protection, pole mounting kit, passive PoE power, and operating temperature from -40°C to 60°C.
Key Features:
• 802.11a/n Outdoor Wireless Bridge.
• Supports 2 × 2 MIMO technology.
• Wireless speed up to 300Mbps.
• High-gain 23dBi directional antenna.
• Point-to-point transmission distance up to 10km.
• VTrans technology for superior performance.
• Time Division Multiple Access TDMA+ support.
• Supports MIMO-OFDM and Auto ACK.
• Intelligent rate control.
• Co-channel interference avoidance.
• Auto ACK timeout support.
• Supports 5 / 10 / 20 / 40MHz bandwidth.
• Supports Access Point mode.
• Supports Station mode.
• Supports WDS Access Point mode.
• Supports WDS Station mode.
• Supports Bridge and Router network modes.
• Supports Static IP, DHCP, and PPPoE WAN types.
• Supports VLAN.
• Supports IP / MAC filtering.
• Supports traffic shaping.
• Supports Wi-Fi Multimedia optimization for stable video and traffic transmission.
• Supports centralized configuration through hardware controller or cloud.
• Supports Web-based configuration.
• Supports AC remote management.
• Supports SNMP management.
• Supports Ping, Traceroute, Ping Watchdog, Syslog, Spectrum Analyzer, and iPerf throughput testing.
• Supports passive PoE power supply.
• IP66 outdoor protection.
• 8KV ESD protection and 4KV lightning protection.
• Smart mechanical design for easy assembly and disassembly without tools.
Technical Specifications:
• Product Type: Outdoor Wireless Bridge
• Brand: D-Link
• Model: DAP-F3705-N
• Wireless Standard: IEEE 802.11a/n
• Wireless Speed: Up to 300Mbps
• MIMO: 2 × 2 MIMO
• Processor: Atheros AR9344
• Memory: 64MB DRAM
• Flash: 8MB
• Interface: 1 × 10/100Mbps Ethernet Port LAN / PoE
• Reset Button: Supported
• Power Requirement: 24V DC / 0.5A Passive PoE Adapter
• Antenna Gain: 23dBi
• Beamwidth: H: 10° / V: 10°
• Protection: 8KV ESD Protection, 4KV Lightning Protection
• Enclosure: ABS
• Protection Rating: IP66
• Operating Frequency: 5.150–5.350GHz, 5.470–5.875GHz
• Maximum Transmit Power: 21dBm
• Wireless Security: WPA-PSK, WPA2-PSK, 802.1X
• VTrans Technology: TDMA, 5 / 10 / 20 / 40MHz Bandwidth, Intelligent Rate Control, JTrans Co-Channel Interference Avoidance, Auto ACK Timeout
• Wireless Configuration: Auto Channel, Transmit Power Selection, SSID Broadcast Enable / Disable, Selectable Max Transmit Rate, Wi-Fi Multimedia
• Wireless Advanced Features: Manual Distance Setup, Data Frames Aggregation, Multicast, Client Isolation, Max Station Limit, Signal Strength LED Value Support
• Network Mode: Bridge, Router
• Operation Modes: Access Point, Station, WDS Access Point, WDS Station
• WAN Type: Static IP, DHCP, PPPoE
• LAN: Static, DHCP
• Firewall: IP / MAC Filter
• Management: Web-Based Configuration, AC Remote Management, SNMP Management
• System Tools: Ping, Traceroute, Reboot Schedule, NTP, Ping Watchdog, Syslog, Spectrum Analyzer, Throughput Testing iPerf
• Monitoring: Throughput, Interfaces, Route Table, Bridge Table, ARP Table, AP Information, Syslog
• Firmware Upgrade: Web-Based Upgrade, Remote AC Central Upgrade
• Weight: 0.9kg
• Dimensions: Diameter 372.2mm, Thickness 241.02mm
• Operating Temperature: -40°C to 60°C
• Storage Temperature: -40°C to 85°C
• Operating Humidity: 5% to 95% RH, Non-Condensing
• Maximum Power Consumption: ≤ 8W
• Mounting Kit: Pole Mounting Kit
• Package Contents: DAP-F3705-N Device, Bracket, Antenna, 24V 0.5A PoE Adapter, Power Cord, Clamp, QIG
Applications:
• Point-to-point outdoor wireless links.
• CCTV and IP camera wireless backhaul.
• Long-distance wireless coverage for remote sites.
• Forest, farm, construction site, industrial yard, and outdoor monitoring applications.
• Wireless video surveillance for transportation, smart city, oil and gas pipelines, forest fire monitoring, and residential areas.
• Railway, electric power, and industrial data transmission.
• Wireless backhaul network construction.
• Locations where fiber or copper cabling is difficult or costly.
• Outdoor projects requiring IP66 protection, directional antenna, and passive PoE installation.
Connect Gates Recommendation:
• Recommended for outdoor point-to-point wireless bridge projects requiring stable long-distance transmission with a high-gain directional antenna.
• Suitable for CCTV backhaul, remote buildings, farms, factories, warehouses, outdoor monitoring, and site-to-site connectivity.
• Best used when the client needs up to 10km PTP transmission, 300Mbps 5GHz wireless speed, 23dBi antenna, TDMA+, VTrans technology, IP66 protection, passive PoE, and easy pole-mounted installation.
• For critical CCTV or industrial links, Connect Gates recommends clear line-of-sight, accurate alignment, surge protection, proper grounding, and site survey before installation.
