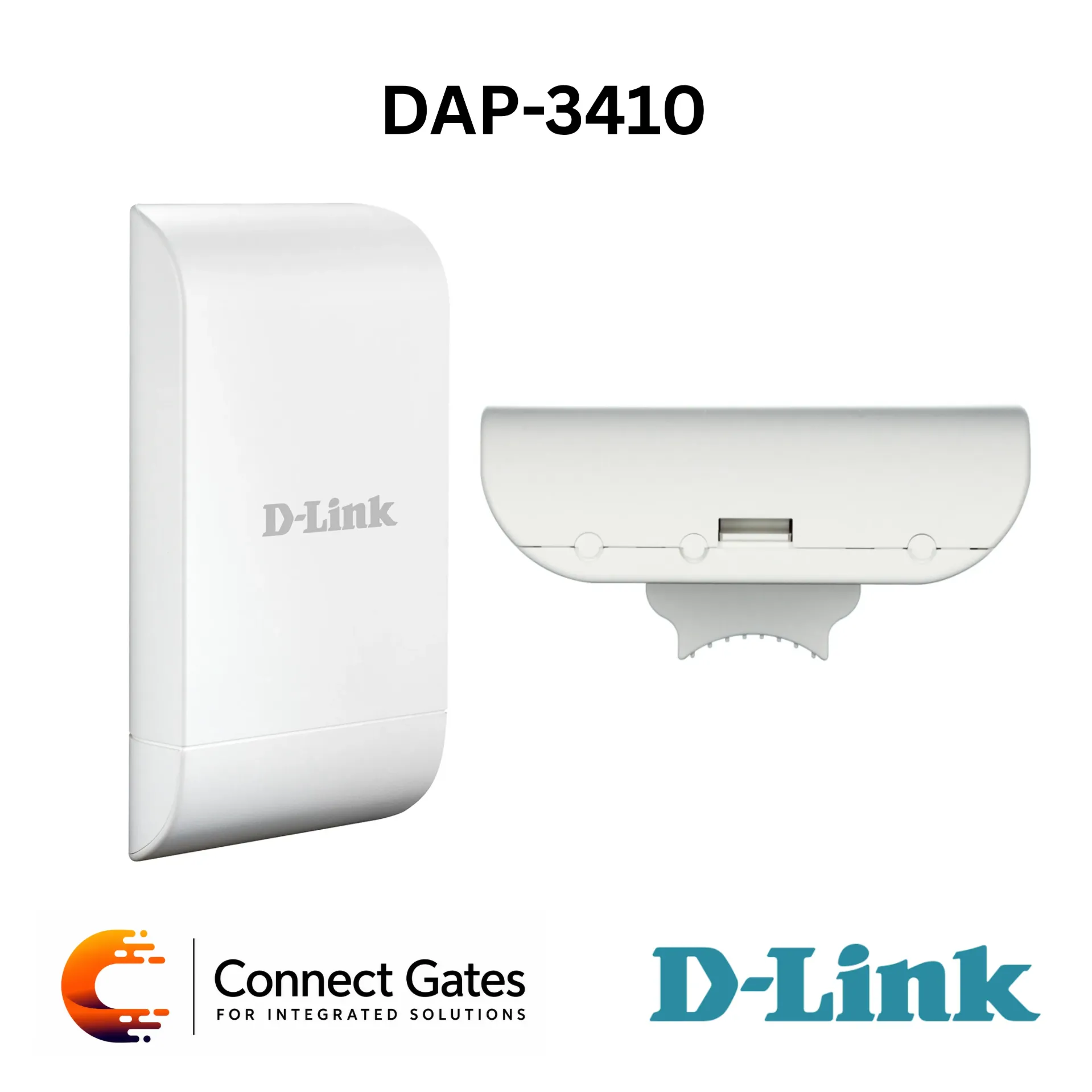

D-Link DAP-3410 – Wireless N 5GHz Outdoor PoE Access Point with 300Mbps Wi-Fi, 10dBi Sector Antenna, Dual 10/100 LAN, IPX6 Housing, 8 SSIDs & PoE Passthrough
Overview:
• The D-Link DAP-3410 is a Wireless N 5GHz Outdoor Access Point designed to expand wireless coverage and signal strength for outdoor business networks.
• It supports 5GHz IEEE 802.11a/n wireless connectivity with speeds up to 300Mbps, making it suitable for short-distance outdoor wireless links and coverage expansion.
• The access point includes a built-in 10dBi sector antenna with high-power radio design to improve coverage in hard-to-reach outdoor locations.
• It features two 10/100 Ethernet ports, including one PoE-supported port, allowing wired expansion and simplified installation in outdoor areas.
• The DAP-3410 supports multiple operation modes including AP, WDS, wireless client, repeater, and WISP modes, giving administrators flexible deployment options for different network scenarios.
• It also supports up to 8 SSIDs, 802.1Q VLAN tagging, WLAN partitioning, WPA / WPA2 security, WEP encryption, 802.1X, MAC address filtering, client isolation, user limit control, HTTP / HTTPS management, SNMP v1/v2c/v3, IPX6 waterproof protection, wall / pole mounting, and PoE passthrough for selected D-Link IP cameras.
Key Features:
• Wireless N 5GHz Outdoor Access Point.
• Supports IEEE 802.11a/n wireless devices.
• Wireless speed up to 300Mbps.
• Built-in 10dBi sector antenna.
• High-power radio design.
• 5GHz operating frequency.
• Two 10/100 Ethernet ports.
• Proprietary PoE design.
• PoE passthrough support.
• Supports multiple operation modes.
• Supports AP mode.
• Supports WDS mode.
• Supports wireless client mode.
• Supports repeater mode.
• Supports WISP client / repeater functionality.
• Supports up to 8 SSIDs.
• Supports 802.1Q VLAN tagging.
• Supports WLAN partitioning.
• Supports WPA / WPA2 Personal and Enterprise.
• Supports 64 / 128-bit WEP encryption.
• Supports 802.1X authentication.
• Supports MAC address filtering.
• Supports client isolation.
• Supports user limit control.
• Supports Disable SSID Broadcast.
• Supports HTTP / HTTPS management.
• Supports SNMP v1/v2c/v3.
• Waterproof IPX6 standard.
• Wall and pole mount included.
Technical Specifications:
• Product Type: Outdoor Wireless N Access Point
• Brand: D-Link
• Model: DAP-3410
• Wireless Standard: IEEE 802.11a/n
• Wireless Band: 5GHz
• Wireless Speed: Up to 300Mbps
• Antenna Type: Built-in Sector Antenna
• Antenna Gain: 10dBi
• Ethernet Ports: 2 × 10/100 Ethernet Ports
• PoE: Proprietary PoE Design
• PoE Passthrough: Supported
• Operation Modes: Access Point, WDS, Wireless Client, Repeater, WISP Client / Repeater
• SSID Support: Up to 8 SSIDs
• VLAN Support: 802.1Q VLAN Tagging
• Wireless Partitioning: Supported
• Wireless Security: WPA / WPA2 Personal and Enterprise, 64 / 128-bit WEP
• Authentication: 802.1X
• Access Control: MAC Address Filter, Client Isolation, User Limit, Disable SSID Broadcast
• Management: HTTP, HTTPS, SNMP v1/v2c/v3
• Outdoor Protection: Waterproof IPX6 Standard
• Mounting: Wall / Pole Mount Included
• Compatible PoE Passthrough Cameras: DCS-3716, DCS-6113, DCS-7110
• Recommended Use: Outdoor Wi-Fi coverage, WDS, WISP, short-distance wireless extension, and outdoor network expansion
Applications:
• Outdoor 5GHz wireless coverage expansion.
• Business outdoor Wi-Fi deployments.
• Warehouses, factories, yards, schools, campuses, and outdoor areas.
• Short-distance network extension between separated locations.
• WDS wireless distribution applications.
• Repeater deployment to eliminate weak outdoor signal areas.
• WISP client or repeater applications.
• Outdoor hotspot and guest Wi-Fi coverage.
• CCTV-related outdoor network extension using PoE passthrough for compatible D-Link cameras.
• Locations where traditional wired connection is difficult or costly.
Connect Gates Recommendation:
• Recommended for legacy outdoor Wireless N projects that require 5GHz outdoor coverage with sector antenna design.
• Suitable for warehouses, factories, campuses, yards, outdoor corridors, and small outdoor coverage zones.
• Best used when the client needs 300Mbps 5GHz Wi-Fi, built-in 10dBi sector antenna, dual 10/100 Ethernet ports, IPX6 outdoor protection, multiple operation modes, VLAN, 8 SSIDs, and PoE installation.
• For new outdoor wireless projects, Connect Gates recommends considering newer outdoor Wi-Fi 5 / Wi-Fi 6 models or dedicated outdoor wireless bridge models depending on coverage distance and required throughput.
