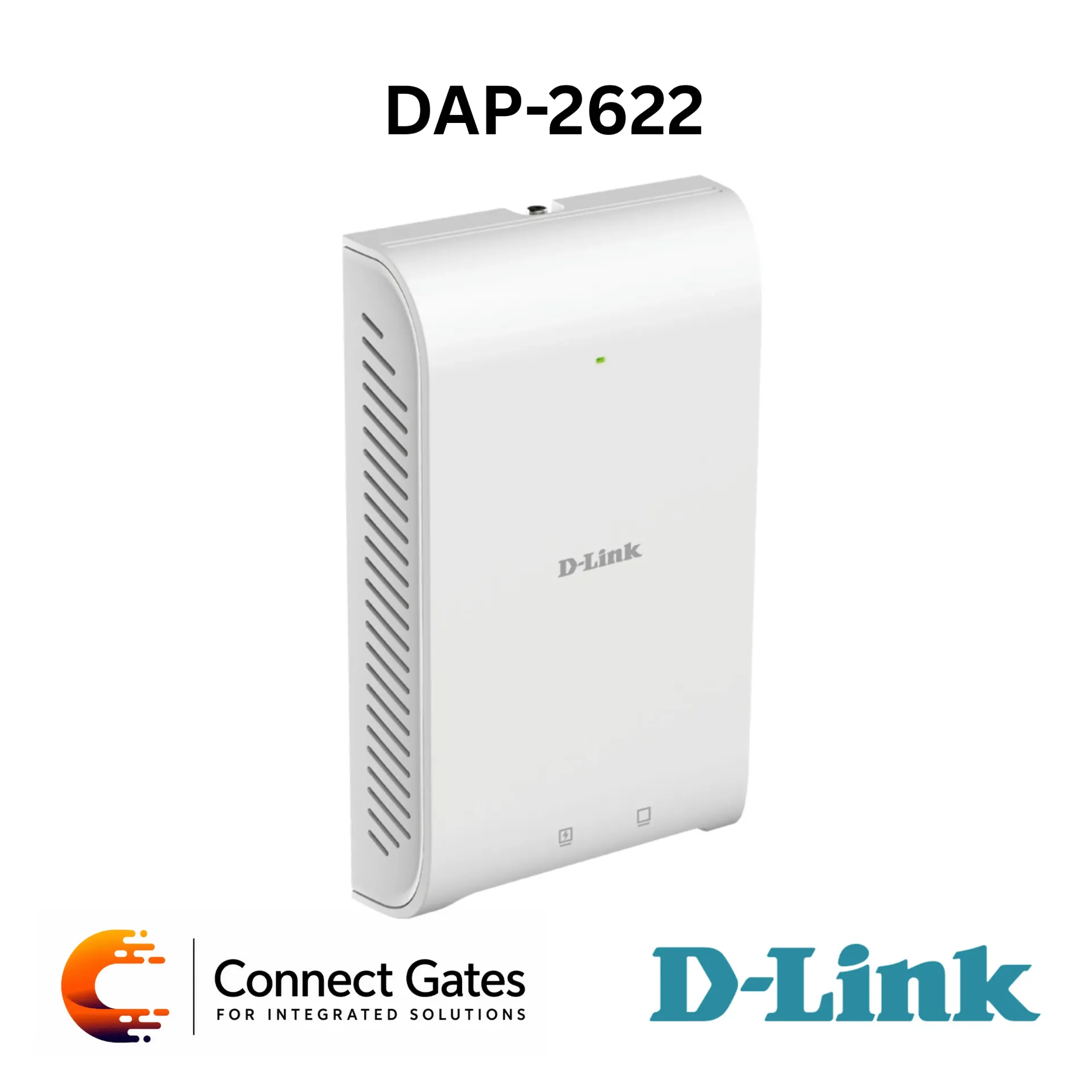

D-Link DAP-2622 – Nuclias Connect AC1200 Wave 2 Wall-Plated Access Point with Gigabit PoE Uplink, PoE Out, 3 LAN Ports, Captive Portal & Nuclias Connect Management
Overview:
• The D-Link DAP-2622 is a Nuclias Connect AC1200 Wave 2 Wall-Plated Access Point designed to convert any Ethernet wall socket into a high-speed Wi-Fi access point.
• It supports IEEE 802.11ac Wave 2 wireless with simultaneous dual-band 2×2 MIMO technology, delivering total wireless throughput up to 1200Mbps.
• The wall-plate design makes it suitable for hotels, offices, dormitories, meeting rooms, classrooms, clinics, and rooms where clean wall-mounted Wi-Fi installation is required.
• The access point includes 1 × Gigabit PoE uplink port, 1 × Gigabit PoE Out downlink port, and 1 × Gigabit Ethernet downlink port, providing flexible wired connectivity for room devices.
• It supports IEEE 802.3at Power over Ethernet and includes PoE Out support up to 12W for powering compatible PoE devices.
• The DAP-2622 also supports Nuclias Connect management, Captive Portal, WPA / WPA2 Personal and Enterprise, WEP, MAC filtering, WLAN partitioning, internal RADIUS server, traffic control, HTTP, SSL, SSH, Telnet, and multiple AP operation modes.
Key Features:
• Nuclias Connect AC1200 Wave 2 Wall-Plated Access Point.
• Converts Ethernet wall sockets into Wi-Fi access points.
• Supports IEEE 802.11ac Wave 2 wireless.
• Dual-band 2.4GHz and 5GHz operation.
• 2×2 MIMO wireless technology.
• Total wireless throughput up to 1200Mbps.
• 1 × Gigabit PoE uplink port.
• 1 × Gigabit PoE Out downlink port.
• 1 × Gigabit Ethernet downlink port.
• Supports IEEE 802.3at Power over Ethernet.
• PoE Out port supports up to 12W.
• 2 × internal antennas.
• Wall-plate design for Ethernet wall socket installation.
• Compatible with US and EU power outlets.
• Supports Nuclias Connect management.
• Supports web HTTP, SSL, SSH, and Telnet management.
• Supports traffic control.
• Supports WPA / WPA2 Personal and Enterprise.
• Supports 64 / 128-bit WEP encryption.
• Supports SSID broadcast disable.
• Supports MAC address access control.
• Supports internal RADIUS server.
• Supports Captive Portal authentication.
• Supports WLAN partitioning.
• Suitable for hotel rooms, offices, dormitories, and room-based Wi-Fi deployments.
Technical Specifications:
• Product Type: Wall-Plated Access Point
• Brand: D-Link
• Model: DAP-2622
• Wireless Standard: IEEE 802.11a/b/g/n/ac
• Wireless Class: AC1200
• Wireless Technology: 802.11ac Wave 2, 2×2 MIMO
• Data Signal Rate: Up to 1200Mbps
• Operating Frequency: 2.4GHz to 2.4835GHz, 5.15GHz to 5.35GHz
• Device Interfaces: 1 × 10/100/1000Mbps Gigabit PoE Uplink Port, 1 × 10/100/1000Mbps Gigabit PoE Out Downlink Port, 1 × 10/100/1000Mbps Gigabit Ethernet Downlink Port
• Ethernet Standards: IEEE 802.3u / 802.3ab / 802.3az Energy-Efficient Ethernet
• PoE Standard: IEEE 802.3at Power over Ethernet
• PoE Out: Up to 12W Maximum
• Antennas: 2 × Internal Antennas
• Maximum Output Power EIRP: 20dBm at 2.4GHz, 20dBm at 5GHz
• Security: WPA2 / WPA Personal and Enterprise, WEP 64 / 128-bit
• Access Control: SSID Broadcast Disable, MAC Address Access Control, WLAN Partitioning
• Authentication: Captive Portal, 802.1X, RADIUS Server, POP3, LDAP, AD, Internal RADIUS Server
• Network Management: Telnet, Secure Telnet SSH, Web HTTP, SSL, Traffic Control, D-Link Nuclias Connect
• LED Indicator: Power / Status
• Power Supply: IEEE 802.3at PoE
• Maximum Power Consumption: 9.5W, 21.5W including PoE Output
• MTBF: More than 30,000 Hours
• Operating Temperature: 0°C to 40°C
• Storage Temperature: -20°C to 65°C
• Operating Humidity: 10% to 90%
• Storage Humidity: 5% to 95%
• Dimensions: 154.1 × 95 × 27.4 mm
• Weight: 212g without Mounting Base, 250.9g with Mounting Base
• Certifications: CE, FCC
• Order Information: DAP-2622 Nuclias Connect AC1200 Wave 2 Wall-Plated Access Point
Applications:
• Hotel room Wi-Fi deployment.
• Office room and meeting room wireless coverage.
• Dormitories, classrooms, clinics, and hospitality projects.
• Ethernet wall socket conversion to Wi-Fi access point.
• Room-based Wi-Fi with wired LAN connectivity.
• Guest Wi-Fi networks with Captive Portal authentication.
• Managed wireless deployments using D-Link Nuclias Connect.
• Deployments requiring PoE installation and clean wall-mounted design.
• Projects requiring PoE Out to power compatible small PoE devices.
• Business networks requiring VLAN / WLAN partitioning and centralized access point management.
Connect Gates Recommendation:
• Recommended for hotel rooms, offices, dormitories, clinics, and room-based wireless projects requiring clean wall-plate installation.
• Suitable for projects where each room needs dedicated AC1200 Wi-Fi plus wired LAN ports from an existing Ethernet wall socket.
• Best used when the client needs Nuclias Connect management, AC1200 Wave 2 Wi-Fi, Gigabit PoE uplink, PoE Out, Captive Portal, internal RADIUS, traffic control, and secure enterprise authentication.
• For new high-density projects, Connect Gates recommends confirming the room layout, wall box compatibility, PoE switch budget, and whether PoE Out is required before final design.
