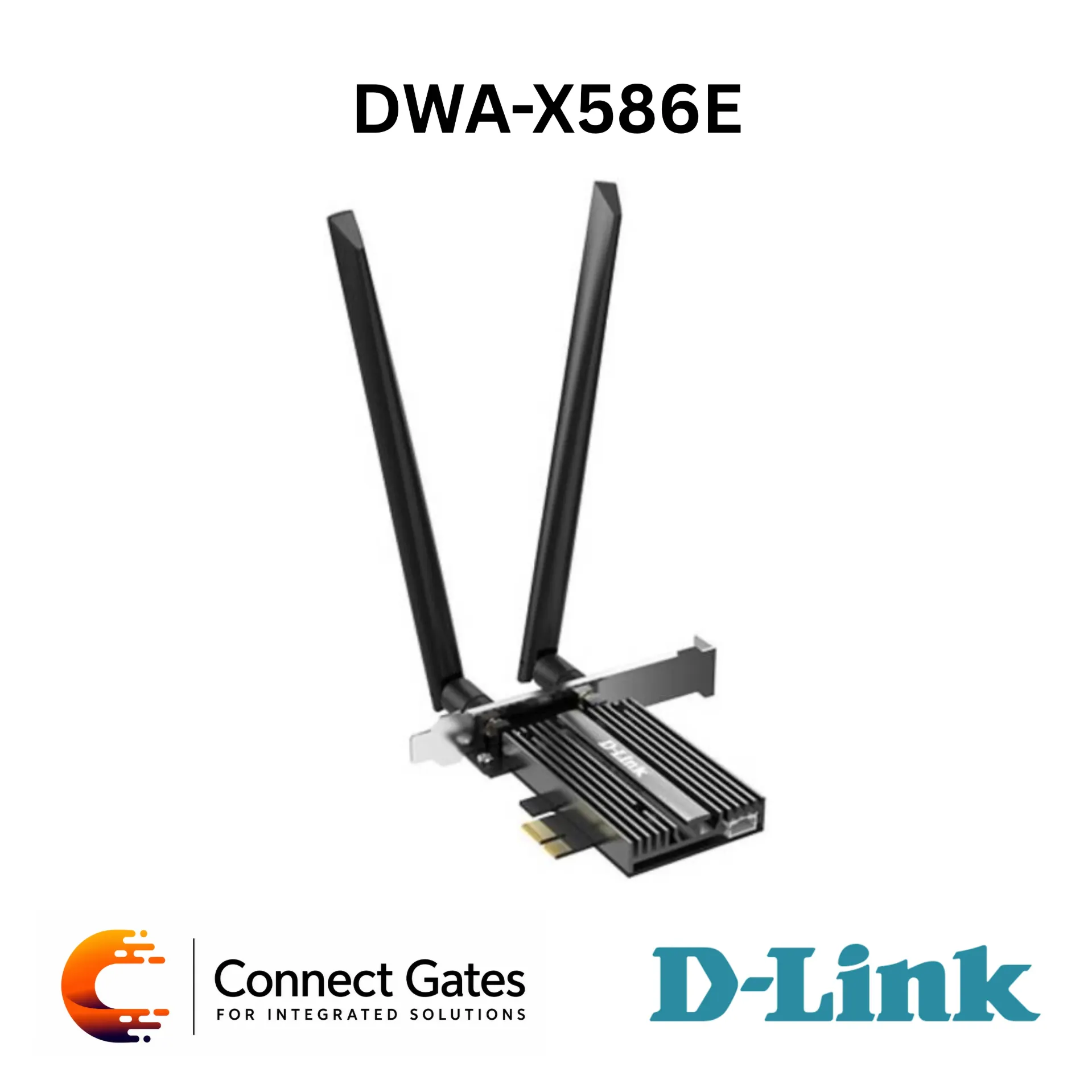

D-Link DWA-X586E – 5400Mbps High Power PCI-E Wireless Adapter with Wi-Fi 6E, Tri-Band Wi-Fi, Bluetooth 5.2, 2×5dBi External Antennas, WPA3 Security, OFDMA & MU-MIMO
Overview:
• The D-Link DWA-X586E is a 5400Mbps High Power PCI-E Wireless Adapter designed to connect desktop computers to high-speed wireless networks.
• It supports Wi-Fi 6E 802.11ax technology and provides tri-band wireless connectivity over 2.4GHz, 5GHz, and 6GHz bands.
• The adapter delivers wireless speeds up to 574Mbps on 2.4GHz, 2400Mbps on 5GHz, and 2400Mbps on 6GHz.
• It is suitable for online gaming, HD video streaming, VoIP calls, fast downloads, and high-performance wireless networking.
• The DWA-X586E also supports Bluetooth 5.2 technology, allowing desktop PCs to connect with compatible Bluetooth devices.
• Two detachable 5dBi antennas help provide stronger and more stable wireless coverage around the home or office.
Key Features:
• Wi-Fi 6E Technology: Supports 802.11ax Wi-Fi 6E for modern high-speed wireless performance.
• Tri-Band Wi-Fi: Supports 2.4GHz, 5GHz, and 6GHz wireless bands.
• High Wireless Speed: Up to 574Mbps on 2.4GHz, 2400Mbps on 5GHz, and 2400Mbps on 6GHz.
• Bluetooth 5.2 Support: Adds Bluetooth connectivity to compatible desktop PCs.
• Two External Antennas: 2×5dBi detachable antennas for stronger reception and possible antenna upgrades.
• Intel AX210 Module: Uses Intel Wi-Fi 6E AX210 module for stable wireless performance.
• OFDMA Technology: Helps communicate more data to more devices while reducing latency.
• MU-MIMO Support: Improves wireless efficiency with compatible routers and devices.
• WPA3 Security: Supports the latest WPA3 encryption for better wireless network protection.
• PCI-E Compatibility: Compatible with PCI-E x1, x4, x8, and x16 slots.
Technical Specifications:
• Product Type: High Power PCI-E Wireless Adapter
• Model: DWA-X586E
• Wireless Technology: Wi-Fi 6E / IEEE 802.11ax
• Interface: PCI-E X1
• Wireless Standards: IEEE 802.11a/b/g/n/ac/ax
• Wireless Bands: Tri-Band 2.4GHz, 5GHz, and 6GHz
• 2.4GHz Wireless Speed: Up to 574Mbps
• 5GHz Wireless Speed: Up to 2400Mbps
• 6GHz Wireless Speed: Up to 2400Mbps
• Main Chipset: AX210-Pro
• Wireless Mode: Station
• Bluetooth: Bluetooth 5.2
• 2.4GHz Frequency Range: 2.4GHz to 2.4835GHz
• 5GHz Frequency Range: 5.15GHz to 5.35GHz
• 2.4GHz EIRP: 18dBm
• 5GHz EIRP: 23dBm
• Antennas: 2 × 5dBi Detachable External Antennas
• Wi-Fi Encryption: WPA2, WPA3
• LED Indicators: Power, Speed, Link, and Activity
• System Requirements: Microsoft Windows 10 / 11, Linux
• Certifications: CE
• Working Temperature: 0°C to 80°C
• Storage Temperature: -40°C to 70°C
• Working Humidity: 10% to 90% RH non-condensing
• Storage Humidity: 50% to 90% RH non-condensing
• Package Contents: PCI-E Adapter, Driver CD, 2 × External Antennas, Quick Installation Guide
Applications:
• Upgrading desktop PCs to Wi-Fi 6E wireless connectivity.
• High-speed internet access using 2.4GHz, 5GHz, and 6GHz bands.
• Online gaming with reduced latency.
• HD video streaming and VoIP phone calling.
• Adding Bluetooth 5.2 connectivity to desktop computers.
• Home office, gaming PCs, and high-performance desktop workstations.
• Suitable for users who need stronger Wi-Fi reception through detachable external antennas.
Connect Gates Recommendation:
• Connect Gates recommends the D-Link DWA-X586E for desktop PC users who need a powerful internal wireless upgrade with Wi-Fi 6E and Bluetooth 5.2 support.
• It is a strong choice for gaming PCs, workstations, and home office desktops that require high-speed tri-band wireless performance.
• The PCI-E interface provides stable internal installation, while the two detachable 5dBi antennas help improve signal strength and wireless coverage.
• With WPA3, OFDMA, MU-MIMO, and Intel AX210 technology, the DWA-X586E is suitable for modern routers and high-performance wireless networks.
• This adapter is recommended for customers who need fast Wi-Fi, low latency, stable connectivity, Bluetooth support, online gaming, streaming, and heavy network usage.
