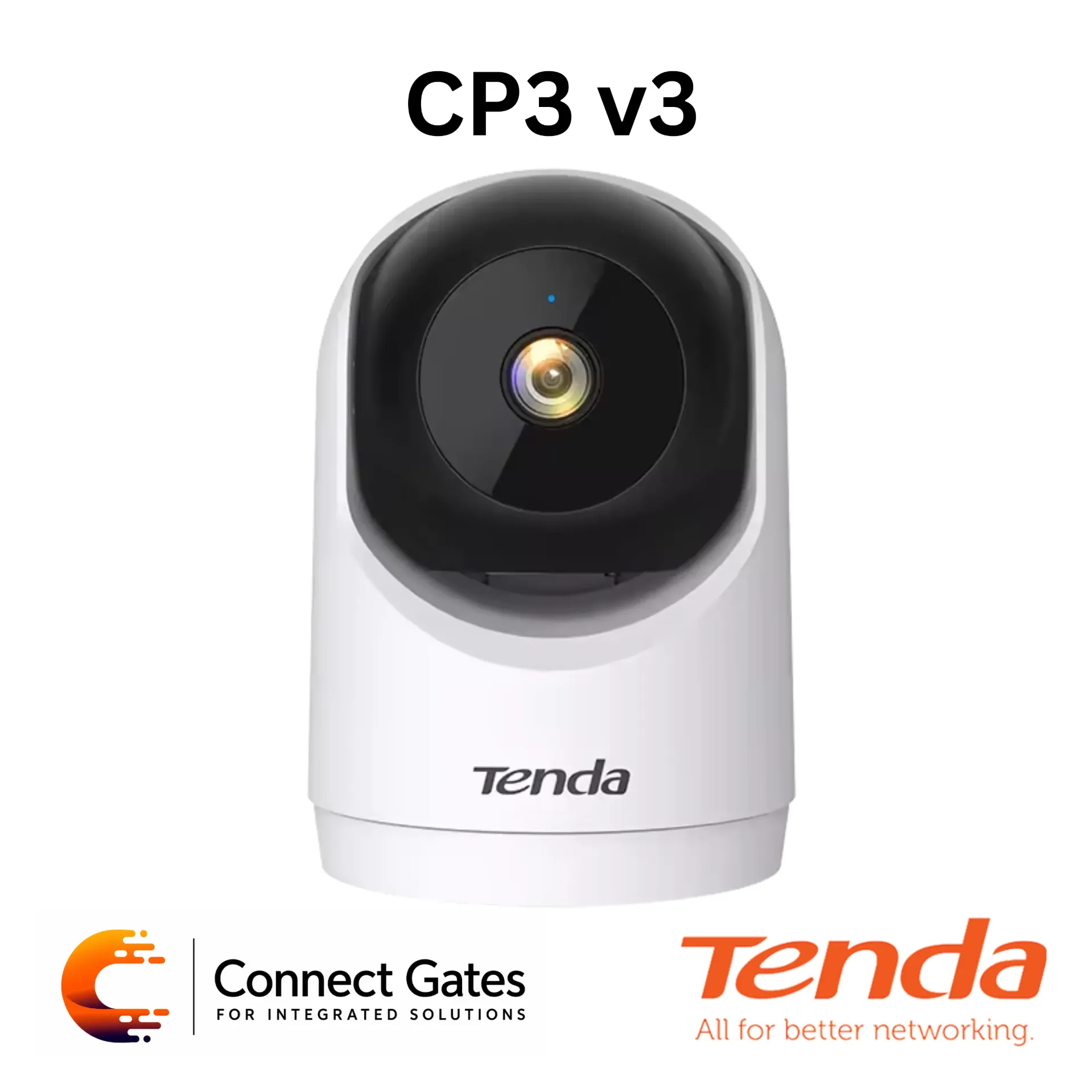

Tenda CP3 V3.0 3MP Security Pan/Tilt Camera – Indoor Wi-Fi 6 Camera with Motion Detection, Tracking & Two-Way Audio
Overview
The Tenda CP3 V3.0 is a 3MP indoor security pan/tilt camera designed for homes, shops, offices, classrooms, and indoor monitoring areas.
It combines 2K HD video, 360° panoramic coverage, Wi-Fi 6 connectivity, motion detection, human detection, motion tracking, two-way audio, privacy scheduling, and Micro SD storage up to 256GB in one compact indoor camera.
Key Features
• 3MP 2K HD resolution provides clear indoor video with 2304 × 1296 image quality.
• 360° panoramic pan/tilt design supports wide indoor coverage with 355° pan and 70° vertical rotation.
• Smart motion detection detects abnormal movement, records video, sends alarm notifications, and supports customized audio alerts.
• Human detection quickly identifies human targets and sends immediate mobile notifications.
• Wi-Fi 6 technology provides smoother video performance and more stable wireless connection.
• Two-way audio with built-in microphone and speaker allows real-time communication.
• Infrared night vision provides clear black-and-white monitoring up to 10m / 30ft without disturbing light.
• Schedule shutter helps protect privacy by controlling monitoring and recording times from the app.
• Preset 6 key locations allows quick viewing of important indoor areas through the TDSEE app.
• Three storage methods support cloud storage, Micro SD card, and NVR/NAS storage.
• ONVIF support allows integration with compatible recording systems.
• USB-C power supply provides easy connection using a modern Type-C power plug.
Technical Specifications
• Model: Tenda CP3 V3.0
• Product Type: 3MP Security Pan/Tilt Camera
• Image Sensor: 1/3" Progressive Scan CMOS
• Lens: 4mm / F2.0
• Field of View: Horizontal 84° / Vertical 53.1° / Diagonal 91.1°
• Video Compression: H.265
• Maximum Resolution: 2304 × 1296
• Main Resolution: 2304 × 1296
• Sub Resolution: 640 × 360
• Frame Rate: 1–20fps, Default 20fps
• Night Vision Mode: Black & White Mode
• Supplementary Light: 4 IR Lights
• Night Vision Distance: Up to 10m / 30ft
• Audio: Two-Way Audio
• Ethernet Port: Not Supported
• Wi-Fi Standard: IEEE 802.11 b/g/n/ax
• Wi-Fi Frequency: 2.4GHz
• Transmission Rate: Up to 287Mbps
• ONVIF: Supported
• Pan Range: 0°–355°
• Tilt Range: -15°–55°
• Presets: 6
• Detection: Motion / Human Detection
• Smart Linkage: Motion Tracking
• Storage: Micro SD Card up to 256GB
• Power: 5V 1A Type-C
• Installation: Desktop / Ceiling-Mounted
• Operating Temperature: -10°C to 45°C
Applications
• Homes and apartments.
• Shops and small offices.
• Classrooms and reception areas.
• Indoor security monitoring.
• Family activity monitoring.
• General room monitoring.
• Small business monitoring.
Connect Gates Recommendation
Connect Gates recommends the Tenda CP3 V3.0 for indoor monitoring projects that need 3MP 2K video, Wi-Fi 6 stability, motion tracking, two-way audio, and privacy control. It is a practical choice for homes, shops, offices, classrooms, and general indoor security applications.
