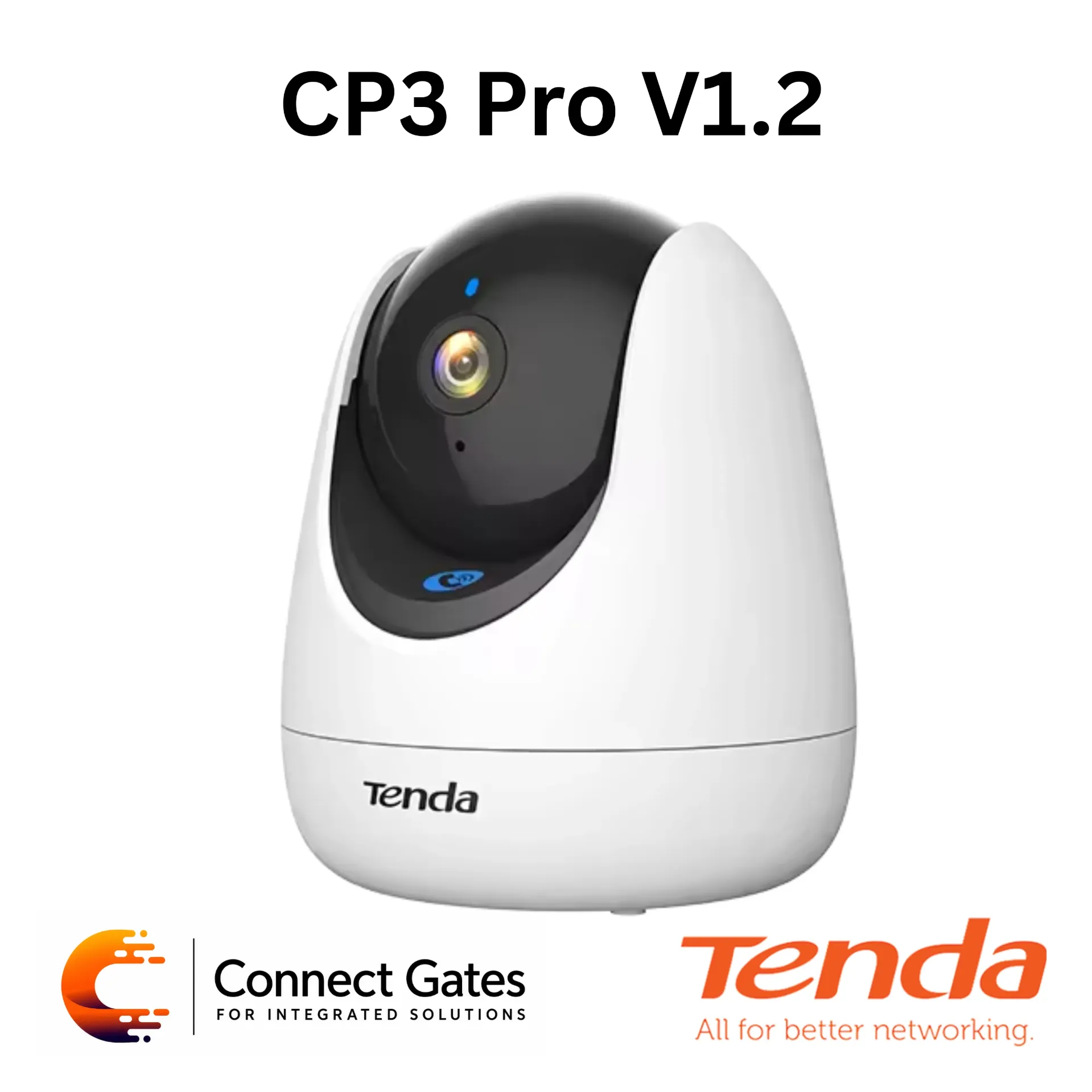

Tenda CP3 Pro V1.2 3MP Security Pan/Tilt Camera – Indoor Wi-Fi 6 Camera with Smart Tracking, One-Touch Call & Two-Way Audio
Overview
The Tenda CP3 Pro V1.2 is a 3MP indoor security pan/tilt camera designed for homes, shops, offices, classrooms, and indoor monitoring areas.
It combines 3MP video, 360° visual coverage, Wi-Fi 6 connectivity, human detection, cry detection, one-touch call, two-way audio, smart tracking, privacy shield, and USB-C power in one compact indoor camera.
Key Features
• 3MP high-definition resolution provides clear indoor video with 2304 × 1296 maximum resolution.
• 360° pan/tilt coverage supports wide room monitoring with 355° pan and flexible vertical movement.
• Human detection and scene change detection help provide smarter security alerts.
• Cry detection monitors baby crying and sends instant notifications through the mobile app.
• One-touch call button allows children or elderly users to call family members directly from the camera.
• Auto targeting and tracking follows moving people and records important video events.
• Wi-Fi 6 technology provides smoother video performance and lower network delay.
• Bluetooth pairing makes setup faster without QR code scanning or Wi-Fi switching.
• Physical privacy shield can be activated or scheduled from the TDSEE app.
• Two-way audio with built-in microphone and speaker for real-time communication.
• Three storage options support Micro SD card, cloud storage, and NVR storage.
• USB-C power supply provides easy connection using a modern Type-C power plug.
Technical Specifications
• Model: Tenda CP3 Pro V1.2
• Product Type: 3MP Security Pan/Tilt Camera
• Image Sensor: 1/3" Progressive Scan CMOS
• Lens: 4mm / F2.0
• Field of View: Horizontal 79.7° / Vertical 50° / Diagonal 87.6°
• Video Compression: H.265 / H.264
• Maximum Resolution: 2304 × 1296
• Main Resolution: 2304 × 1296 / 1920 × 1080 / 1280 × 720
• Sub Resolution: 640 × 360
• Frame Rate: 1–30fps, Default 20fps
• Night Vision Mode: Black & White Mode
• Supplementary Light: 2 IR Lights
• Night Vision Distance: Up to 10m / 32ft
• Audio: Two-Way Audio / One-Touch Call
• Audio Output: Built-in Speaker, 68dBA Alarm Sound at 1m
• Ethernet Port: 1 × RJ45 10/100Mbps
• Wi-Fi Standard: IEEE 802.11 b/g/n/ax
• Wi-Fi Frequency: 2.4GHz
• Transmission Rate: Up to 287Mbps
• ONVIF: Supported
• App Client: TDSEE
• Pan Range: 0°–355°
• Tilt Range: -65°–90°
• Presets: 6
• Detection: Human / Cry / Scene Change Detection
• Smart Linkage: Sound & Light Alert / Human Tracking
• Storage: Micro SD Card up to 512GB
• Smart Integration: Amazon Alexa
• Power: 5V 1A Type-C
• Installation: Desktop / Ceiling-Mounted
• Operating Temperature: -10°C to 45°C
Applications
• Homes and apartments.
• Shops and small offices.
• Classrooms and reception areas.
• Baby and child monitoring.
• Elderly care monitoring.
• Indoor security monitoring.
• General indoor activity monitoring.
Connect Gates Recommendation
Connect Gates recommends the Tenda CP3 Pro V1.2 for indoor monitoring projects that need 3MP video, Wi-Fi 6 stability, smart tracking, cry detection, and one-touch calling. It is a practical choice for homes, shops, offices, classrooms, baby rooms, and family safety applications.
