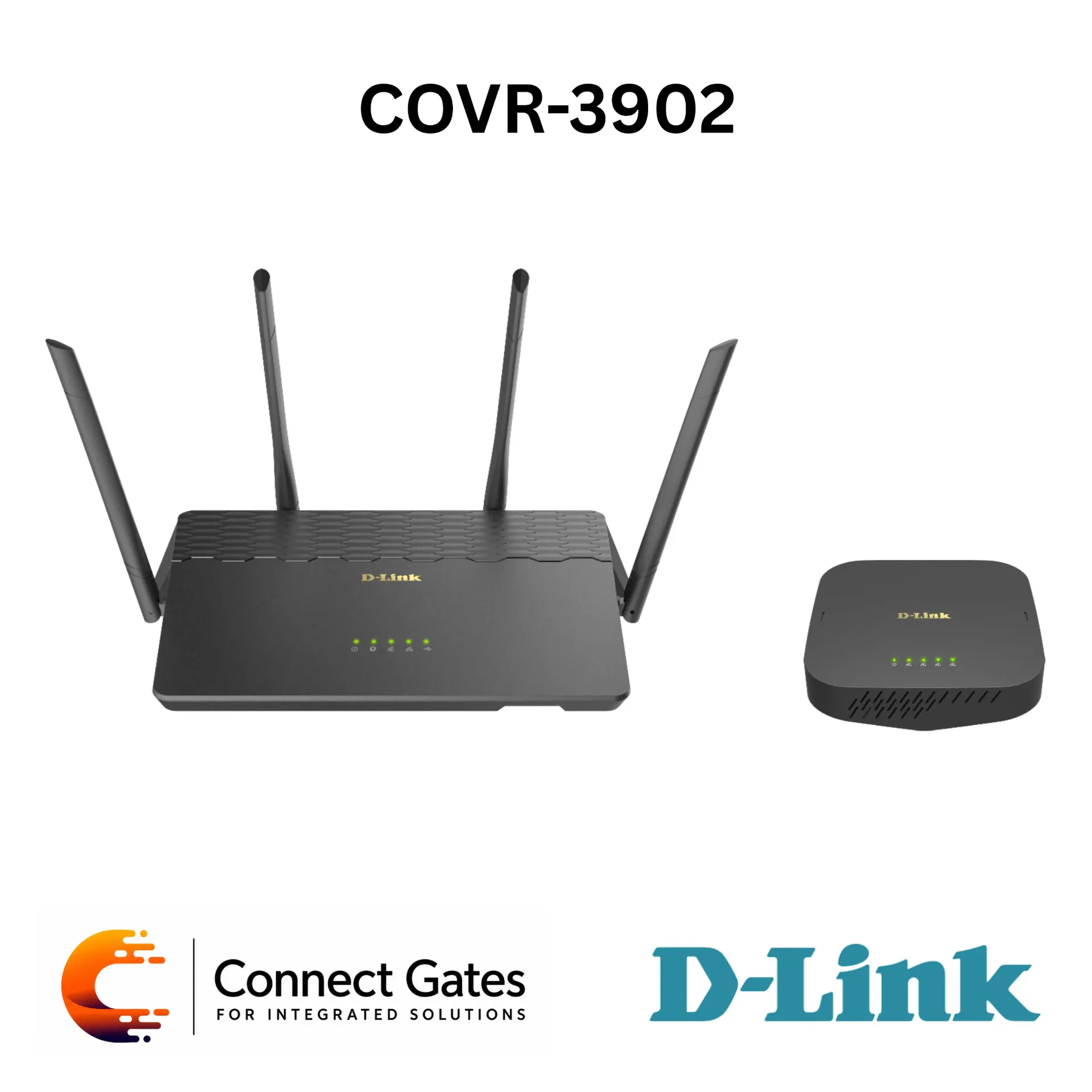

D-Link COVR-3902 – AC3900 Whole Home Wi-Fi System with AC2600 Router, AC1300 Range Extender, Seamless Roaming, 4x4 MU-MIMO & Gigabit Ethernet
Overview:
• The D-Link COVR-3902 is an AC3900 Whole Home Wi-Fi System designed to provide seamless high-power Wi-Fi coverage across large homes and multi-floor spaces.
• The system includes one COVR-2600R AC2600 Wi-Fi Router and one COVR-1300E AC1300 Wi-Fi Range Extender.
• It creates a single seamless Wi-Fi network using one network name SSID, helping eliminate dropouts, dead spots, and interrupted connections.
• Adaptive roaming automatically connects devices to the strongest available signal while moving around the home.
• The COVR-2600R router creates a high-power PowrZone with wireless speeds up to 2533Mbps, while the COVR-1300E extender extends coverage to outer areas with speeds up to 1267Mbps.
• Smart Wi-Fi Band Steering automatically places devices on the optimal 2.4GHz or 5GHz band depending on network conditions.
• 4x4 MU-MIMO technology improves speed and efficiency by communicating with multiple devices at the same time.
• The system supports expandable coverage by adding extra compatible extenders where needed.
• Suitable for villas, large apartments, townhouses, mansions, multi-floor homes, streaming, online gaming, VoIP, smart devices, and whole-home wireless coverage.
Key Features:
• AC3900 Whole Home Wi-Fi System
• Includes COVR-2600R AC2600 Wi-Fi Router
• Includes COVR-1300E AC1300 Wi-Fi Range Extender
• Whole Home Wi-Fi Coverage up to 6,000 sq.ft
• One Seamless Network with Single SSID
• Adaptive Roaming Technology
• Seamless Roaming Multiple AP Steering
• Smart Wi-Fi Band Steering
• 4x4 MU-MIMO Technology
• Expandable Network Support
• High-Power Wi-Fi Router PowrZone
• COVR-2600R Wireless Speed up to 2533Mbps
• COVR-1300E Wireless Speed up to 1267Mbps
• Gigabit Ethernet WAN Port on Router
• Four Gigabit LAN Ports on Router
• Two Gigabit LAN Ports on Extender
• USB 3.0 Port on Router
• QoS Quality of Service
• Air Time Fairness ATF
• Adaptive Path Selection APS
• Smart Connect Support
• AP Steering Load Balancing
• WPA / WPA2 Wireless Security
• WPS Wi-Fi Protected Setup
• NAT Firewall and DMZ
• Wi-Fi Multimedia WMM
• Web Setup Wizard
• D-Link Wi-Fi Mobile App Support
Technical Specifications:
• Product Type: Whole Home Mesh Wi-Fi System
• Brand: D-Link
• Model: COVR-3902
• System Class: AC3900
• Included Router: COVR-2600R AC2600 Wi-Fi Router
• Included Extender: COVR-1300E AC1300 Wi-Fi Range Extender
• Coverage: Up to 6,000 sq.ft
• Wireless Standard: IEEE 802.11ac/n/g/b/a
• Wi-Fi Network: Single Seamless Network SSID
• Roaming: Adaptive Roaming / Seamless Roaming
• Band Steering: Smart Wi-Fi Band Steering / Smart Connect
• MU-MIMO: 4x4 MU-MIMO Technology
• Security: WPA, WPA2, WPS
• Management: Web-Based Interface, D-Link Wi-Fi Mobile App
• Expandable Network: Supported by Adding Compatible Extenders
COVR-2600R Router Specifications:
• Router Type: AC2600 Wi-Fi Router
• Router Wi-Fi Speed: Up to 2533Mbps
• 2.4GHz Data Rate: Up to 800Mbps
• 5GHz Data Rate: Up to 1733Mbps
• Router LAN Ports: 4 × 10/100/1000 Gigabit Ethernet LAN Ports
• Router WAN Port: 1 × 10/100/1000 Gigabit Ethernet WAN Port
• USB Port: 1 × USB 3.0 Port
• Antenna Type: Four External Antennas
• Router LEDs: Power, Internet, 2.4GHz Wi-Fi Band, 5GHz Wi-Fi Band, USB
• Router Buttons: Power Button, Wireless On/Off Button, WPS Button, Pin-Sized Reset Button
• Router Advanced Features: QoS, DMZ, Air Time Fairness, Seamless Roaming, Adaptive Path Selection, NAT Firewall, WMM, MU-MIMO, Smart Band Steering, AP Steering Load Balancing
• Router Standards: IEEE 802.11ac, 802.11n, 802.11g, 802.11b, 802.11a, 802.3ab, 802.3u, Auto Negotiation, Auto MDI/MDIX
• Router Dimensions: 287.21 × 205.86 × 52.62 mm
• Router Weight: 826g
• Router Power Adapter: 12V / 3A
COVR-1300E Extender Specifications:
• Extender Type: AC1300 Wi-Fi Range Extender
• Extender Wi-Fi Speed: Up to 1267Mbps
• 2.4GHz Data Rate: Up to 400Mbps
• 5GHz Data Rate: Up to 866Mbps
• Extender LAN Ports: 2 × 10/100/1000 Gigabit Ethernet LAN Ports
• Antenna Type: Two Internal Antennas
• Extender LEDs: Power, 2.4GHz Uplink Strength, 5GHz Uplink Strength, 5GHz Downlink Strength, 2.4GHz Downlink Strength
• Extender Buttons: Power Button, WPS Button, Wireless On/Off Button, Pin-Sized Reset Button
• Extender Advanced Features: Wi-Fi Multimedia WMM
• Extender Standards: IEEE 802.11ac, 802.11n, 802.11g, 802.11b, 802.11a, 802.3ab, 802.3u, Auto Negotiation, Auto MDI/MDIX
• Extender Dimensions: 134 × 134 × 32.6 mm
• Extender Weight: 322g
• Extender Power Adapter: 12V / 1A
System Physical & Environmental:
• Operating Temperature: 0°C to 40°C
• Non-Operating Temperature: -20°C to 65°C
• Operating Humidity: 10% to 90% Non-Condensing
• Non-Operating Humidity: 5% to 95% Non-Condensing
• Certifications: FCC, IC, CE, CSA, Wi-Fi Certified
Applications:
• Whole home Wi-Fi coverage
• Villas and large apartments
• Multi-floor homes
• Townhouses and mansions
• Home office Wi-Fi coverage
• HD streaming and 4K streaming
• Online gaming
• VoIP and video calls
• Smart home device connectivity
• Eliminating Wi-Fi dead spots
• Seamless roaming between rooms
• Expanding Wi-Fi coverage with additional extenders
• Wired Gigabit connectivity for NAS, gaming consoles and media centers
Connect Gates Recommendation:
• Recommended for customers who need a complete whole-home Wi-Fi system with stronger coverage than a single router.
• Suitable for large homes, villas, duplexes, multi-floor buildings, and users who need seamless roaming, high Wi-Fi performance, Gigabit wired ports, and expandable coverage.
