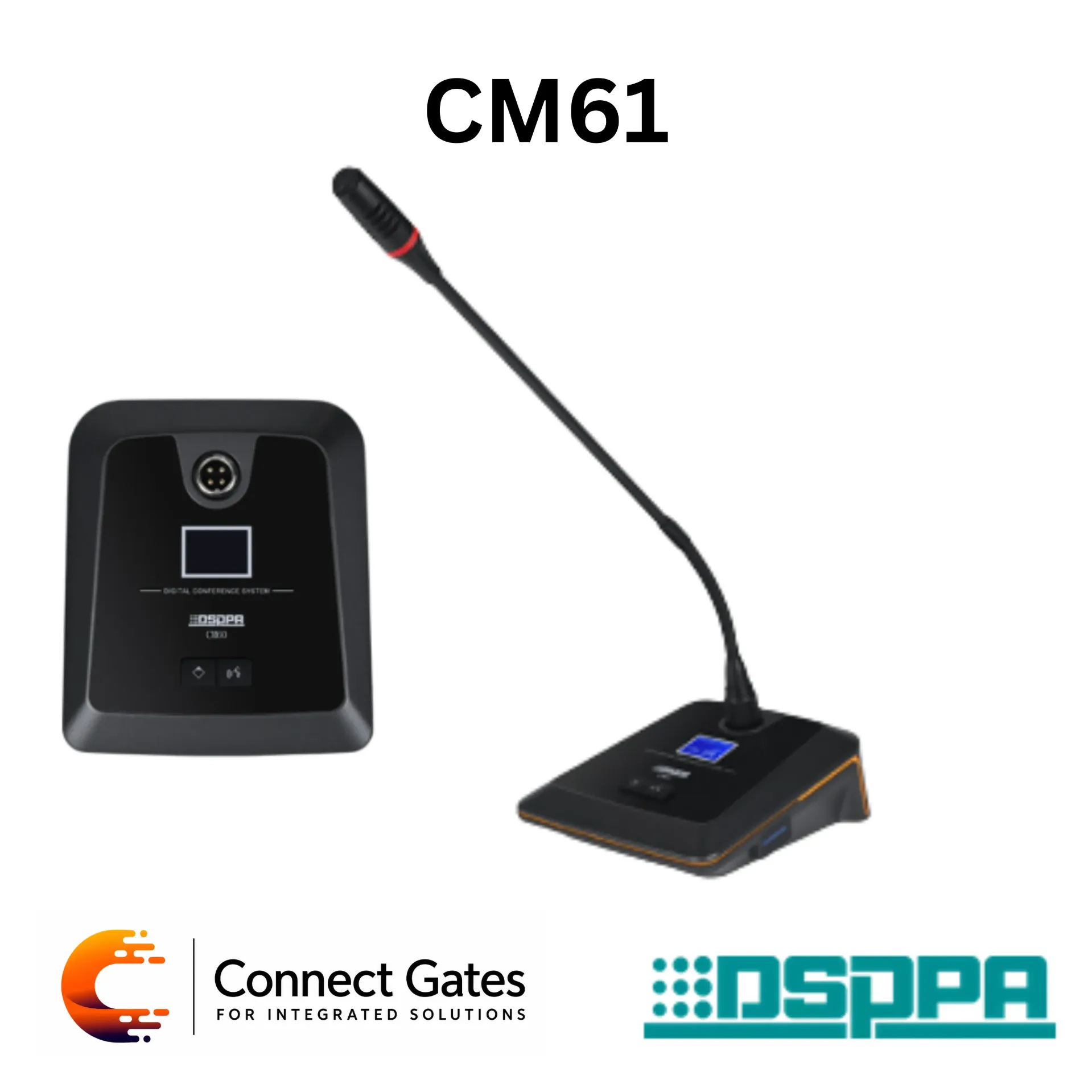

DSPPA CM61 – Digital Conference System Gooseneck Delegate Microphone with OLED Display, Speaking Light Ring & Cardioid Pickup
Overview:
• The DSPPA CM61 is a digital conference system gooseneck delegate microphone designed for professional meeting and conference room applications.
• It works as a delegate microphone unit within the DSPPA digital conference system and integrates with the MP9866 Digital Conference System Host.
• Provides clear and reliable audio pickup with 30Hz–20kHz frequency response and -42dB ± 2dB sensitivity.
• Features a cardioid directional condenser pickup to focus on the speaker’s voice and improve speech clarity.
• Designed with anti-interference circuit protection against mobile phones, Wi-Fi, Bluetooth, and FM broadcasts.
• Equipped with a speaking light ring to show the speaking and off status of the microphone unit.
• Includes a 1.23-inch OLED display to show the current working status.
• Supports audio start function, allowing the microphone unit to turn on automatically when speaking.
• The unit is powered by the system host and connected using 8-core dedicated aviation T-type cable or network cable.
• Designed to complement the CM60 chairman microphone for a complete professional conference management system.
Key Features:
• Digital Conference Delegate Microphone
• Compatible with DSPPA MP9866 Conference System Host
• Cardioid Directional Condenser Pickup
• 30Hz–20kHz Frequency Response
• -42dB ± 2dB Sensitivity
• 430mm Gooseneck Microphone Rod
• 300mm Reference Speaking Distance
• Speaking Light Ring
• 1.23-Inch OLED Display
• Audio Start Function
• Anti-Interference Circuit Design
• Low Sensitivity to Mobile Phone, Wi-Fi, Bluetooth, and FM Interference
• Dual Backup Connection Design
• Powered by System Host
• 8-Core Dedicated Aviation T-Type Cable or Network Cable Connection
• Suitable for Professional Conference and Meeting Systems
Technical Specifications:
• Product Type: Digital Conference Delegate Microphone
• Brand: DSPPA
• Model: CM61
• System Type: Digital Conference System
• Compatible Host: DSPPA MP9866
• Microphone Type: Gooseneck Delegate Microphone
• Pickup Type: Cardioid Directional Condenser Pickup
• Frequency Response: 30Hz–20kHz
• Sensitivity: -42dB ± 2dB
• Gooseneck Microphone Rod Length: 430 mm
• Reference Speaking Distance: 300 mm
• Display: 1.23-Inch OLED Display
• Speaking Indicator: Speaking Light Ring
• Audio Start Function: Supported
• Connection Type: 8-Core Dedicated Aviation T-Type Cable or Network Cable
• Power Supply: Powered by System Host
• Device Type: Passive Device
• Anti-Interference: Mobile Phone / Wi-Fi / Bluetooth / FM Broadcast Interference Protection
• Microphone Indication Functions: Microphone Capsule / Display / Microphone Switch
• Application: Conference System / Meeting Room / Boardroom / Professional Audio Meeting System
Applications:
• Conference Rooms
• Boardrooms
• Meeting Rooms
• Government Meeting Halls
• Corporate Offices
• Hotels
• Universities
• Training Centers
• Lecture Halls
• Auditoriums
• Council Rooms
• Professional Discussion Systems
• Digital Conference Audio Systems
Connect Gates Recommendation:
• Recommended for professional conference rooms that require clear delegate voice pickup and organized participant discussion.
• Suitable for projects using the DSPPA MP9866 Digital Conference System Host with CM60 chairman units.
• For complete conference system integration, Connect Gates recommends using CM61 delegate microphones with CM60 chairman microphone, MP9866 host controller, recording output, and suitable sound reinforcement system.
