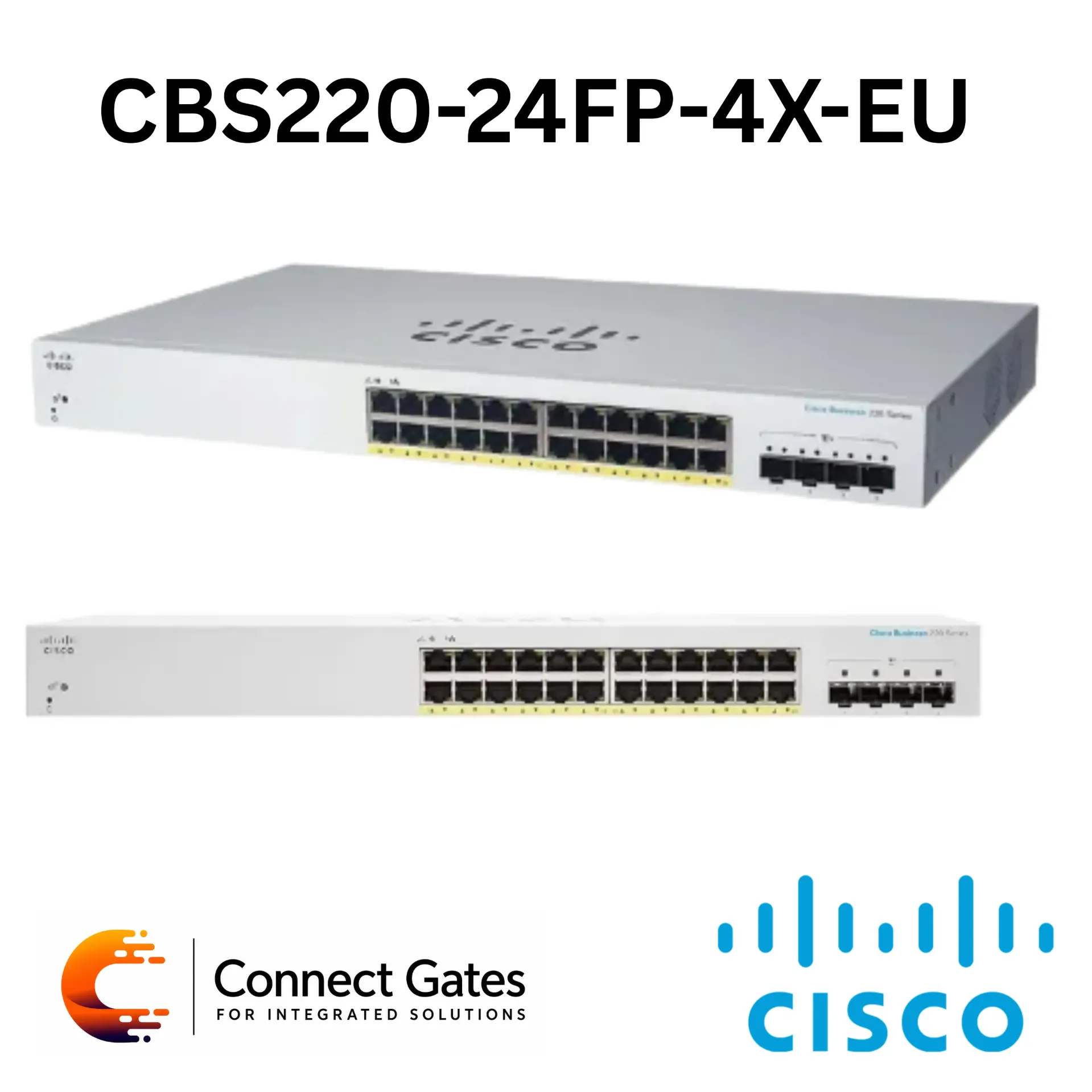

Cisco Business CBS220-24FP-4X-EU – 24-Port Gigabit PoE+ Smart Switch with 4 × 10G SFP+ Uplinks & 382W PoE Budget
Overview:
• The Cisco Business CBS220-24FP-4X-EU is a 24-port Gigabit PoE+ smart managed switch designed for SMB, office, CCTV, Wi-Fi, VoIP, and professional business network deployments
• It provides 24 × 10/100/1000 PoE+ ports for connecting and powering IP cameras, wireless access points, VoIP phones, and access control devices
• The switch includes 4 × 10G SFP+ uplink ports, providing high-speed fiber uplinks for aggregation and backbone connectivity
• It supports PoE+ up to 30W per port, with a total 382W PoE power budget
• Cisco Business 220 Series switches support web-based management, Cisco Business Dashboard, VLAN, QoS, ACLs, security features, and business-class reliability for small business networks
Key Features:
• 24 × Gigabit PoE+ RJ-45 ports
• 4 × 10G SFP+ uplink ports
• 382W total PoE power budget
• Up to 30W PoE per port
• Cisco Business smart managed switch
• 128Gbps switching capacity
• 95.23Mpps forwarding rate
• 8K MAC address table
• VLAN support
• QoS traffic prioritization
• ACL security support
• STP / RSTP / MSTP support
• IGMP snooping support
• Web-based smart management
• Cisco Business Dashboard support
• Rackmount design
• Suitable for CCTV, access points, VoIP, access control, and business networks
Technical Specifications:
• Brand: Cisco
• Model: CBS220-24FP-4X-EU
• Series: Cisco Business 220 Series
• Product Type: Smart Managed PoE+ Gigabit Switch
• Downlink Ports: 24 × 10/100/1000BASE-T PoE+
• Uplink Ports: 4 × 10G SFP+
• Total System Ports: 24 Gigabit Ethernet + 4 × 10 Gigabit Ethernet
• PoE Support: Yes
• PoE Standards: IEEE 802.3af / IEEE 802.3at
• Maximum PoE Power Per Port: 30W
• Total PoE Power Budget: 382W
• Switching Capacity: 128Gbps
• Forwarding Rate: 95.23Mpps
• MAC Address Table: Up to 8,192 entries
• Flash Memory: 64MB
• CPU Memory: 256MB
• Packet Buffer: 4.1Mb
• Management: Web / Cisco Business Dashboard / Cisco Business Mobile App
• Switching Features: VLAN / QoS / ACL / STP / RSTP / MSTP / IGMP Snooping
• System Power Consumption: 39.6W
• Power Consumption with PoE: 470W at 110V / 456.4W at 220V
• Heat Dissipation: 1,603.71 BTU/hr
• Fans: 2
• Acoustic Noise: 44.2dB at 25°C
• Operating Temperature: 0°C to 50°C
• Operating Humidity: 10% to 90% RH, Non-Condensing
• Storage Temperature: -20°C to +70°C
• Regional Suffix: EU
Applications:
• CCTV IP camera systems
• Wireless access point deployments
• VoIP phone systems
• Access control systems
• Office wired network expansion
• Retail stores and professional offices
• Network racks and distribution cabinets
• 10G fiber uplink connections
• SMB smart managed PoE networks
• Low-current and security systems
Connect Gates Recommendation:
• Recommended for SMB projects that need a strong 24-port Gigabit PoE+ smart switch with high PoE capacity and 10G uplinks
• Suitable for CCTV cameras, wireless APs, VoIP phones, and access control devices where centralized PoE power is required
• A strong choice when 24 PoE+ ports, 382W PoE budget, 4 × 10G SFP+ uplinks, and Cisco Business smart management are required
