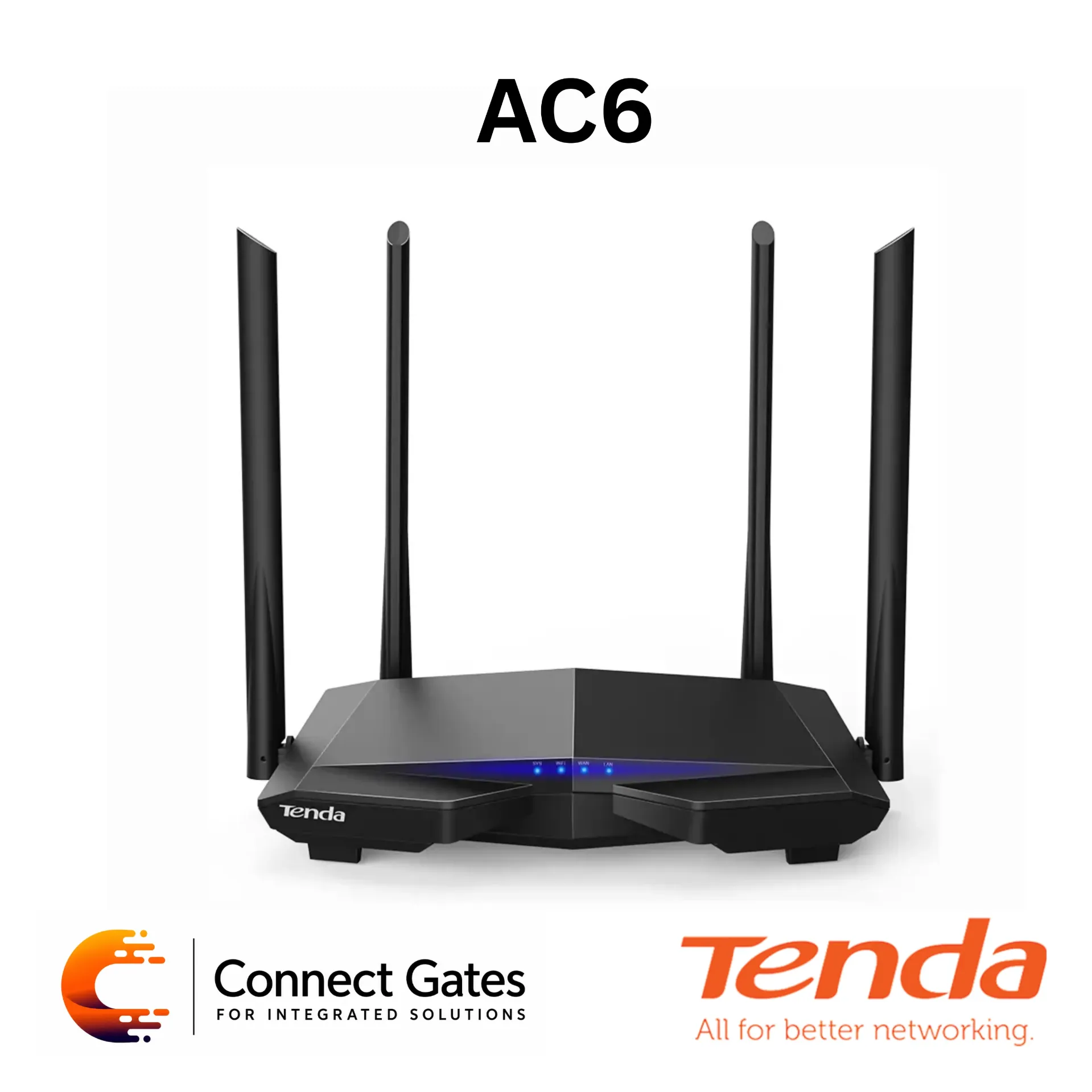

Tenda AC6 – AC1200 Smart Dual-Band Wi-Fi Router with 1167Mbps Speed, 4 × 6dBi Antennas, MU-MIMO & Beamforming+
Overview:
• The Tenda AC6 is an AC1200 Smart Dual-Band Wi-Fi Router designed for home users who need stable wireless coverage, faster internet performance, and easy network management
• It supports IEEE 802.11ac dual-band Wi-Fi with total wireless speed up to 1167Mbps, including 867Mbps on 5GHz and 300Mbps on 2.4GHz
• Equipped with 4 × 6dBi high-gain external dual-band antennas and high-powered amplifiers to improve whole-home Wi-Fi coverage and wall penetration
• Beamforming+ technology helps focus the Wi-Fi signal toward connected devices for better range and connection stability
• MU-MIMO technology allows the router to communicate with more wireless devices simultaneously for smoother multi-device performance
• Includes Smart WiFi Schedule, Smart Power Saving, Smart LED on/off, Tenda App, Tenda Cloud, PPPoE username/password clone, guest network, IPTV, VPN pass-through, DDNS, and remote web management features
Key Features:
• AC1200 Smart Dual-Band Wi-Fi Router
• Up to 1167Mbps total wireless speed
• 867Mbps on 5GHz and 300Mbps on 2.4GHz
• IEEE 802.11ac dual-band wireless support
• 4 × 6dBi external dual-band antennas
• High-powered amplifiers for stronger wall penetration
• Realtek chipset for stable Wi-Fi connection
• Beamforming+ technology
• MU-MIMO technology
• 1 × 10/100Mbps WAN port
• 3 × 10/100Mbps LAN ports
• Wireless Router Mode, Universal Repeater Mode and WISP Mode
• WPA-PSK / WPA2-PSK wireless security
• WPS fast encryption
• Smart WiFi Schedule and Smart Power Saving
• PPPoE username/password clone
• Tenda App and Tenda Cloud support
• Guest Network, IPTV, DDNS, VPN pass-through and Remote Web Management
Technical Specifications:
• Brand: Tenda
• Model: AC6
• Product Type: AC1200 Smart Dual-Band Wi-Fi Router
• Network Standards: IEEE 802.3, IEEE 802.3u
• Wireless Standards: IEEE 802.11ac/a/n 5GHz, IEEE 802.11b/g/n 2.4GHz
• Frequency Bands: Simultaneous dual-band 2.4GHz and 5GHz
• Frequency Range: 2.4GHz 2.412–2.472GHz, 5GHz 5.150–5.350GHz
• Data Rate: 5GHz up to 867Mbps, 2.4GHz up to 300Mbps
• Total Wireless Speed: Up to 1167Mbps
• Antenna: 4 × 6dBi External Dual-Band Antennas
• Interface: 1 × 10/100Mbps WAN Port, 3 × 10/100Mbps LAN Ports
• Button: 1 × WiFi / RST Button
• LED Indicators: System, WAN, LAN, WiFi
• Power Output: DC 9V / 1A
• Wireless Security: WPA-PSK / WPA2-PSK, WPA / WPA2, Wireless Security Enable / Disable
• WPS: WiFi Protected Setup Fast Encryption
• Basic Wireless Features: SSID Broadcast Enable / Disable, Transmission Power High / Medium / Low, Beamforming, MU-MIMO
• Internet Connection Type: PPPoE, Dynamic IP, Static IP, PPPoE Russia, PPTP Russia, L2TP Russia
• Operating Modes: Wireless Router Mode, Universal Repeater Mode, WISP Mode
• DHCP: DHCP Server, DHCP Client List, DHCP Reservation
• Security Functions: Client Filter, Parental Control with blacklist and whitelist, Remote Web Management
• Virtual Server: Port Forwarding, DMZ Host, UPnP
• Firewall: UDP Flood Attack Defense, TCP Flood Attack Defense, Flood Attack Defense, WAN Ping Blocking
• DDNS: DynDNS, Oray.com, 88ip
• VPN: IPsec Pass Through, PPTP Pass Through, L2TP Pass Through
• Special Features: PPPoE Username/Password Clone, Smart WiFi Schedule, Smart Power Saving, Smart LED On/Off, Tenda Cloud, Tenda App
• Other Functions: Bandwidth Control, Guest Network, IPTV, MAC Clone, Static Routing, System Log, Backup & Restore Configurations, Online Firmware Upgrade, Firmware Upgrade via Browser
• Default Access: tendawifi.com
• Dimensions: 220 × 141.5 × 49mm
• Net Weight: 340g ±50g
• Package Weight: 700g ±100g
• Operating Temperature: 0°C to 40°C
• Storage Temperature: -40°C to 70°C
• Operating Humidity: 10% to 90% RH non-condensing
• Storage Humidity: 5% to 90% RH non-condensing
• Certifications: CE, FCC, RoHS
• Package Contents: AC1200 Smart Dual-Band WiFi Router, Power Adapter, Install Guide, Ethernet Cable
Applications:
• Home dual-band Wi-Fi coverage
• Online gaming and HD / 4K streaming
• Small office wireless internet sharing
• Multi-device wireless connectivity
• Repeater and WISP network extension
• Guest Wi-Fi access
• IPTV home network deployment
• App-based router management
Connect Gates Recommendation:
• Recommended by Connect Gates for home users who need an affordable AC1200 dual-band router with strong antennas, Beamforming+, MU-MIMO, and easy app-based management
• Suitable for apartments, homes, and small offices that require stable Wi-Fi coverage, smoother streaming, better multi-device performance, and simple setup features
