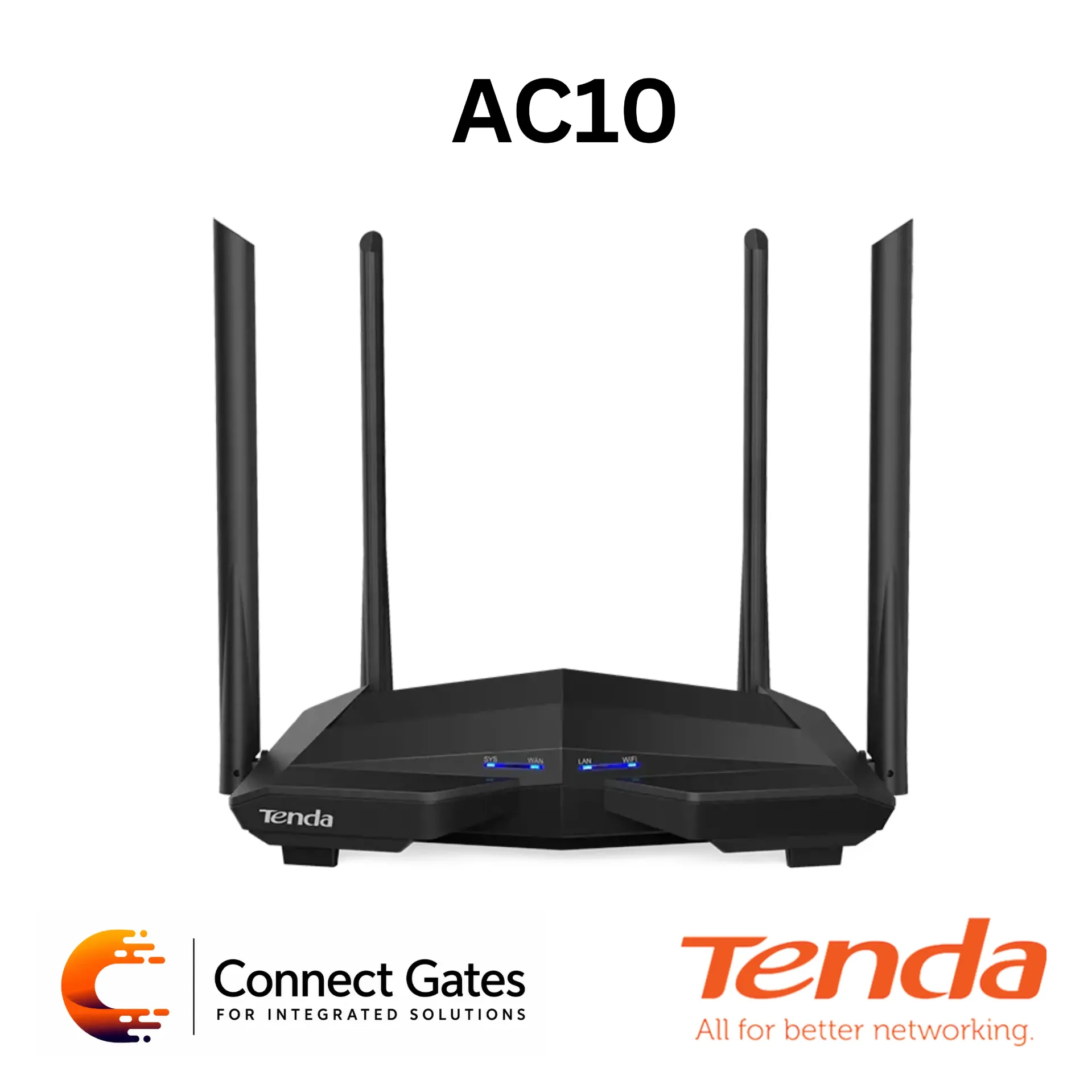

Tenda AC10 – AC1200 Smart Dual-Band Gigabit Wi-Fi Router with 1167Mbps Speed, 4 × 5dBi Antennas, MU-MIMO & Beamforming+
Overview:
• The Tenda AC10 is an AC1200 Smart Dual-Band Gigabit Wi-Fi Router designed for stable home internet, gaming, streaming, and multi-device wireless use
• It supports IEEE 802.11ac Wave 2.0 and provides dual-band wireless speed up to 1167Mbps, including 867Mbps on 5GHz and 300Mbps on 2.4GHz
• Equipped with 1 × Gigabit WAN port and 3 × Gigabit LAN ports for fast and stable wired internet connections
• Powered by a 1GHz CPU to provide responsive performance for multiple connected clients
• Supports MU-MIMO and Beamforming+ technologies to improve wireless stability, device capacity, and Wi-Fi coverage
• Features 4 external omni-directional antennas with high-power amplifiers to extend coverage and reduce Wi-Fi dead zones
• Includes Tenda WiFi App, Smart WiFi Schedule, parental control, guest network, IPTV, VPN, DDNS, bandwidth control, and remote web management features
Key Features:
• AC1200 Smart Dual-Band Gigabit Wi-Fi Router
• Up to 1167Mbps total wireless speed
• 867Mbps on 5GHz and 300Mbps on 2.4GHz
• IEEE 802.11ac Wave 2.0 support
• 1GHz CPU for fast performance
• 4 × 5dBi external dual-band antennas
• High-power amplifiers for wider coverage
• MU-MIMO technology
• Beamforming+ technology
• 1 × Gigabit WAN port
• 3 × Gigabit LAN ports
• Wireless Router Mode, Universal Repeater Mode, WISP Mode and AP Mode
• WPA-PSK / WPA2-PSK wireless security
• WPS fast encryption
• VPN Client and Server support
• Smart WiFi Schedule and Smart Power Saving
• Tenda Cloud and Tenda App support
• Guest Network, IPTV, DDNS and Remote Web Management
Technical Specifications:
• Brand: Tenda
• Model: AC10
• Product Type: AC1200 Smart Dual-Band Gigabit Wi-Fi Router
• Network Standards: IEEE 802.3, IEEE 802.3u
• Wireless Standards: IEEE 802.11ac/a/n 5GHz, IEEE 802.11b/g/n 2.4GHz
• Frequency Bands: Simultaneous dual-band 2.4GHz and 5GHz
• Data Rate: 5GHz up to 867Mbps, 2.4GHz up to 300Mbps
• Total Wireless Speed: Up to 1167Mbps
• Antenna: 4 × 5dBi External Dual-Band Antennas
• Interface: 1 × 10/100/1000Mbps WAN Port, 3 × 10/100/1000Mbps LAN Ports
• Button: 1 × WiFi On/Off Button, 1 × Reset/WPS Button
• LED Indicators: System, Internet, LAN, WiFi/WPS
• Power Input: AC 100–240V, 50/60Hz, 0.7A
• Power Output: DC 12V / 1.5A
• Wireless Security: WPA-PSK / WPA2-PSK, WPA / WPA2, Wireless Security Enable / Disable
• WPS: WiFi Protected Setup Fast Encryption
• Basic Wireless Features: SSID Broadcast Enable / Disable, Transmission Power High / Medium / Low, Beamforming, MU-MIMO
• Internet Connection Type: PPPoE, Dynamic IP, Static IP, PPPoE Russia, PPTP Russia, L2TP Russia
• Auto-Sensing Internet Connection: Supported
• PPPoE Account Clone: Supported
• Operating Modes: Wireless Router Mode, Universal Repeater Mode, WISP Mode, AP Mode
• DHCP: DHCP Server, DHCP Client List, DHCP Reservation
• Security Functions: Client Filter, Parental Control with blacklist and whitelist, Remote Web Management
• Virtual Server: Port Forwarding, DMZ Host, UPnP
• Firewall: UDP Flood Attack Defense, TCP Flood Attack Defense, Flood Attack Defense, WAN Ping Blocking
• DDNS: DynDNS, No-IP, 3322.org, Oray.com, 88ip
• VPN: IPsec Pass Through, PPTP Pass Through, L2TP Pass Through, PPTP Server, PPTP Client, L2TP Client
• Special Features: Smart WiFi Schedule, Smart Power Saving, Smart LED On/Off, Tenda Cloud, Tenda App
• Other Functions: Bandwidth Control, Guest Network, IPTV, MAC Clone, Static Routing, System Log, Backup & Restore Configurations, Online Firmware Upgrade, Firmware Upgrade via Browser
• Default Access: tendawifi.com
• Dimensions: 220 × 141.5 × 49mm
• Weight: 810g / 1.79lb
• Certifications: CE, FCC, RoHS, BSMI, NCC, EAC, C-tick, IC
• Operating Temperature: 0°C to 40°C
• Storage Temperature: -40°C to 70°C
• Operating Humidity: 10% to 90% RH non-condensing
• Storage Humidity: 5% to 90% RH non-condensing
• Package Contents: AC1200 Smart Dual-Band Gigabit WiFi Router, Power Adapter, Install Guide, Gigabit Ethernet Cable
Applications:
• Home dual-band Wi-Fi coverage
• Online gaming and 4K streaming
• Gigabit wired internet connection
• Multi-device wireless connectivity
• Small office internet sharing
• Universal Repeater and WISP network extension
• AP Mode deployment
• Guest Wi-Fi and parental control applications
• IPTV and VPN pass-through setup
Connect Gates Recommendation:
• Recommended by Connect Gates for home users who need an AC1200 dual-band router with Gigabit ports, strong wireless coverage, and smart app management
• Suitable for apartments, homes, and small offices that require stable Wi-Fi, smooth streaming, gaming support, parental control, and flexible operating modes
