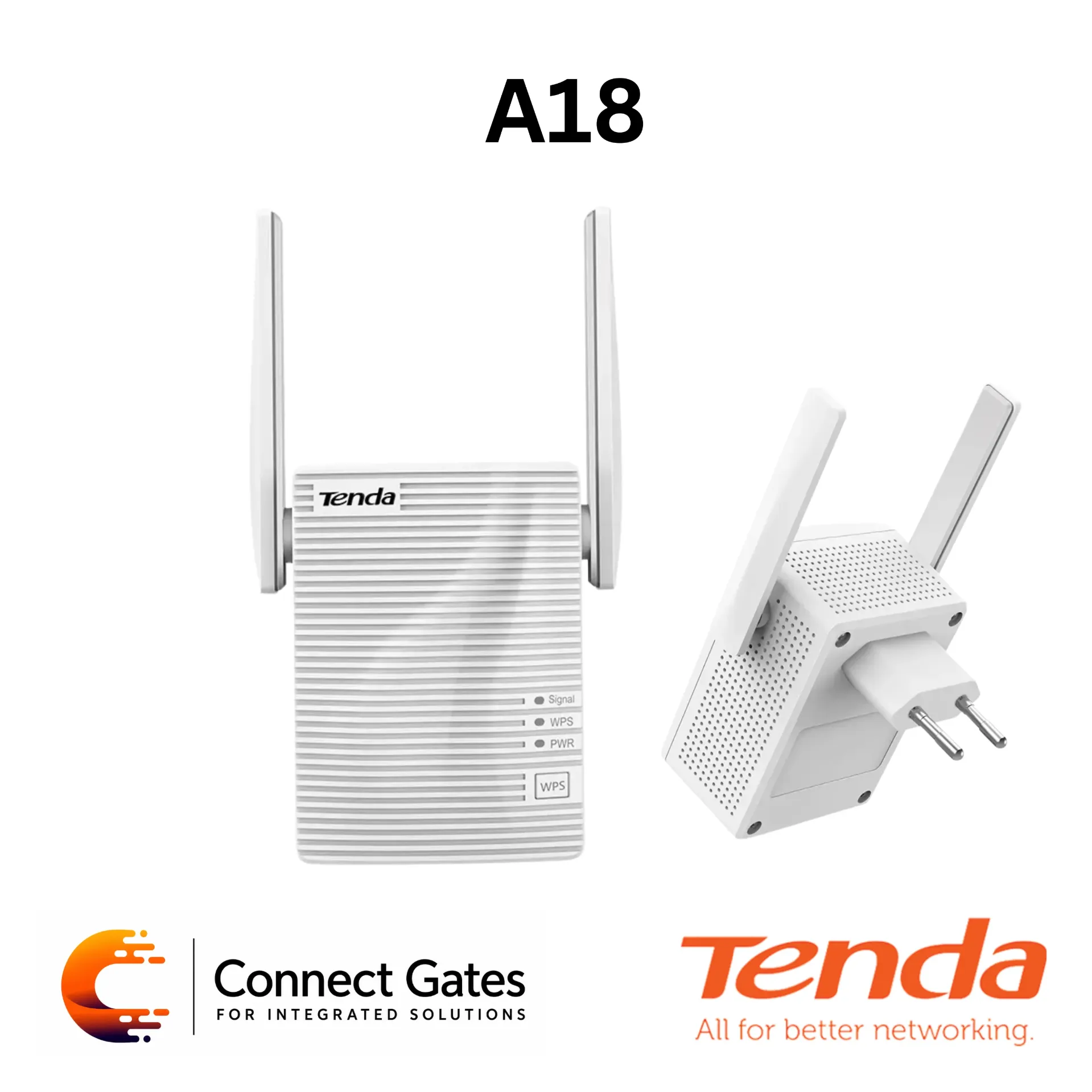

Tenda A18 – AC1200 Dual-Band Wi-Fi Range Extender with 1167Mbps Speed, Ethernet Port, 2 × 3dBi Antennas & AP Mode
Overview:
• The Tenda A18 is an AC1200 Dual-Band Wi-Fi Range Extender designed for medium and large homes, villas, and single-family houses
• It extends existing wireless networks and helps eliminate Wi-Fi blind zones for stronger coverage and faster internet experience
• Supports dual-band wireless speed up to 1167Mbps, including 867Mbps on 5GHz and 300Mbps on 2.4GHz
• Equipped with 2 × 3dBi dual-band antennas and 5GHz external FEMs to improve signal reception, transmission, and wall penetration
• Includes 1 × 10/100Mbps RJ45 Ethernet port, allowing the extender to work in Access Point Mode or provide wired connection for devices such as smart TVs, computers, cameras, and set-top boxes
• Intelligent LED helps users choose the best placement location by showing connection quality: Green for good, Yellow for fair, and Red when the extender should be moved closer to the router
• Supports Tenda App, web management, mobile browser page, online upgrade, factory reset, login password, LED indicator control, and reboot functions
Key Features:
• AC1200 Dual-Band Wi-Fi Range Extender
• Up to 1167Mbps total wireless speed
• 867Mbps on 5GHz and 300Mbps on 2.4GHz
• 2 × 3dBi dual-band antennas
• External FEMs for stronger 5GHz performance
• Extends existing Wi-Fi coverage
• Helps eliminate Wi-Fi blind zones
• Intelligent LED placement indicator
• 1 × 10/100Mbps RJ45 Ethernet port
• Repeater Mode and Access Point Mode
• Wireless-to-wired connection support
• Mix WPA-PSK / WPA2-PSK security
• Supports blacklist management
• Supports Hide SSID
• WPS and Reset button
• Tenda App, Web and Mobile Browser management
Technical Specifications:
• Brand: Tenda
• Model: A18
• Product Type: AC1200 Dual-Band Wi-Fi Range Extender
• Wireless Standards: IEEE 802.11ac/n/a 5GHz, IEEE 802.11n/b/g 2.4GHz
• Frequency Bands: 2.4GHz and 5GHz
• Data Rate: 5GHz up to 867Mbps, 2.4GHz up to 300Mbps
• Total Wireless Speed: Up to 1167Mbps
• Bandwidth: 11n 20/40MHz, 11ac 80MHz
• Wireless Modes: Repeater Mode, Access Point Mode
• Interface: 1 × 10/100Mbps RJ45 Port
• Antenna: 2 × 3dBi Dual-Band Antennas
• Button: 1 × WPS & Reset Button
• LED Indicator: 1 × LED
• Wireless Security: Mix WPA-PSK / WPA2-PSK
• Security Functions: Blacklist Management, Hide SSID
• Power Supply: 100–240V, 50/60Hz, 0.4A
• Dimensions: 72 × 32 × 161mm
• System Tools: LED Indicator Control, Online Upgrade, Factory Settings, Login Password, Reboot
• Management: Tenda App, Web, Mobile Browser Page
• Operating Temperature: 0°C to 40°C
• Storage Temperature: -40°C to 70°C
• Operating Humidity: 10% to 90% RH non-condensing
• Storage Humidity: 5% to 90% RH non-condensing
• Package Contents: AC1200 Dual-Band Wi-Fi Range Extender, Quick Installation Guide
Applications:
• Home Wi-Fi coverage extension
• Medium and large home wireless expansion
• Villa and single-family house Wi-Fi improvement
• Eliminating Wi-Fi blind zones
• AP Mode deployment through Ethernet cable
• Wireless-to-wired connection for smart TV, computer, camera, and set-top box
• Better 5GHz coverage for streaming and daily internet use
• Easy wall-plug Wi-Fi extension
Connect Gates Recommendation:
• Recommended by Connect Gates for users who need a stronger dual-band Wi-Fi extender with AC1200 speed, Ethernet port, and simple placement guidance
• Suitable for homes, villas, apartments, and offices where 2.4GHz and 5GHz Wi-Fi coverage needs to be extended with flexible Repeater or AP Mode installation
