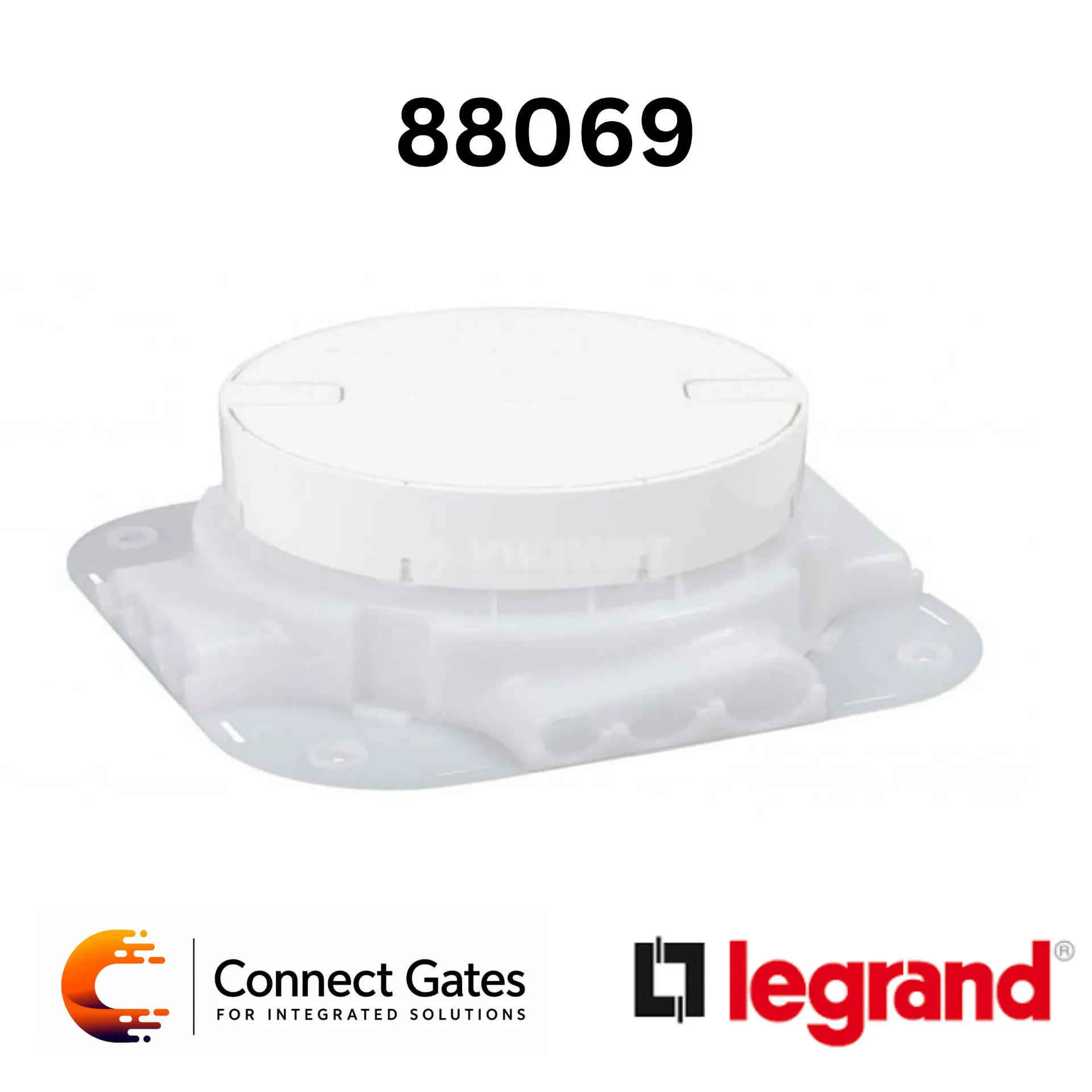

Legrand 088069 Back Box for IP66 Floor Box – 4 Modules, Screed Floor Installation.
Overview
Legrand 088069 is a back box designed for installing Legrand IP66 floor boxes 4 modules in screed floor applications. It is used with Legrand IP66 floor box models such as 088061 removable lid floor box and 088064 hinged lid floor box, and supports installation with conduits/pipes of Ø16mm, Ø20mm, and Ø25mm.
Key Features
• Original Legrand back box.
• Designed for IP66 Floor Boxes 4 Modules.
• Suitable for screed floor installation.
• Compatible with Legrand floor boxes 088061 and 088064.
• Supports pipes/conduits Ø16mm, Ø20mm, and Ø25mm.
• Supplied with protection lid for concrete pouring stage.
• Pre-marked conduit/cable inlets for easier installation.
• Suitable for professional floor power and data outlet systems.
Technical Specifications
• Brand: Legrand.
• Product Range: IP66 Floor Boxes.
• Model / Reference: 088069.
• Catalogue Reference: 0 880 69.
• Product Type: Back Box.
• Compatible Floor Box Capacity: 4 Modules.
• Installation Type: Screed Floor.
• Compatible Floor Boxes: 088061 / 088064.
• Conduit / Pipe Compatibility: Ø16mm / Ø20mm / Ø25mm.
• Minimum Concrete Thickness: 65mm.
• Dimensions: 220 x 220 x 97mm.
• Protection Lid: Included.
• Back Box Material: ABS & PP plastic materials.
• Installation Standard: For screed floor installation with IP66 floor box system.
• Related Standards: IEC 60670-1 / IEC 60670-23.
Applications
• Screed floor installation for Legrand IP66 floor boxes.
• Office floor service points.
• Meeting rooms and boardrooms.
• Commercial buildings.
• Hotels and hospitality projects.
• Showrooms and reception areas.
• Floor power and data points requiring protected embedded installation.
Connect Gates Recommendation
We recommend Legrand 088069 as the correct back box when installing Legrand IP66 4-module floor boxes in screed floors. It should be installed before the final floor finishing stage, with the protection lid closed during concrete pouring to prevent concrete from entering the box.
For best results, coordinate the back box location, conduit entry, minimum concrete thickness 65mm, and final floor covering level before installation.
