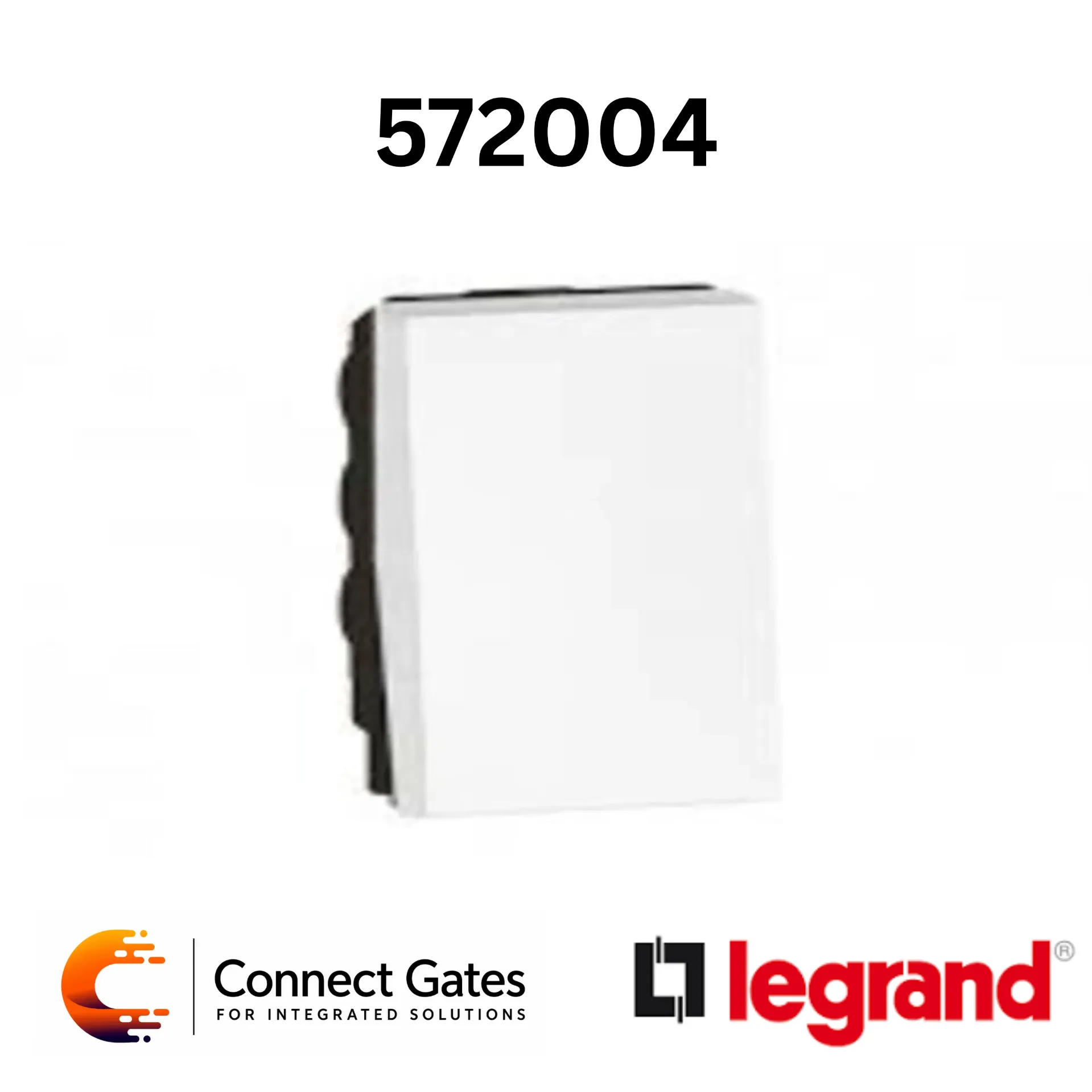

Legrand Arteor 5 720 04 1-Way Lighting Switch – 1 Module, White, Square, 10 AX, 250V.
Overview
Legrand Arteor 5 720 04 is a 1-way lighting switch from the Arteor 10 AX lighting controls range, designed for professional residential, commercial, and office electrical installations.
It comes in 1 module square format, white finish, and is supplied with a rocker plate.
The mechanism is suitable for flush-mounting or surface-mounting and must be equipped with the appropriate support frame and plate.
Key Features
• 1-way lighting switch.
• 1 module Arteor format.
• White finish.
• Square design.
• 10 AX rated current.
• 250V AC operating voltage.
• Supplied with rocker plate.
• Screw terminal connection.
• Flush-mounted or surface-mounted installation.
• Halogen-free and UV-resistant materials.
• Suitable for residential, office, hotel, and commercial lighting control.
Technical Specifications
• Brand: Legrand.
• Series: Arteor.
• Model Name: 5 720 04.
• Product Type: Lighting control switch.
• Switch Type: 1-way switch.
• Design: Square.
• Number of Modules: 1 module.
• Colour: White.
• Rated Current: 10 AX.
• Rated Voltage: 250V AC.
• Frequency: 50/60Hz.
• Maximum Power for Self-Ballasted Lamps: 100 W.
• Terminals: Screw terminals.
• Terminal Capacity: 2 x 2.5 mm² or 1 x 4 mm².
• Stripping Length: 10 mm.
• Screwdriver Type: 4 mm flat-blade up to 5.5 mm.
• Protection Rating: IP20 alone / IP40 mounted.
• Impact Protection: IK04.
• Rocker Material: PC.
• Mechanism Casing: PC.
• Basket Material: PP.
• Material Properties: Halogen-free, UV-resistant.
• Self-Extinguishing Rating: 850°C / 30 s for insulating parts holding live parts, 650°C / 30 s for other insulating components.
• Storage Temperature: -10°C to +70°C.
• Usage Temperature: -5°C to +50°C.
• Pull-Out Resistance: 200–226 N.
• Overall Dimensions: 45 x 22.5 x 42 mm.
Applications
• Residential lighting control.
• Office lighting switches.
• Hotel room lighting control.
• Commercial building electrical installations.
• Wall-mounted lighting control points.
• Arteor modular switch systems.
• Low-voltage lighting control circuits.
Connect Gates Recommendation
Recommended for professional Arteor installations that require a clean white 1 module lighting switch, 10 AX reliable switching performance, and a premium finish for residential, office, and commercial projects.
