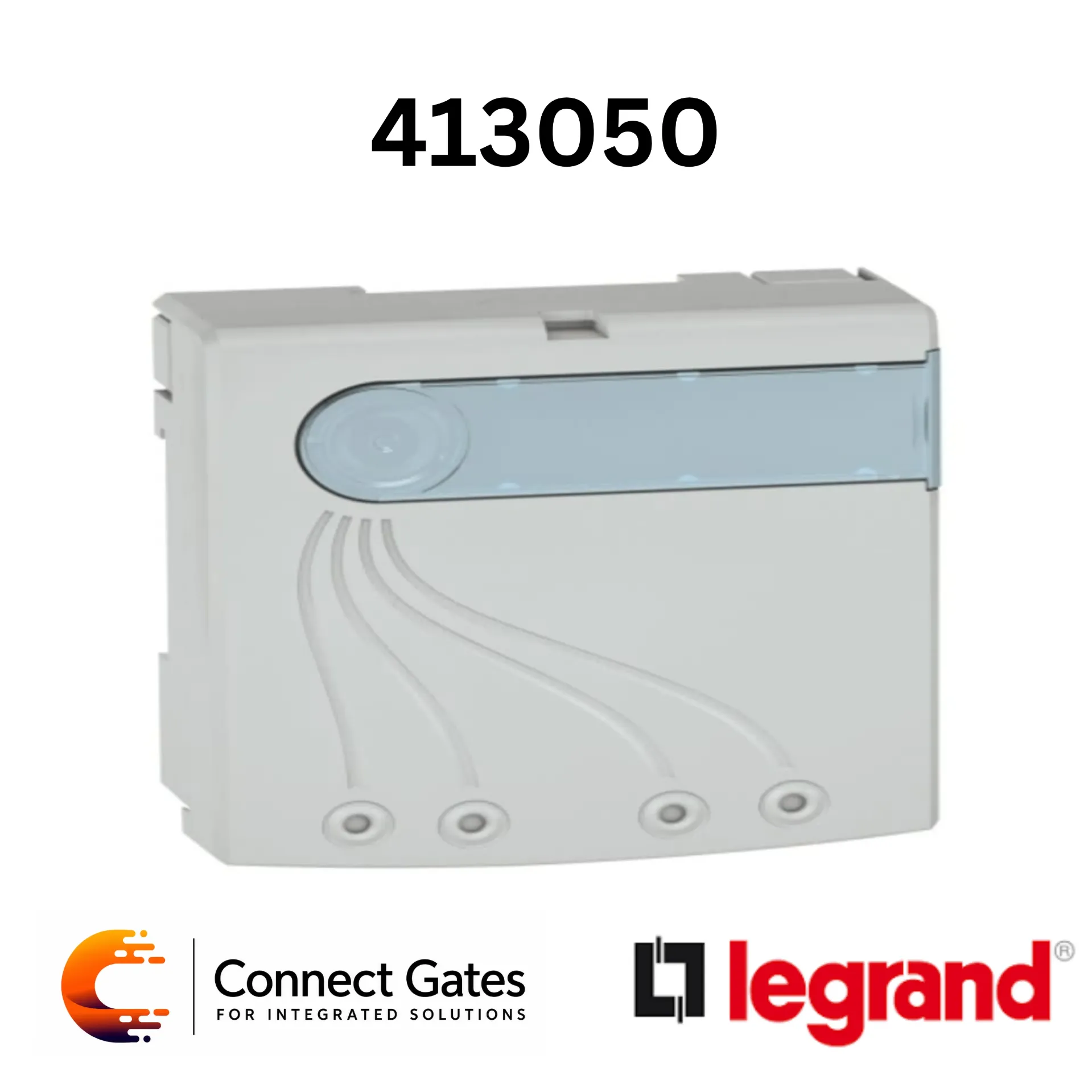

Legrand 4 130 50 Optical Telecommunications Outlet – FTTH OTO with 1 SC/APC Connector, DIN Rail / Wall Mount.
Overview:
Legrand 4 130 50 is an Optical Telecommunications Outlet (OTO) designed for FTTH networks. It acts as the interface point between the subscriber drop cable and the subscriber fibre cord, and comes with 1 SC/APC connector for singlemode fibre termination. It can be installed on a 35 mm DIN rail, wall, or skirting, making it suitable for residential, commercial, and telecom fibre installations. 413050_Datasheet_By_Connect_Gates.pdf
Key Features:
• FTTH optical telecommunications outlet.
• Equipped with 1 SC/APC connector.
• Connects the subscriber drop cable to the subscriber fibre cord.
• Suitable for 1 to 4 fibre capacity depending on configuration.
• Can be mounted on 35 mm DIN rail, wall, or skirting.
• Protects and holds fibre connectors securely in position.
• Allows fibre coiling on two separate levels.
• Supports heat-shrinkable protection or mechanical splices.
• Incoming cable can enter from any side or from the rear.
• Can be fixed without opening the casing.
• Protective flaps allow standard connectors to be used.
• External identification system for easy connector identification.
• Compact and clean design for FTTH and fibre outlet installations.
Technical Specifications:
• Brand: Legrand.
• Model Name: 4 130 50 / 413 050.
• Product Type: Optical Telecommunications Outlet.
• Application: FTTH Fibre Outlet / OTO.
• Connector Type: SC/APC.
• Number of Connectors: 1 SC/APC Connector.
• Fibre Capacity: 1, 2, or 4 x 900µm fibres.
• Connector Capacity: 2 SC Duplex or 2 SC Simplex connectors.
• Mounting Type: 35 mm DIN rail, wall, or skirting.
• Casing Material: ABS-PC.
• Color: RAL 9010.
• Overall Dimensions: 90 x 82 x 32 mm.
• Protection Index: IP44.
• Impact Resistance: IK05.
• Radius of Curvature: ≥ 15 mm.
• Cable Tensile Strength: ≥ 10 daN.
• Fixing Centres: 60 mm.
• Usage Temperature: +5°C to +40°C.
• Storage Temperature: -25°C to +70°C.
Applications:
• FTTH fibre termination points.
• Subscriber fibre outlet installations.
• Residential fibre optic networks.
• Commercial fibre outlet points.
• Telecom access networks.
• Communication panels and low-current cabinets.
• Wall-mounted or DIN rail fibre termination.
• FTTB and structured fibre optic installations.
Connect Gates Recommendation:
Recommended for FTTH and subscriber fibre installations requiring a compact SC/APC optical telecommunications outlet with secure connector protection, flexible mounting options, and clean fibre coiling inside the outlet.
