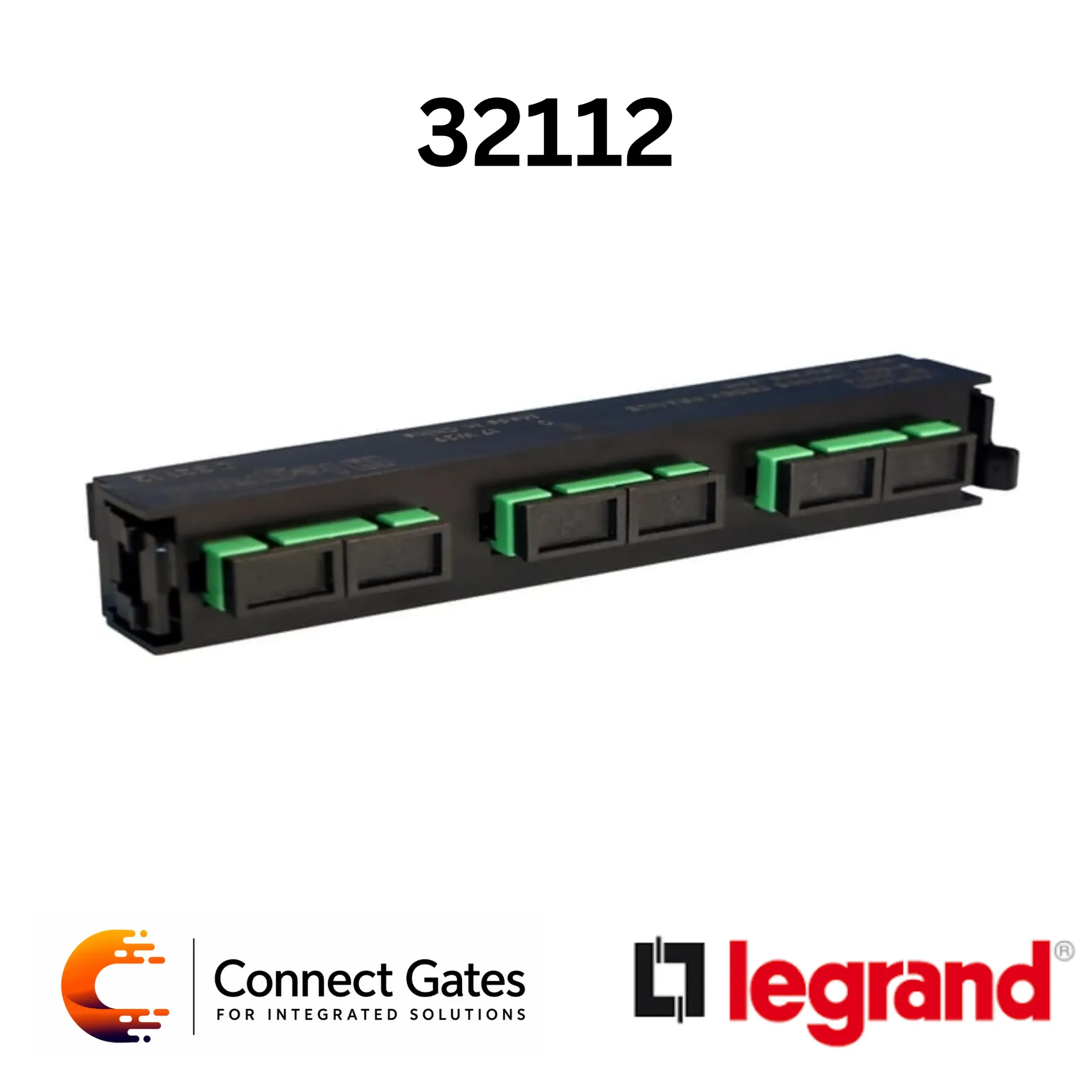

Legrand 0 321 12 SC APC Duplex Fibre Optic Unit – 6 Singlemode Fibres for 19” Modular Fibre Drawers / Linkeo C Series.
Overview:
Legrand 0 321 12 is an SC APC duplex fibre optic unit designed for 6 singlemode fibres. It is used with Legrand 19” modular fibre optic drawers and compatible fibre cassette systems, providing clean and reliable optical fibre termination for telecom rooms, data cabinets, backbone links, FTTB, FTTH, and low-current fibre installations. 32112_Datasheet_By_Connect_Gates.pdf
Key Features:
• SC APC duplex fibre optic unit.
• Supports 6 singlemode fibres.
• Designed for Legrand modular fibre optic drawer and cassette systems.
• Suitable for 19” fibre optic rack installations.
• Compatible with Linkeo C Series fibre optic panel solutions.
• Can be used with compatible cassette housing systems.
• Professional fibre termination for rack and cabinet applications.
• Supports high-performance singlemode optical network connections.
• Suitable for telecom, data center, FTTB, FTTH, and structured fibre projects.
• Compact modular design for easy installation and maintenance.
Technical Specifications:
• Brand: Legrand.
• Model Name: 0 321 12.
• Product Type: Fibre Optic Unit / Fibre Block.
• Connector Type: SC APC Duplex.
• Fibre Type: Singlemode.
• Fibre Capacity: 6 Fibres.
• Adapter Format: SC Duplex.
• Installation Type: Modular fibre optic drawer / cassette housing installation.
• Compatible Drawer System: Legrand 19” modular fibre optic drawers.
• Compatible Linkeo C System: Fibre block used with cassette housing.
• Unit Width: 108.8 mm.
• Unit Height: 23 mm.
• Unit Depth: 33.3 mm.
• Approx. Weight: 50 g.
• Connector Durability: 500 connection / disconnection cycles.
• SC Connector Standard: IEC 61754-4.
• System Standards: ISO/IEC 11801, EN 50173, ANSI/TIA 568.
• Storage & Operating Temperature: -10°C to +60°C.
Applications:
• Fibre optic rack termination.
• Singlemode backbone network connections.
• Telecom room fibre distribution.
• Data center fibre patching.
• FTTB and FTTH access networks.
• Server room optical fibre organization.
• Low-current and ELV fibre optic projects.
• Structured cabling fibre systems.
Connect Gates Recommendation:
Recommended for projects requiring a professional SC APC duplex singlemode fibre termination unit inside Legrand modular fibre optic drawers or Linkeo C fibre cassette systems, especially where clean rack organization and reliable optical performance are required.
