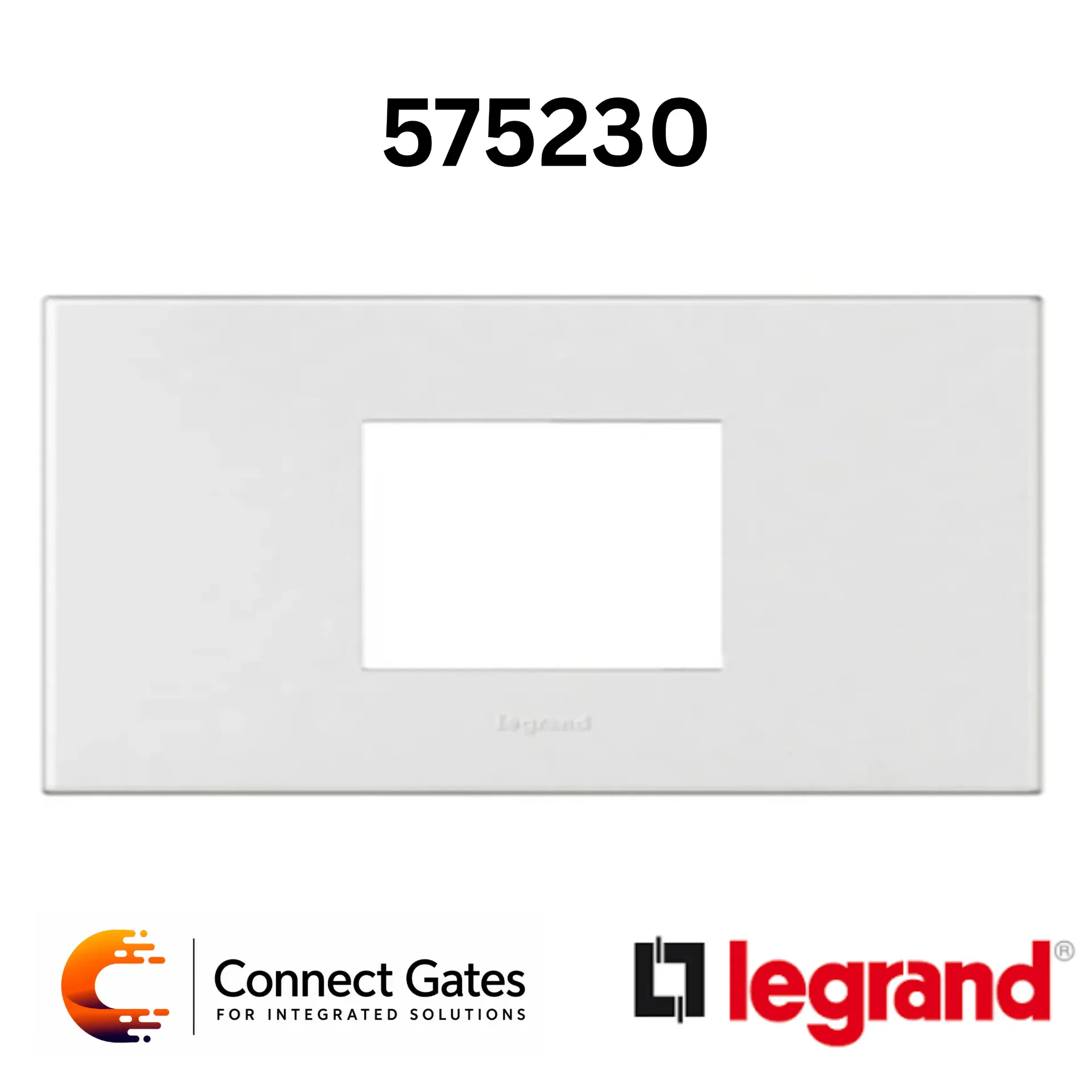

Legrand Arteor 5 752 30 White Plate for Italian Standard – 2 Modules, Square, Clip Fixing.
Overview
Legrand Arteor 5 752 30 is a 2 modules square white plate designed for Italian standard Arteor installations.
It is used for covering Arteor mechanisms and provides a clean professional finish for electrical, data, AV, and low-current wall points.
The plate uses clip fixing, is made from polycarbonate, and can be removed easily with a screwdriver when required.
Key Features
• Arteor white plate for Italian standard.
• 2 modules size.
• Square design.
• White finish.
• Clip fixing method.
• Designed for covering Arteor mechanisms.
• Polycarbonate front plate and under plate.
• IK04 impact resistance.
• Easy removal with screwdriver.
• Protection film to be removed after site work completion.
• Suitable for professional residential and commercial finishing.
Technical Specifications
• Brand: Legrand.
• Series: Arteor.
• Model Name: 5 752 30.
• Product Type: Cover plate.
• Standard: Italian standard.
• Plate Type: Square plate.
• Number of Modules: 2 modules.
• Colour: White.
• Fixing Method: With clips.
• Weight: 41.5 g.
• Front Plate Material: Polycarbonate.
• Under Plate Material: Polycarbonate.
• Impact Protection: IK04.
• Overall Plate Dimensions: 127 x 92 mm.
• Module Opening Size: A 45.4 mm x B 45.4 mm.
• Plate Thickness: 7.7 mm.
• Storage Temperature: -10°C to +70°C.
• Operating Temperature: -5°C to +50°C.
• Cleaning: Surface cleaning with cloth only.
• Chemical Resistance: Resistant to hexane, methylated spirits, soapy water, and glass cleaning substances.
• Hospital-Type Cleaning Resistance: Resistant to Anios, Surfanios, Bactilysine, and hydrogen peroxide 30%.
• Special Use Note: Arteor plates must not be painted.
Applications
• Arteor Italian standard wall installations.
• Electrical switch finishing.
• Socket and low-current outlet finishing.
• Residential projects.
• Commercial buildings.
• Office installations.
• Hotel room electrical accessories.
• Data, TV, HDMI, and network outlet finishing.
Connect Gates Recommendation
Recommended for Arteor projects that require a clean white 2 modules Italian standard plate, secure clip fixing, and a professional finish for electrical, data, AV, and low-current wall mechanisms.
