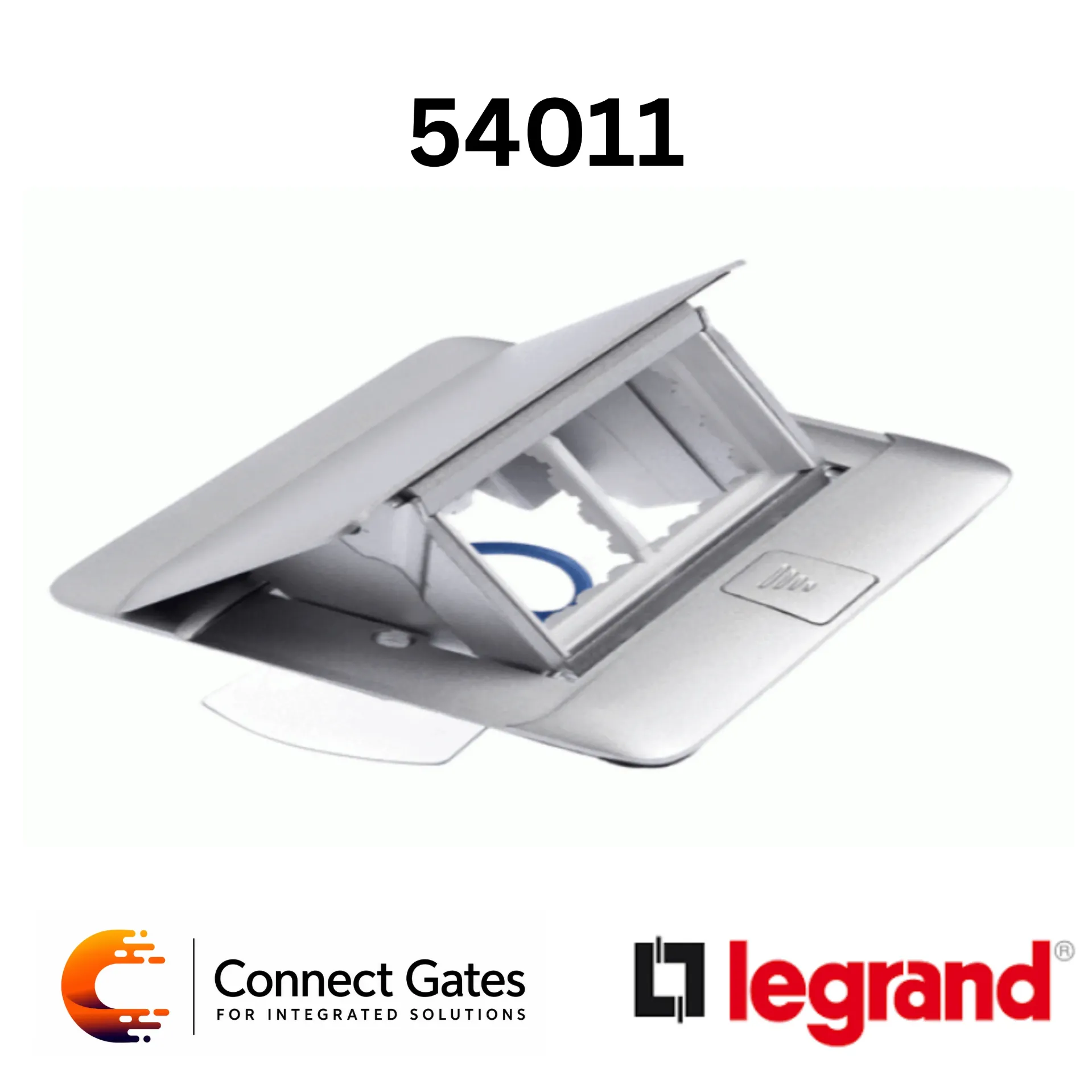

Legrand Pop-Up Floor 054011 – 4 Modules, Matt Aluminium, for Mosaic Wiring Devices.
Overview
Legrand 054011 is a Pop-Up floor unit designed for integrating wiring accessories into raised floors or concrete floors. It comes in Matt Aluminium finish, supports 4 modules, and is designed to be equipped with Legrand Mosaic functions, including power, data, and audio/video devices depending on the installation requirement.
Key Features
• Original Legrand Pop-Up floor unit.
• 4 modules capacity.
• Matt Aluminium finish for a clean and modern floor installation.
• Designed for raised floor and concrete floor applications.
• Compatible with Legrand Mosaic wiring devices.
• Suitable for power, data Cat6, and audio/video applications in raised floor installations.
• Safety locking system when closed and when open.
• Screws delivered with the Pop-Up unit.
• Suitable for professional floor service points in offices, meeting rooms, and commercial areas.
Technical Specifications
• Brand: Legrand.
• Product Range: Pop-Up Floor.
• Model / Reference: 054011.
• Catalogue Reference: 0 540 11.
• Product Type: Floor Pop-Up Unit.
• Finish: Matt Aluminium.
• Module Capacity: 4 Modules.
• Device Compatibility: Legrand Mosaic functions.
• Installation Type: Raised floor or concrete floor.
• Maximum Power: 16A / 250V AC.
• Maximum Load: 3680W at 230V per circuit.
• Rated Voltage: 250V AC.
• Lid Dimensions: 120 x 142.5mm.
• Empty Pop-Up Dimensions: 102.3 x 114.5 x 57 x 77.5mm.
• Impact Resistance: IK07.
• Protection Rating: IP30 open / IP40 closed.
• Vertical Load Resistance: 1500N open / 3000N closed.
• Electric Strength: 2000V.
• Insulation Resistance: R > 5MΩ at 500V.
• Material: Halogen-free, fire-proofed, non-flame propagating material.
• Finish Material: Aluminium material.
• Earthing: Mandatory.
• Standards: NFC 61-314 / EN 60670-1 / EN 60670-23.
Applications
• Office floor power and data points.
• Meeting rooms and conference rooms.
• Commercial buildings.
• Showrooms and reception areas.
• Workstations requiring floor access to power and data.
• Raised floor installations.
• Concrete floor installations with suitable back boxes.
• Floor service points requiring a compact 4-module configuration.
Connect Gates Recommendation
We recommend Legrand Pop-Up Floor 054011 for projects that need a professional and compact floor outlet solution with more capacity than the 3-module version. Its 4-module capacity makes it suitable for practical combinations such as 2 power sockets or 1 power socket with 2 RJ45 data outlets, making it ideal for offices, meeting tables, workstations, and commercial spaces.
The Matt Aluminium finish gives a clean premium look, while the Pop-Up safety locking mechanism helps keep the floor point protected and organized when not in use.
