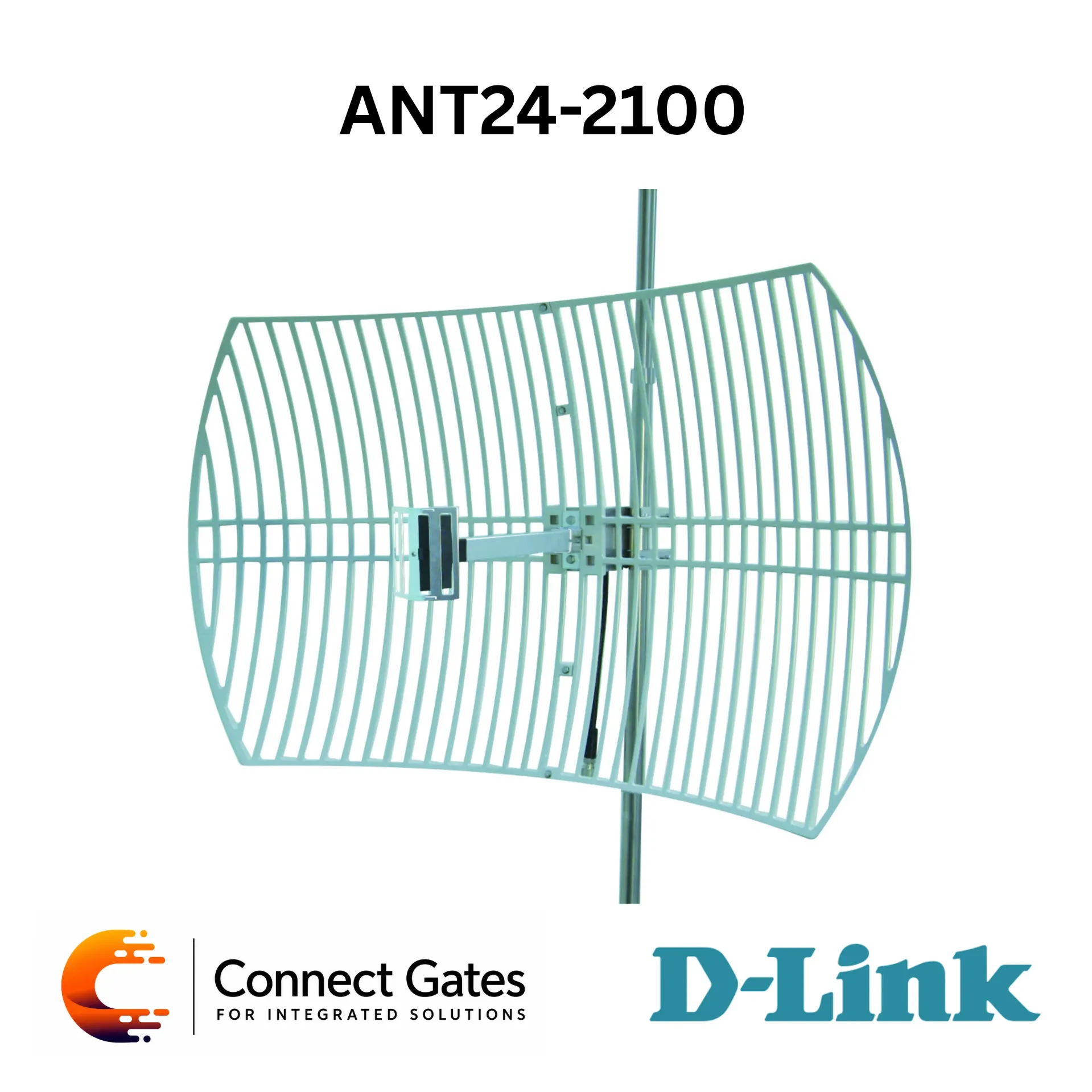

D-Link ANT24-2100 – 21dBi Outdoor Grid Directional Antenna for 2.4GHz Wireless Links with Vertical Polarization, 50Ω Impedance, DC Ground Lightning Protection & 216km/hr Wind Resistance
Overview:
• The D-Link ANT24-2100 is a 21dBi Outdoor Grid Directional Antenna designed for 2.4GHz wireless outdoor applications.
• It operates within the 2400MHz to 2500MHz frequency range, making it suitable for 2.4GHz wireless bridge, outdoor access point, and long-distance wireless link deployments.
• The antenna provides 21dBi gain, helping extend wireless coverage and improve directional signal performance.
• It features linear vertical polarization, 50-ohm impedance, and a maximum VSWR of 1.7:1.
• The antenna has a narrow beamwidth with 10° horizontal HPBW and 12° vertical HPBW, making it suitable for focused point-to-point outdoor wireless links.
• It is built for outdoor environments with survival wind speed up to 216km/hr and DC ground lightning protection.
Key Features:
• Outdoor grid directional antenna.
• Designed for 2.4GHz wireless applications.
• Frequency range from 2400MHz to 2500MHz.
• High antenna gain of 21dBi.
• Directional antenna design for focused wireless links.
• Linear vertical polarization.
• 50-ohm impedance.
• VSWR 1.7:1 maximum.
• Horizontal HPBW 10°.
• Vertical HPBW 12°.
• Suitable for long-distance wireless transmission.
• Suitable for outdoor wireless bridge applications.
• Supports point-to-point outdoor wireless links.
• Survival wind speed up to 216km/hr.
• DC ground lightning protection.
• Designed for professional outdoor wireless deployment.
Technical Specifications:
• Product Type: Outdoor Grid Directional Antenna
• Brand: D-Link
• Model: ANT24-2100
• Antenna Type: Grid Directional Antenna
• Frequency Range: 2400MHz to 2500MHz
• Wireless Band: 2.4GHz
• Gain: 21dBi
• VSWR: 1.7:1 Maximum
• Polarization: Linear, Vertical
• HPBW Horizontal: 10°
• HPBW Vertical: 12°
• Impedance: 50 Ohms
• Survival Wind Speed: 216km/hr
• Lightning Protection: DC Ground
• Application Type: Outdoor Directional Wireless Antenna
• Recommended Use: 2.4GHz outdoor bridge and long-distance wireless link applications
Applications:
• Outdoor 2.4GHz wireless bridge links.
• Point-to-point wireless transmission.
• Long-distance outdoor Wi-Fi links.
• Wireless backhaul applications.
• CCTV wireless transmission projects.
• Outdoor access point antenna upgrade.
• Factory, warehouse, campus, farm, and remote site connectivity.
• Directional wireless coverage between buildings.
• Installations requiring focused wireless signal direction.
• Outdoor environments requiring high wind resistance and lightning protection.
Connect Gates Recommendation:
• Recommended for outdoor 2.4GHz point-to-point wireless projects that require strong directional gain and focused signal coverage.
• Suitable for wireless bridge links, CCTV backhaul, remote building connectivity, campus links, farms, warehouses, and outdoor long-distance wireless applications.
• Best used when the client needs 21dBi directional gain, 2.4GHz operation, narrow beamwidth, 50-ohm impedance, DC ground lightning protection, and high wind resistance.
• Connect Gates recommends proper antenna alignment, clear line-of-sight, surge protection, grounding, and compatible D-Link outdoor wireless equipment for stable performance.
