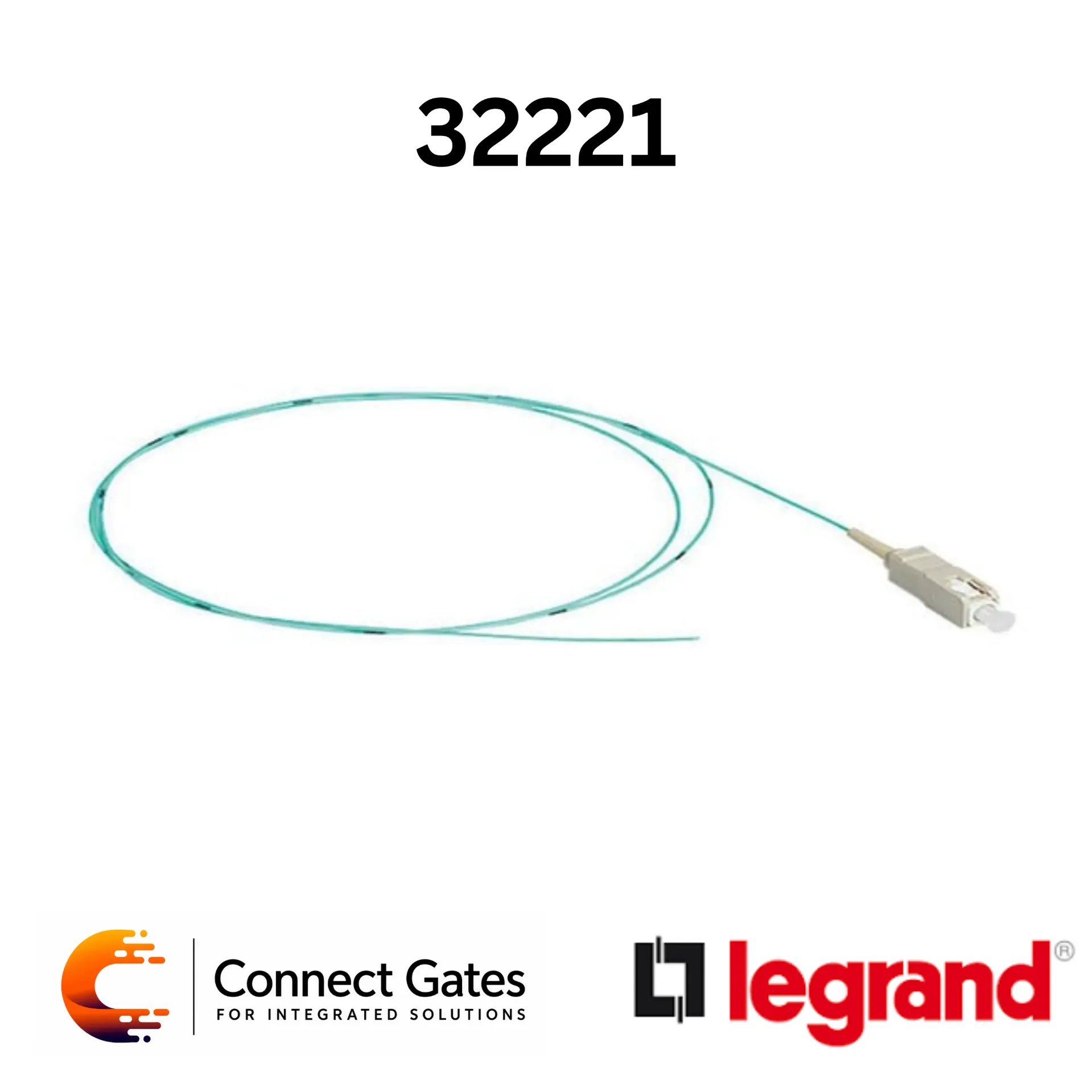

Legrand LCS3 0 322 21 LC PC OM3 Multimode Fibre Optic Pigtail – 50/125 μm, 1M, Core Performance, LSZH
Overview:
• Legrand 0 322 21 is an LC PC OM3 multimode fibre optic pigtail designed for high-speed fibre network connections such as Ethernet, Fast Ethernet, and Gigabit Ethernet. It comes with 50/125 μm OM3 fibre, 1 meter length, LSZH sleeve, and Core performance connector for reliable optical performance inside racks, drawers, patch panels, and telecom/datacom installations. 32221_Datasheet_By_Connect_Gates.pdf
Key Features:
• LC PC fibre optic pigtail for professional fibre termination.
• OM3 multimode 50/125 μm fibre type.
• 1 meter length suitable for internal rack and patch panel connections.
• LSZH sleeve for low smoke and zero halogen safety.
• Core performance connector for stable optical transmission.
• Suitable for Ethernet, Fast Ethernet, Gigabit Ethernet, telecom, datacom, and internal rack interconnections.
• 100% factory tested optical performance.
Technical Specifications:
• Model Name: 0 322 21.
• Brand: Legrand.
• Series: LCS3 Fibre Optic.
• Product Type: Fibre Optic Pigtail.
• Connector Type: LC PC.
• Fibre Type: OM3 Multimode 50/125 μm.
• Length: 1 Meter.
• Sleeve Type: LSZH – Low Smoke Zero Halogen.
• Performance Range: Core.
• Nominal Sleeve Diameter: 900 ± 50 μm.
• Operating Temperature: -20°C to +60°C.
• Maximum Tensile Load: 5 N.
• Cable Color: Aqua.
• LC Connector Standard: IEC 61754-20.
• Typical Insertion Loss / Master: 0.10 dB.
• Max Insertion Loss / Master: 0.25 dB.
• Return Loss: >35 dB for length ≥ 1m.
• OM3 Attenuation: ≤2.5 dB/km @ 850 nm, ≤0.8 dB/km @ 1300 nm.
• OM3 Bandwidth: ≥1500 MHz.km @ 850 nm, ≥500 MHz.km @ 1300 nm.
Applications:
• Fibre optic patch panels and ODF installations.
• Internal rack and drawer interconnections.
• Telecom and datacom networks.
• Ethernet, Fast Ethernet, and Gigabit Ethernet networks.
• Professional low-current and network infrastructure projects.
Connect Gates Recommendation:
• Recommended for professional fibre termination inside network racks and patch panels where OM3 multimode performance, LC connectivity, and LSZH safety are required.
